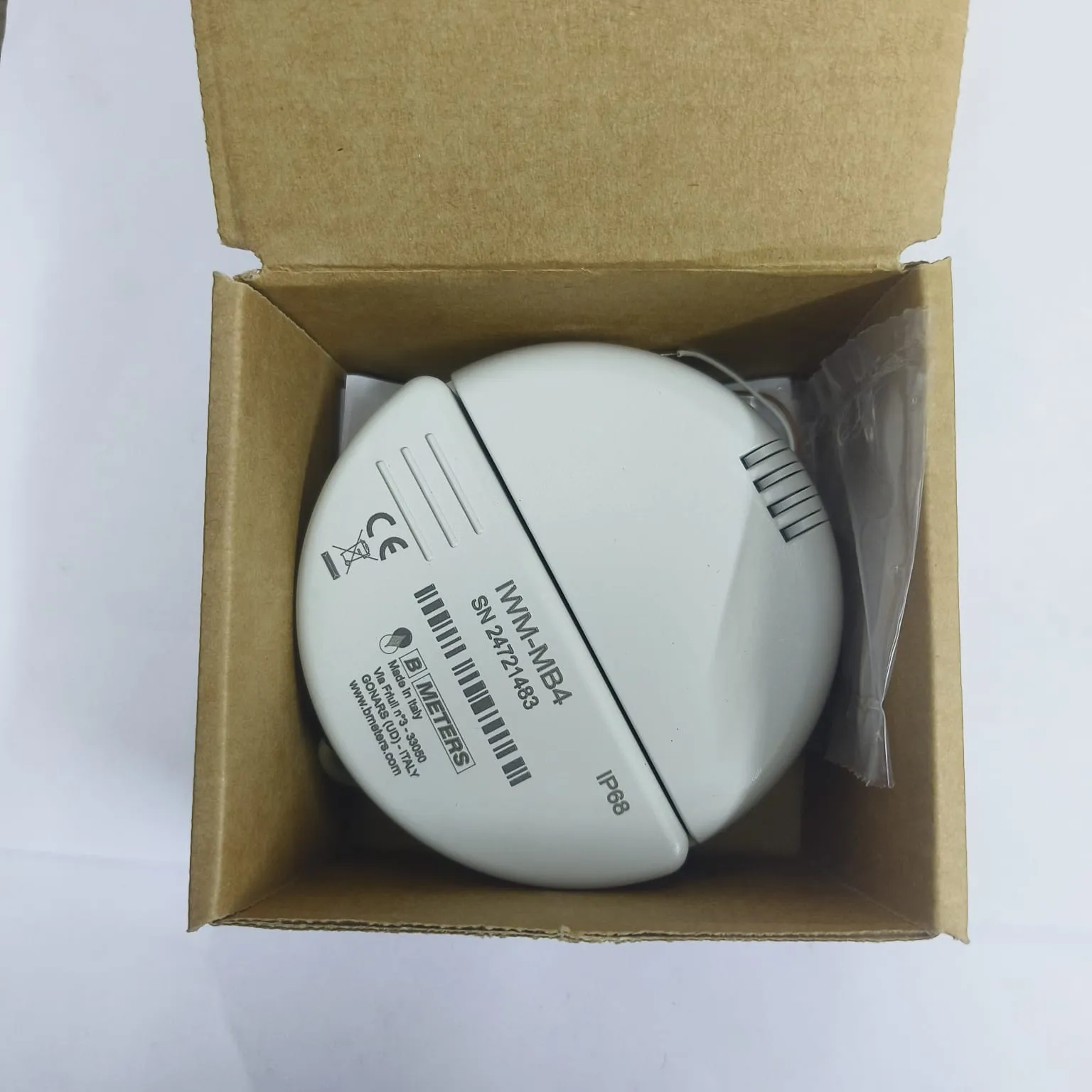

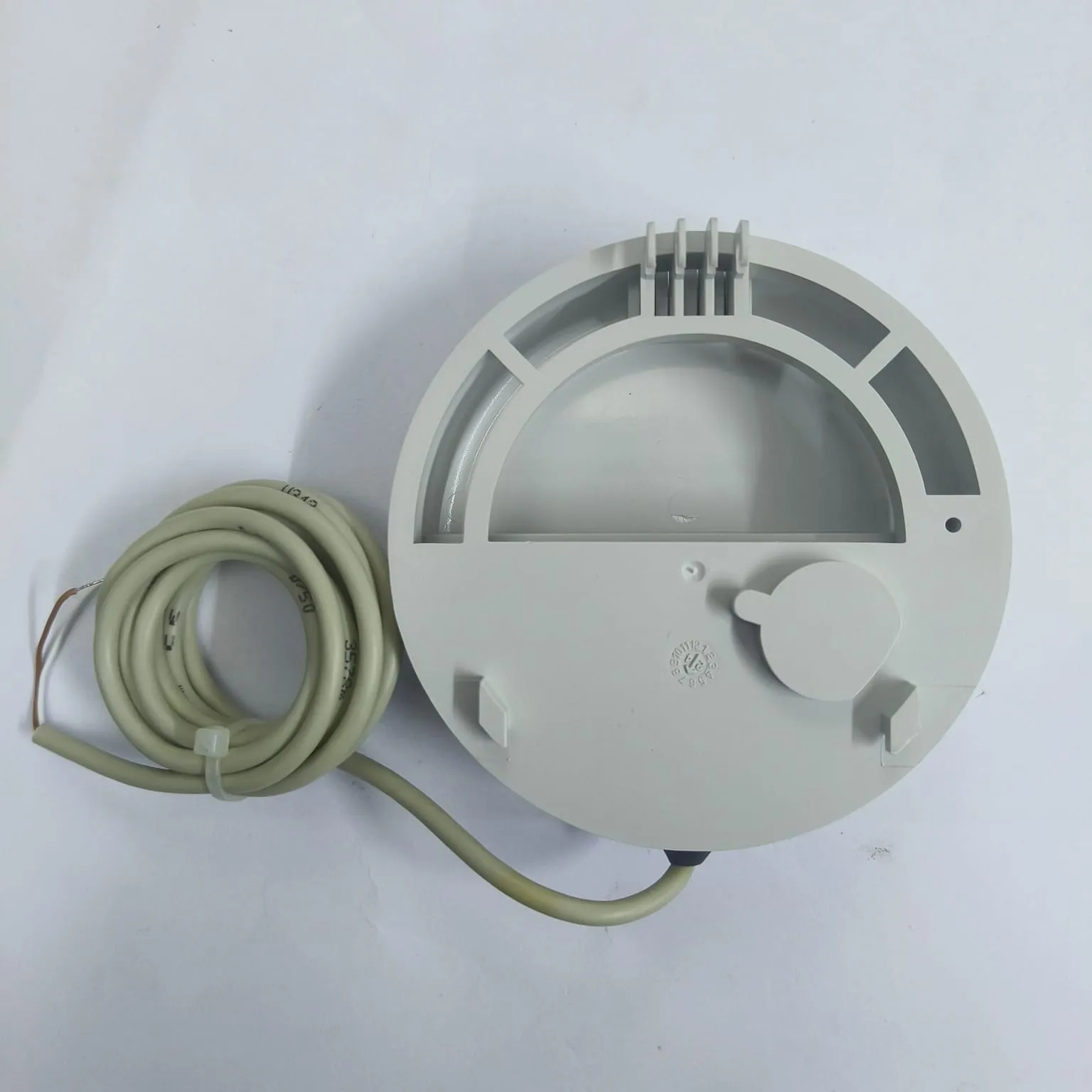

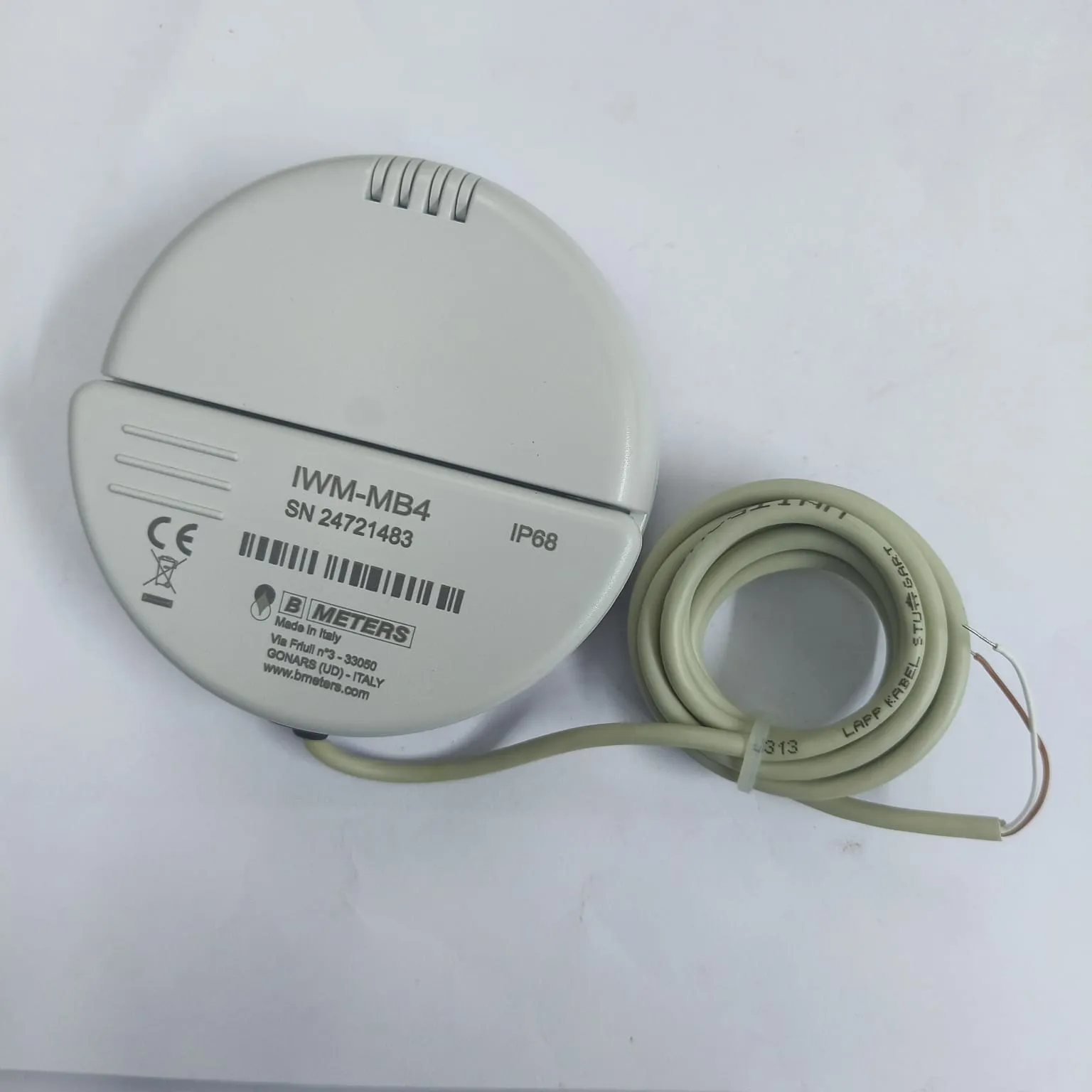

BMETERS Wired M-BUS Communication Module for WDE-K50 Water Meters, 1.5 m Cable, IP68, IWM-MB4
All BMETERS products
BMETERS Water Meter Accessories & Modules
All Water Meter Accessories & Modules (every brand)
Technical overview
The BMETERS IWM-MB4 is a wired M-BUS communication module with 1.5 meter cable, developed for remote reading of pre-equipped BMETERS WDE-K50 Woltmann water meters through an inductive interface. It communicates via MBUS EN13757-2/3 protocol, offers IP68 protection, and includes NFC support for configuration and commissioning through a compatible smartphone app. The module supports consumption data and alarms, while supporting reverse flow compensation, leakage detection, discharged battery indication, module removal alarm and magnetic tampering detection for dependable smart metering integration. The module is supplied with a compact IP68 sealed housing for harsh environments and a non-replaceable rechargeable lithium battery for BUS-backed operation, the housing material itself is not specified in the manufacturer datasheet.
Key Features
- Wired M-BUS module for pre-equipped WDE-K50 Woltmann water meters
- 1.5 meter cable with MBUS EN13757-2/3 communication protocol
- Inductive interface helps prevent magnetic fraud and resists pipe vibration influence
- IP68 rated housing with NFC configuration support
- Records consumption data, alarms, reverse flow and leakage events
- Made in Italy
Applications
- Commercial and industrial remote meter reading
- Utility consumption monitoring and data collection
- Wired M-BUS building and site metering systems
- Smart water metering networks using Woltmann meters
Specifications
Module TypeWired M-BUS Module
Communication ProtocolMBUS EN13757-2/3
Cable Length1.5 m
Compatible Meter ModelWDE-K50
Power SupplyRechargeable Lithium Battery
Backup FunctionMeasuring Backup Without BUS Voltage
Ingress ProtectionIP68
Ambient Temperature Range+1...50°C
Maximum Reading Error0.5%
Configuration MethodNFC via Android App
