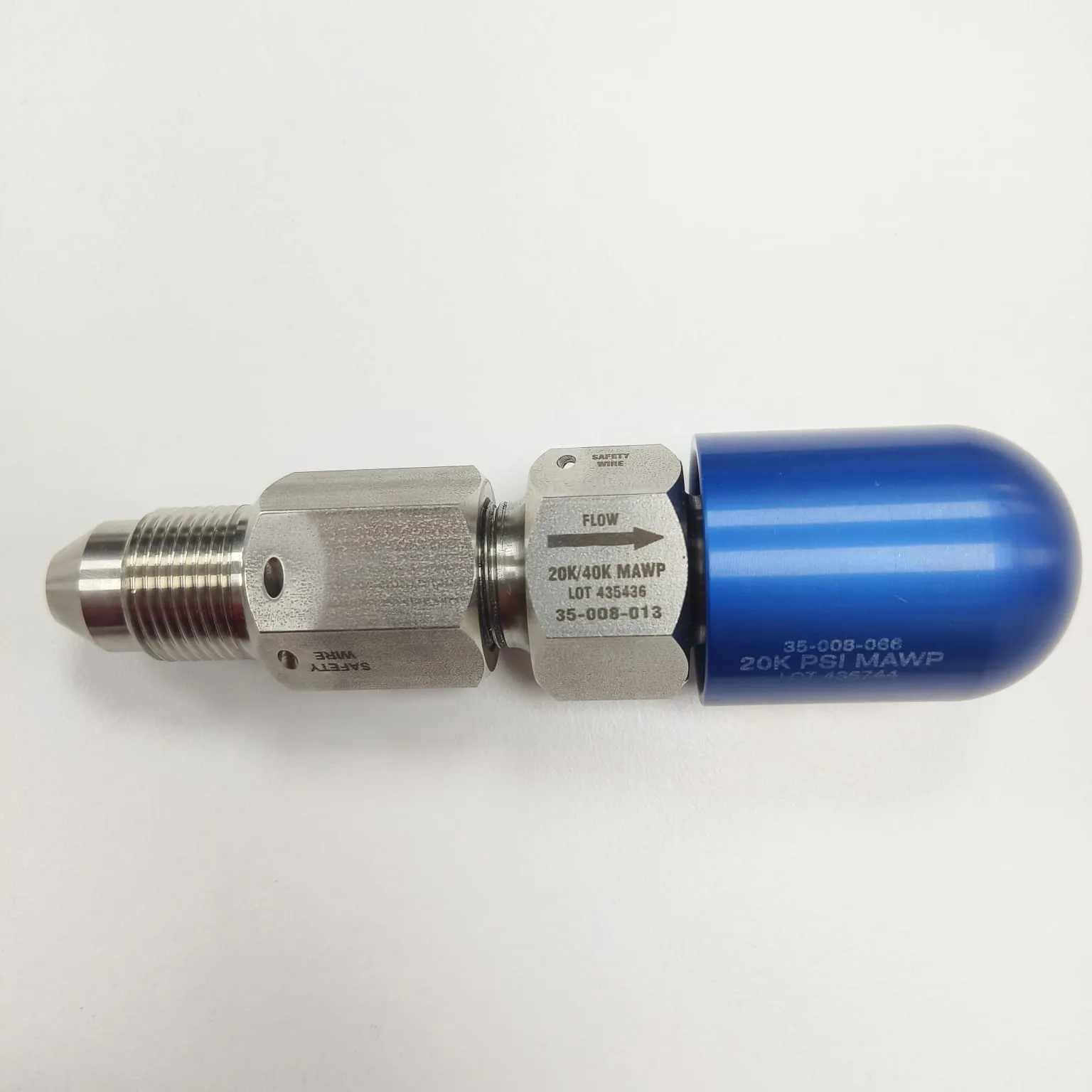

Advanced Pressure Systems (APS) Rupture Disc Holder Assembly, 9/16" MP, Max Burst Pressure 20000 PSI, 35-008-010

Name: Advanced Pressure Systems (APS) Rupture Disc Holder Assembly 9/16 MP Max Burst Pressure 20000 PSI 35-008-010
Brand: Advanced Pressure Systems (APS)
SKU: 35-008-010
Price: 180.000 KWD
Availability: InStock

Advanced Pressure Systems (APS) Rupture Disc Holder Assembly, 9/16" MP, Max Burst Pressure 20000 PSI, 35-008-010 - image 2

Advanced Pressure Systems (APS) Rupture Disc Holder Assembly, 9/16" MP, Max Burst Pressure 20000 PSI, 35-008-010 - image 3

Advanced Pressure Systems (APS) Rupture Disc Holder Assembly, 9/16" MP, Max Burst Pressure 20000 PSI, 35-008-010 - image 4

Advanced Pressure Systems (APS) Rupture Disc Holder Assembly, 9/16" MP, Max Burst Pressure 20000 PSI, 35-008-010 - image 5

Advanced Pressure Systems (APS) Rupture Disc Holder Assembly, 9/16" MP, Max Burst Pressure 20000 PSI, 35-008-010 - image 6

Mfg. Part No. : 35-008-010

SKU : RUPT-DISC-ASSY-20K-35-008-010

Brand :

Heavy-duty GDWJ-style rupture disc holder with 20,000 psi capacity, built for 9/16" MP connections. Designed for extreme pressure venting in industrial blasting applications.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all

Quantity

In Stock · 2 available

Shipping calculated at checkout. Log in for an estimate.

Description

Specifications

Downloads

Description

Advanced Pressure Systems (APS) 35-008-010 — Advanced Pressure Systems (APS) Rupture Disc Holder Assembly, 9/16" MP, Max Burst Pressure 20000 PSI, 35-008-010. Stocked by Indspare for Kuwait and GCC delivery.

APS’s 20K GDWJ-Style Rupture Disc Holder is tailored for systems requiring precise and durable over-pressure protection. With a 9/16" MP male fitting, the assembly supports up to 20,000 psi and uses a GDWJ-style domed rupture disc (77512003). The blue-coded safety shroud, stainless steel build, and Buna-N seal ensure safety, visibility, and longevity. This unit is field-friendly and tool-free, suitable for intense service environments such as hydro-blasting, pressure testing, or offshore equipment protection.

Key Features

• Rated for 20,000 psi maximum pressure

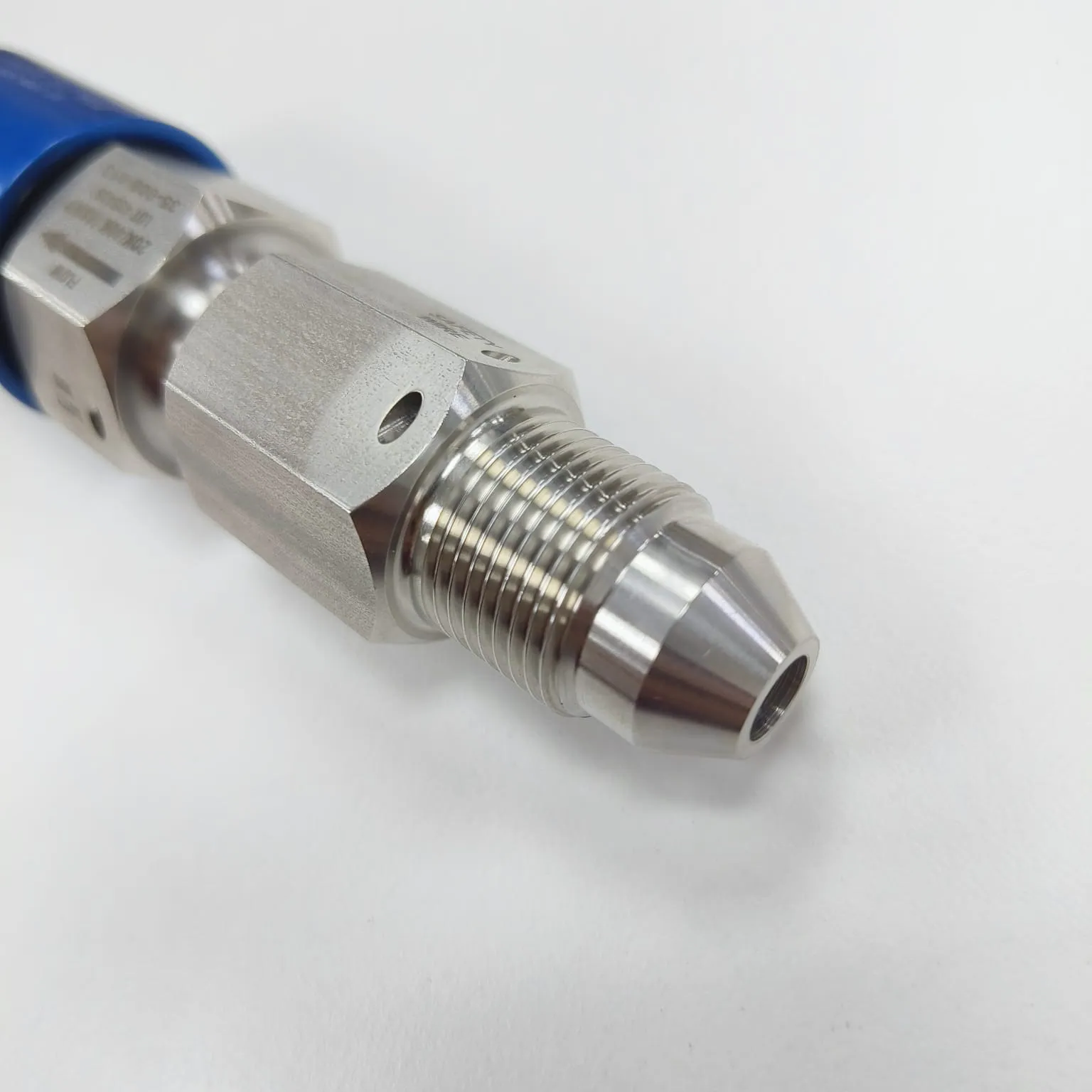

• 9/16" MP threaded connection

• GDWJ-style seating (disc 77512003)

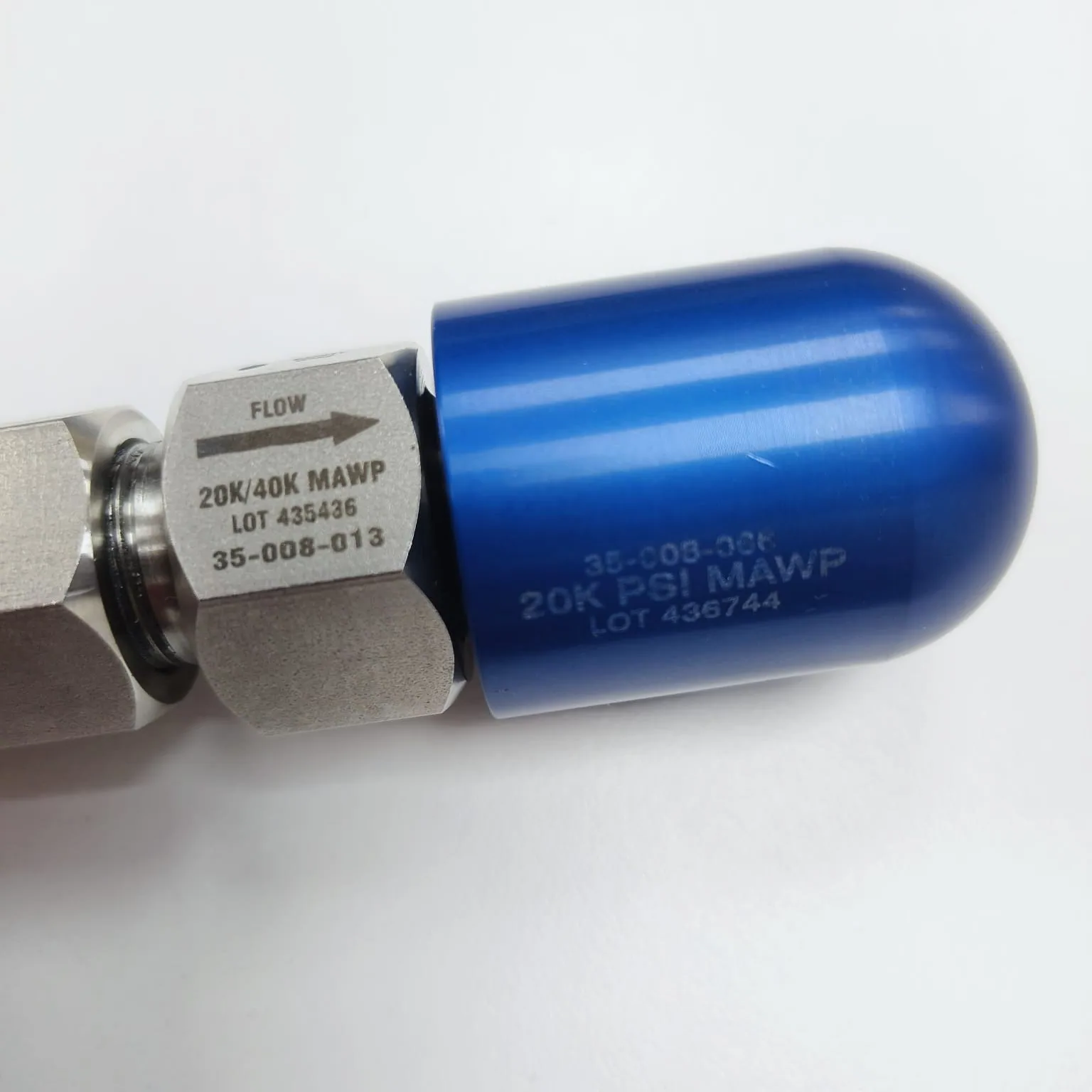

• Blue safety shroud for high-pressure indication

• Buna-N 90 duro O-ring

• Corrosion-resistant stainless steel construction

• Compact and easy to service

• Prevents unsafe disc substitutions

Applications

• Overpressure protection in high-pressure waterblast systems

• Safety relief for positive displacement pump circuits

• Used in hydrodemolition and surface preparation equipment

• Integrated into Jetstream, NLB, or similar water jetting setups

• Installed upstream of sensitive nozzles and hoses to prevent damage

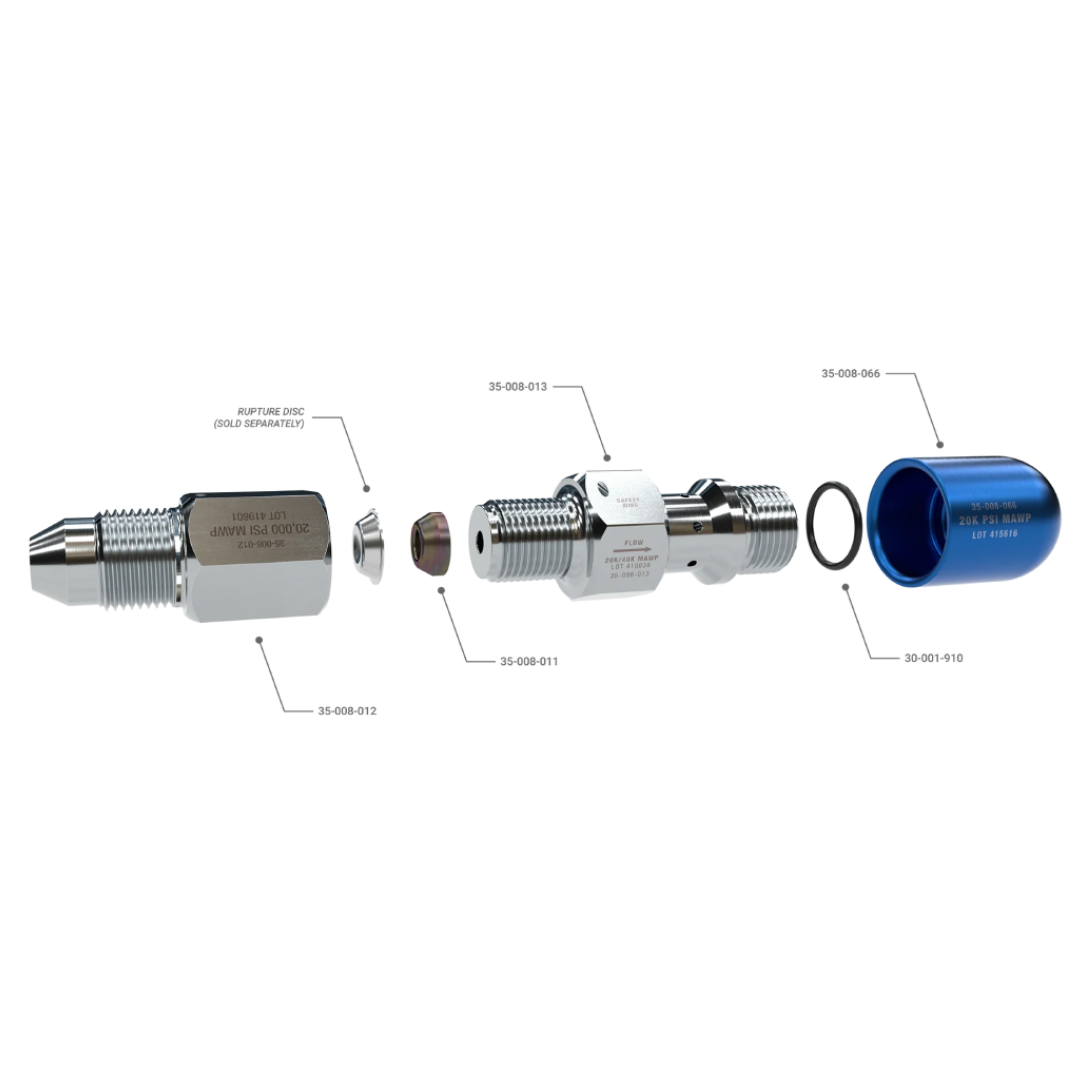

Component Breakdown

• Body: 35-008-012

• Hold-down Ring: 35-008-011

• Nut: 35-008-013

• Safety Shroud: 35-008-066 (Blue)

• O-Ring: 30-001-910

Downloads

APS 20K PSI Rutpure Disc Datasheet.pdf

pdf

Download

Specifications

Maximum Pressure

20,000 psi

Thread Interface

9/16″ MP Male

Disc Seating Style

GDWJ Domed-Deflector

Seal Material

Buna-N (90 durometer)

Body Material

316 Stainless Steel

Application

Hydroblasting pressure systems
