Advanced Pressure Systems (APS) Rupture Disc Holder Assembly, 1/2" NPTM, Max Burst Pressure 15000 PSI, 35-008-000
Part Number : 35-008-000
Brand :
![Advanced Pressure Systems (APS)]()
Robust and compact rupture disc holder designed for high-pressure systems up to 15,000 psi. Integrates 1/2" NPTM threading and GDWJ-style disc seating with enhanced safety shroud.
Serving Kuwait, Saudi Arabia and entire GCC with express delivery.
View allKWD 180.000
Shipping will be calculated at checkout after you enter delivery address.
In stock (5 available).
Available Qty: 5
Description

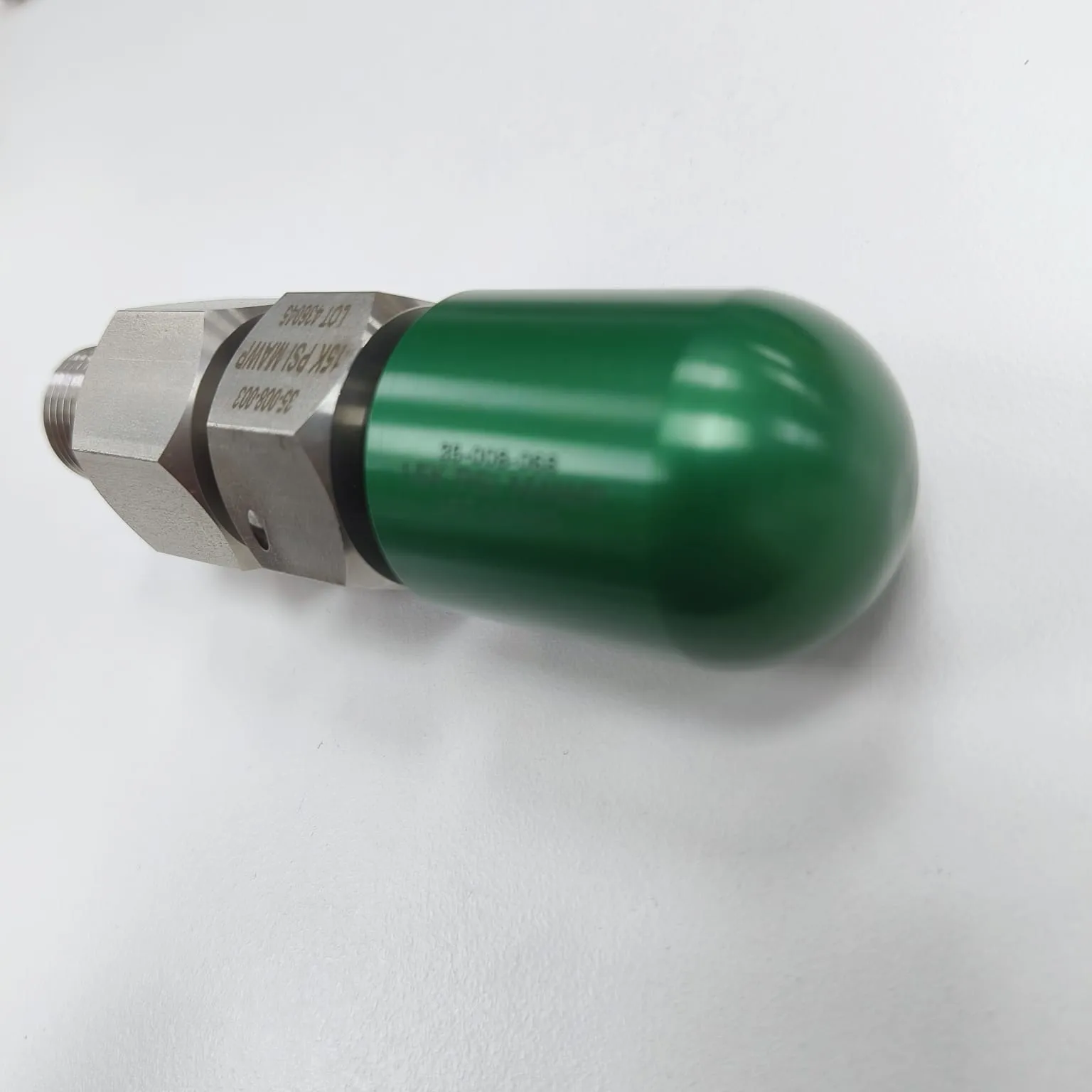

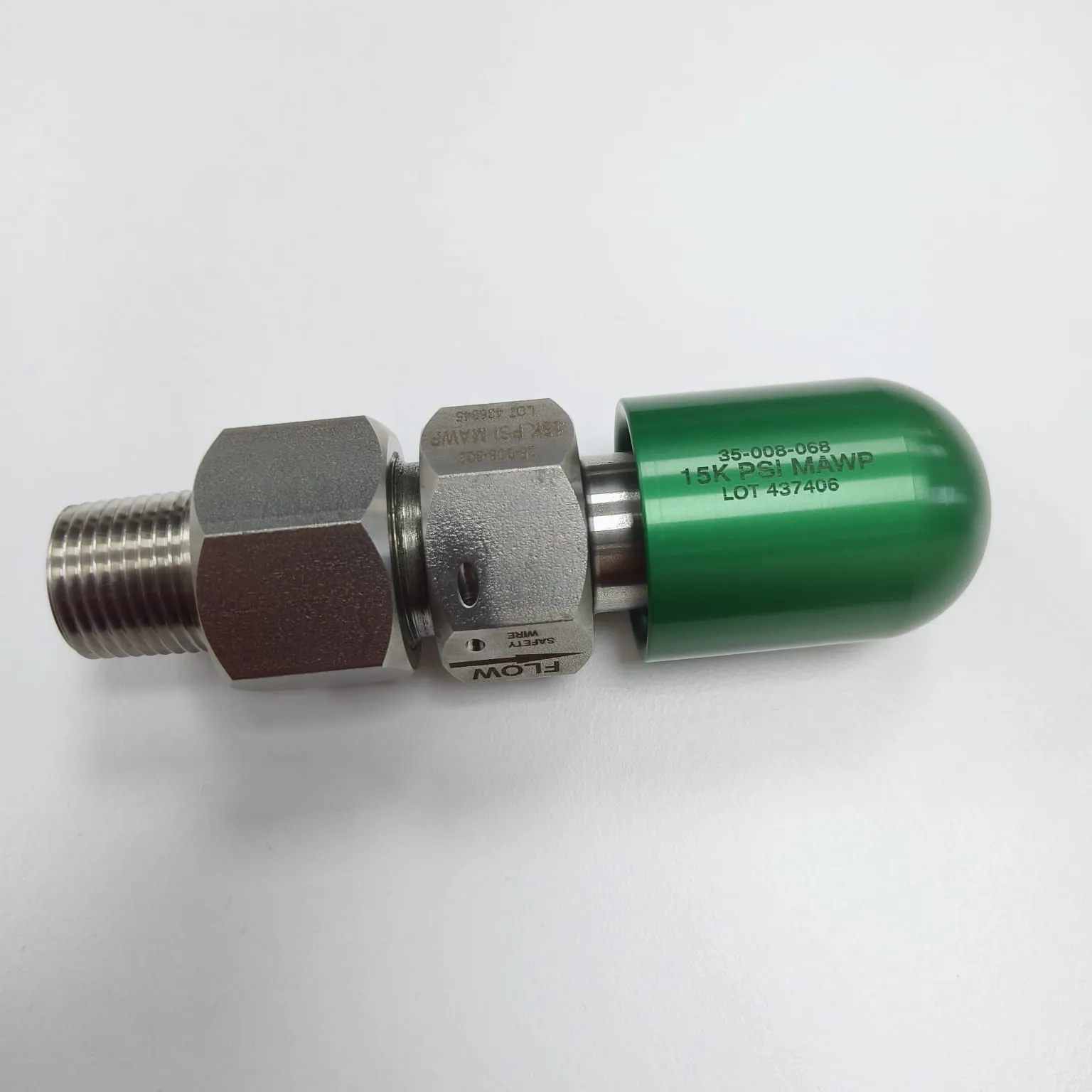

The APS 15K GDWJ-Style Rupture Disc Holder is a fully assembled, stainless-steel pressure safety component designed to operate at up to 15,000 psi. Featuring a domed GDWJ-style disc and 1/2" NPTM male threading, it ensures safe and controlled burst venting in high-pressure water systems. This model includes a Buna-N 90 durometer O-ring, a secure hold-down ring, and a green-coded safety shroud for immediate visual pressure range recognition. Its modular, field-serviceable design allows quick and tool-free disc replacements, enhancing operational uptime and safety compliance.
Key Features
• Rated for 15,000 psi operation

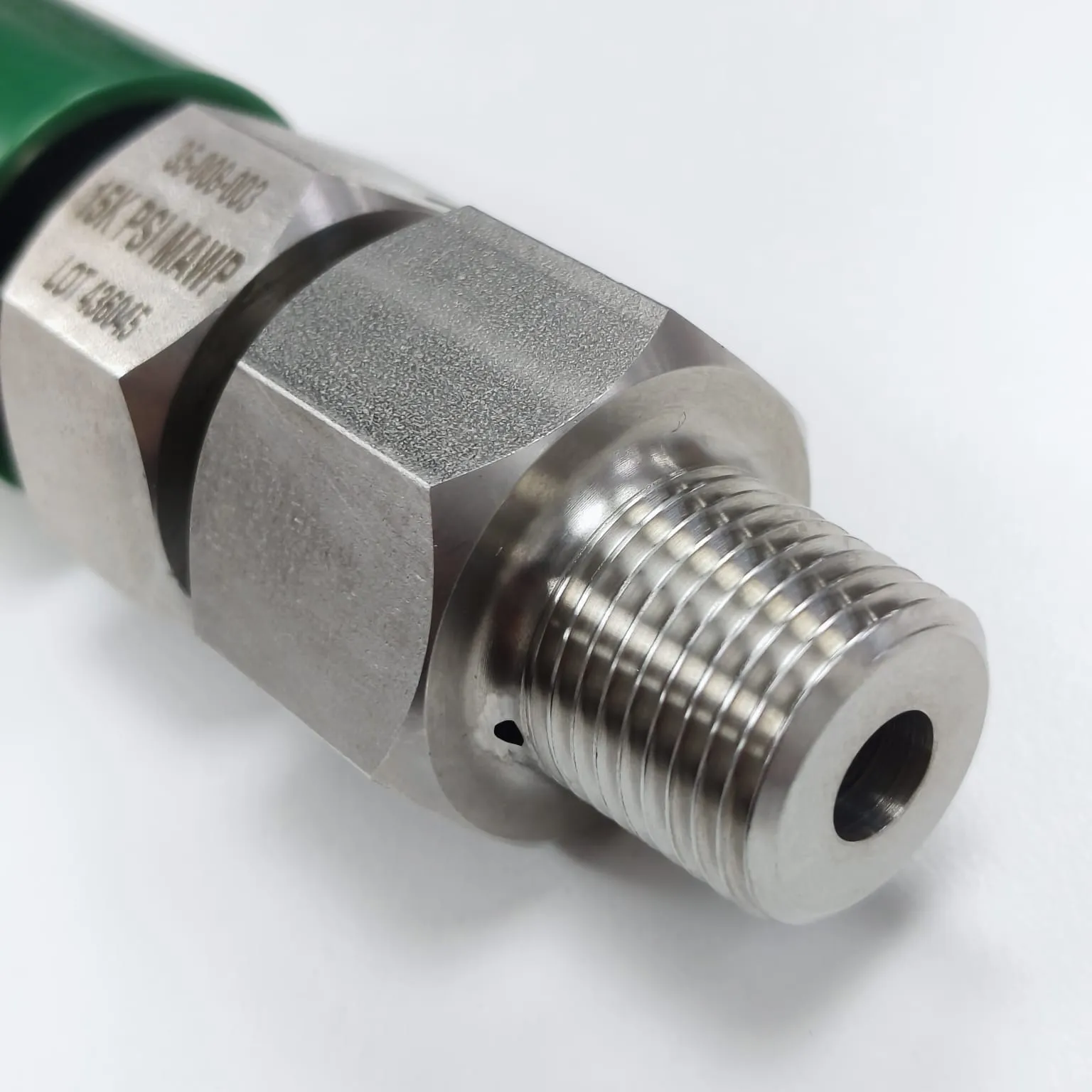

• 1/2" NPTM male threaded connection
• GDWJ-style disc seating (disc type 77512042)
• Integrated green safety shroud
• Buna-N 90 durometer O-ring
• Tool-free disc replacement with lock nut
• Stainless-steel corrosion-resistant body
• Prevents coin-style bypassing
Applications
• Overpressure protection in high-pressure waterblast systems
• Safety relief for positive displacement pump circuits
• Used in hydrodemolition and surface preparation equipment
• Integrated into Jetstream, NLB, or similar waterjetting setups
• Installed upstream of sensitive nozzles and hoses to prevent damage
• Common in maintenance and cleaning of tanks, heat exchangers, and pipelines

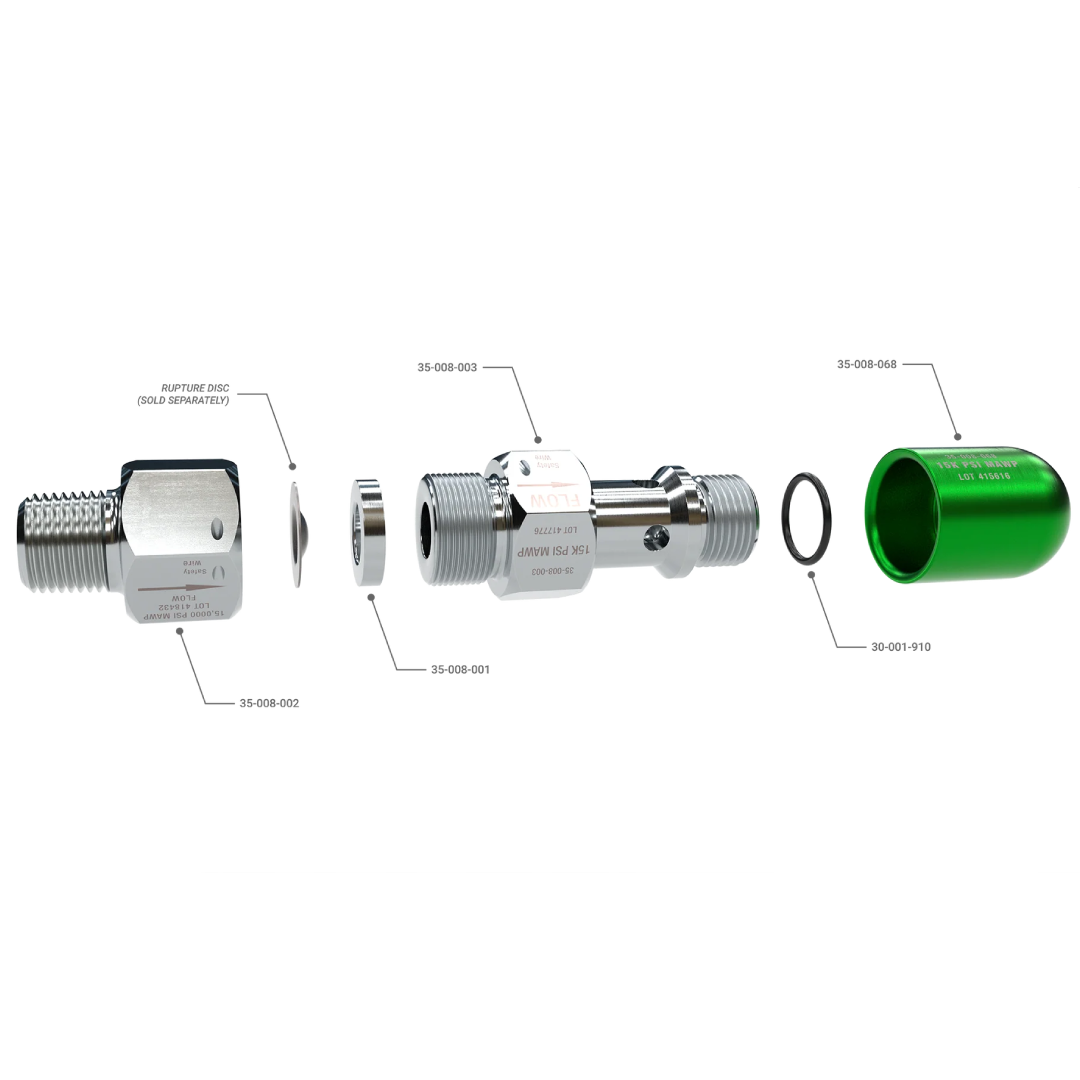

Component Breakdown
• Body: 35-008-002
• Hold-down Ring: 35-008-001 (GDWJ Type 77512009)
• Nut: 35-008-003
• Safety Shroud: 35-008-068 (Green)
• O-Ring: 30-001-910 (3-910 Buna-N, 90 duro)
