Check Valves
17
results
|
Product
|
Connection Size
|
Body Material
|
Seal Material
|
Maximum Pressure
|
Series
|
Temperature Range
|
Orifice Size
|
Nominal Cracking Pressure
|
|---|
DK-LOK VH36 Series High Pressure Check Valve, 6,000 psig, 1/4" Female NPT Connections, SS316, VH36A-F-4N-3-SMfg. Part No.: VH36A-F-4N-3-SSKU: DK-SSCV-6K-04 |
1/4" Female NPT | 316 stainless steel (SS316) | FKM (Viton) | 6,000 psig | VH36A | -10 to 400 °F (-23 to 204 °C) | 3 psig | ||
DK-LOK VH36 Series High Pressure Check Valve, 5,300 psig, 3/8" Female NPT Connections, SS316, VH36B-F-6N-3-SMfg. Part No.: VH36B-F-6N-3-SSKU: DK-SSCV-5.3K-06 |
3/8" Female NPT | 316 stainless steel (SS316) | FKM (Viton) | 5,300 psig | VH36B | -10 to 400 °F (-23 to 204 °C) | 3 psig | ||
DK-LOK VH36 Series High Pressure Check Valve, 4,900 psig, 1/2" Female NPT Connections, SS316, VH36B-F-8N-3-SMfg. Part No.: VH36B-F-8N-3-SSKU: DK-SSCV-4.9K-08 |
1/2" Female NPT | 316 stainless steel (SS316) | FKM (Viton) | 4,900 psig | VH36B | -10 to 400 °F (-23 to 204 °C) | 3 psig | ||
DK-LOK VH36 Series High Pressure Check Valve, 4,600 psig, 3/4" Female NPT Connections, SS316, VH36C-F-12N-3-SMfg. Part No.: VH36C-F-12N-3-SSKU: DK-SSCV-4.6K-12 |
3/4" Female NPT | 316 stainless steel (SS316) | FKM (Viton) | 4,600 psig | VH36C | -10 to 400 °F (-23 to 204 °C) | 3 psig | ||
DK-LOK VH36 Series High Pressure Check Valve, 4,400 psig, 1" Female NPT Connections, SS316, VH36C-F-16N-3-SMfg. Part No.: VH36C-F-16N-3-SSKU: DK-SSCV-4.4K-16 |
1" Female NPT | 316 stainless steel (SS316) | FKM (Viton) | 4,400 psig | VH36C | -10 to 400 °F (-23 to 204 °C) | 3 psig | ||
DK-LOK VH36 Series High Pressure Check Valve, 6,000 psig, 1/4" Tube OD Connections, SS316, VH36A-D-4T-3-SMfg. Part No.: VH36A-D-4T-3-SSKU: DK-SSCVT-6K-04 |
1/4" Tube OD | 316 stainless steel (SS316) | FKM (Viton) | 6,000 psig | VH36A | -10 to 400 °F (-23 to 204 °C) | 3 psig | ||
DK-LOK VH36 Series High Pressure Check Valve, 6,000 psig, 3/8" Tube OD Connections, SS316, VH36B-D-6T-3-SMfg. Part No.: VH36B-D-6T-3-SSKU: DK-SSCVT-6K-06 |
3/8" Tube OD | 316 stainless steel (SS316) | FKM (Viton) | 6,000 psig | VH36B | -10 to 400 °F (-23 to 204 °C) | 3 psig | ||
DK-LOK VH36 Series High Pressure Check Valve, 6,000 psig, 1/2" Tube OD Connections, SS316, VH36B-D-8T-3-SMfg. Part No.: VH36B-D-8T-3-SSKU: DK-SSCVT-6K-08 |
1/2" Tube OD | 316 stainless steel (SS316) | FKM (Viton) | 6,000 psig | VH36B | -10 to 400 °F (-23 to 204 °C) | 3 psig | ||
DK-LOK VH36 Series High Pressure Check Valve, 5,000 psig, 3/4" Tube OD Connections, SS316, VH36C-D-12T-1-SMfg. Part No.: VH36C-D-12T-1-SSKU: DK-SSCVT-5K-12 |
3/4" Tube OD | 316 stainless steel (SS316) | FKM (Viton) | 5,000 psig | VH36C | -10 to 400 °F (-23 to 204 °C) | 1 psig | ||
DK-LOK VH36 Series High Pressure Check Valve, 4,700 psig, 1" Tube OD Connections, SS316, VH36C-D-16T-1-SMfg. Part No.: VH36C-D-16T-1-SSKU: DK-SSCVT-4.7K-16 |
1" Tube OD | 316 stainless steel (SS316) | FKM (Viton) | 4,700 psig | VH36C | -10 to 400 °F (-23 to 204 °C) | 1 psig | ||

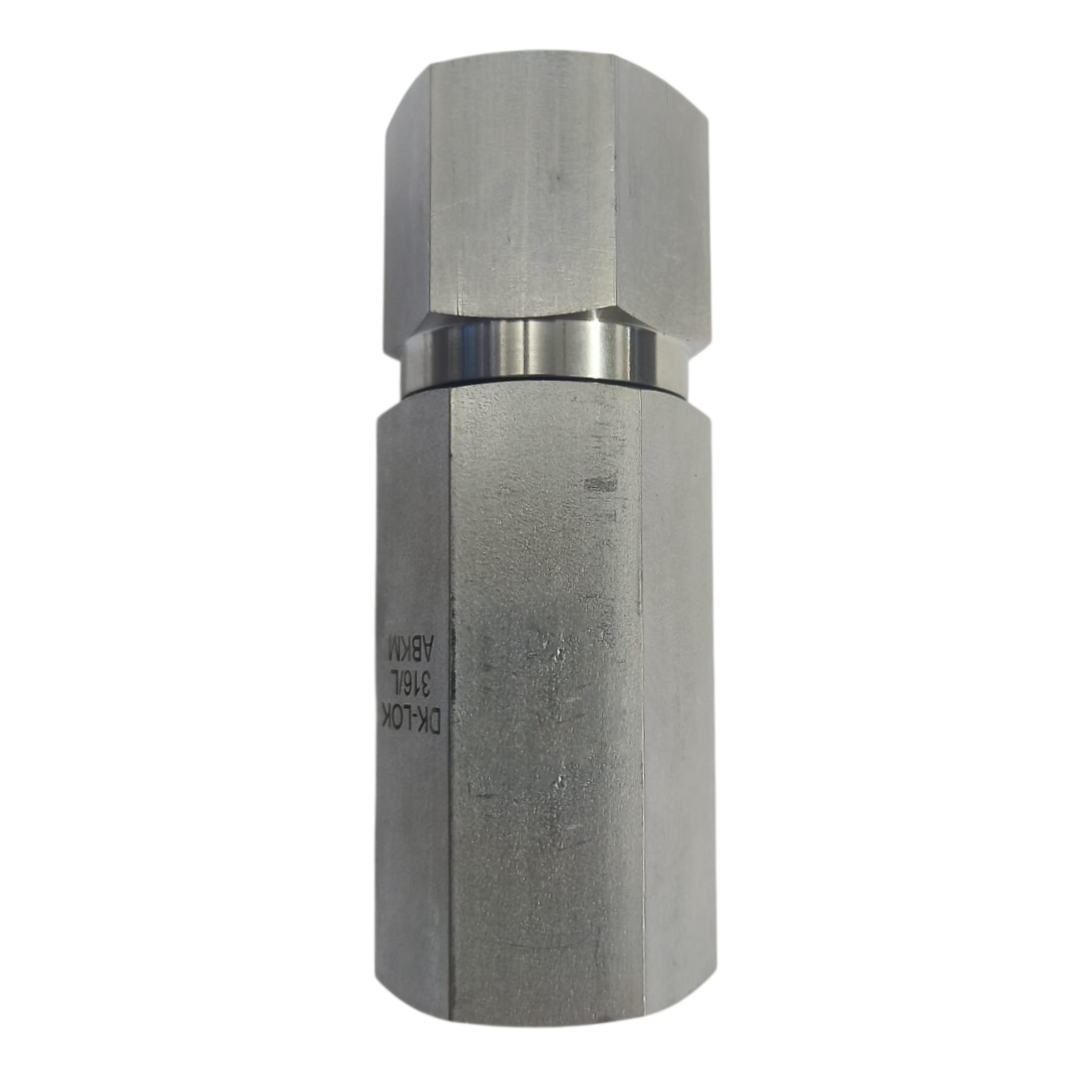

DK-LOK VH36 Series High Pressure Check Valve, 10,000 psig, 1/4" Female NPT Connections, SS316, VH36B-F-4N-10K-3-SMfg. Part No.: VH36B-F-4N-10K-3-SSKU: DK-SSCV-10K-04 |
1/4" Female NPT | 316 stainless steel (SS316) | FKM (Viton) | 10,000 psig | VH36B | -10 to 400 °F (-23 to 204 °C) | 3 psig | ||
DK-LOK VH36 Series High Pressure Check Valve, 10,000 psig, 3/8" Female NPT Connections, SS316, VH36B-F-6N-10K-3-SMfg. Part No.: VH36B-F-6N-10K-3-SSKU: DK-SSCV-10K-06 |
3/8" Female NPT | 316 stainless steel (SS316) | FKM (Viton) | 10,000 psig | VH36B | -10 to 400 °F (-23 to 204 °C) | 3 psig | ||
DK-LOK VH36 Series High Pressure Check Valve, 10,000 psig, 1/2" Female NPT Connections, SS316, VH36B-F-8N-10K-3-SMfg. Part No.: VH36B-F-8N-10K-3-SSKU: DK-SSCV-10K-08 |
1/2" Female NPT | 316 stainless steel (SS316) | FKM (Viton) | 10,000 psig | VH36B | -10 to 400 °F (-23 to 204 °C) | 3 psig | ||
DK-LOK VH36 Series High Pressure Check Valve, 10,000 psig, 3/4" Female NPT Connections, SS316, VH36B-F-12N-10K-3-SMfg. Part No.: VH36B-F-12N-10K-3-SSKU: DK-SSCV-10K-12 |
3/4" Female NPT | 316 stainless steel (SS316) | FKM (Viton) | 10,000 psig | VH36B | -10 to 400 °F (-23 to 204 °C) | 3 psig | ||
DK-LOK VH36 Series High Pressure Check Valve, 10,000 psig, 1" Female NPT Connections, SS316, VH36B-F-16N-10K-3-SMfg. Part No.: VH36B-F-16N-10K-3-SSKU: DK-SSCV-10K-16 |
1" Female NPT | 316 stainless steel (SS316) | FKM (Viton) | 10,000 psig | VH36B | -10 to 400 °F (-23 to 204 °C) | 3 psig | ||
DK-LOK V33B Series Poppet Check Valve, 3000 psi, 3/8" Tube OD Connections, SS316, V33B-D-6T-1/3-SMfg. Part No.: V33B-D-6T-1/3-SSKU: DK-SSCV-3K-06 |
3/8" Tube OD | 316 stainless steel (SS316) | FKM (Viton) | 3000 psig | V33B | 7.1 mm (0.28 in) | 1/3 psi |
