DK-LOK V33B Series Poppet Check Valve, 3000 psi, 3/8" Tube OD Connections, SS316, V33B-D-6T-1/3-S

DK-LOK V33B Series Poppet Check Valve, 3000 psi, 3/8" Tube OD Connections, SS316, V33B-D-6T-1/3-S

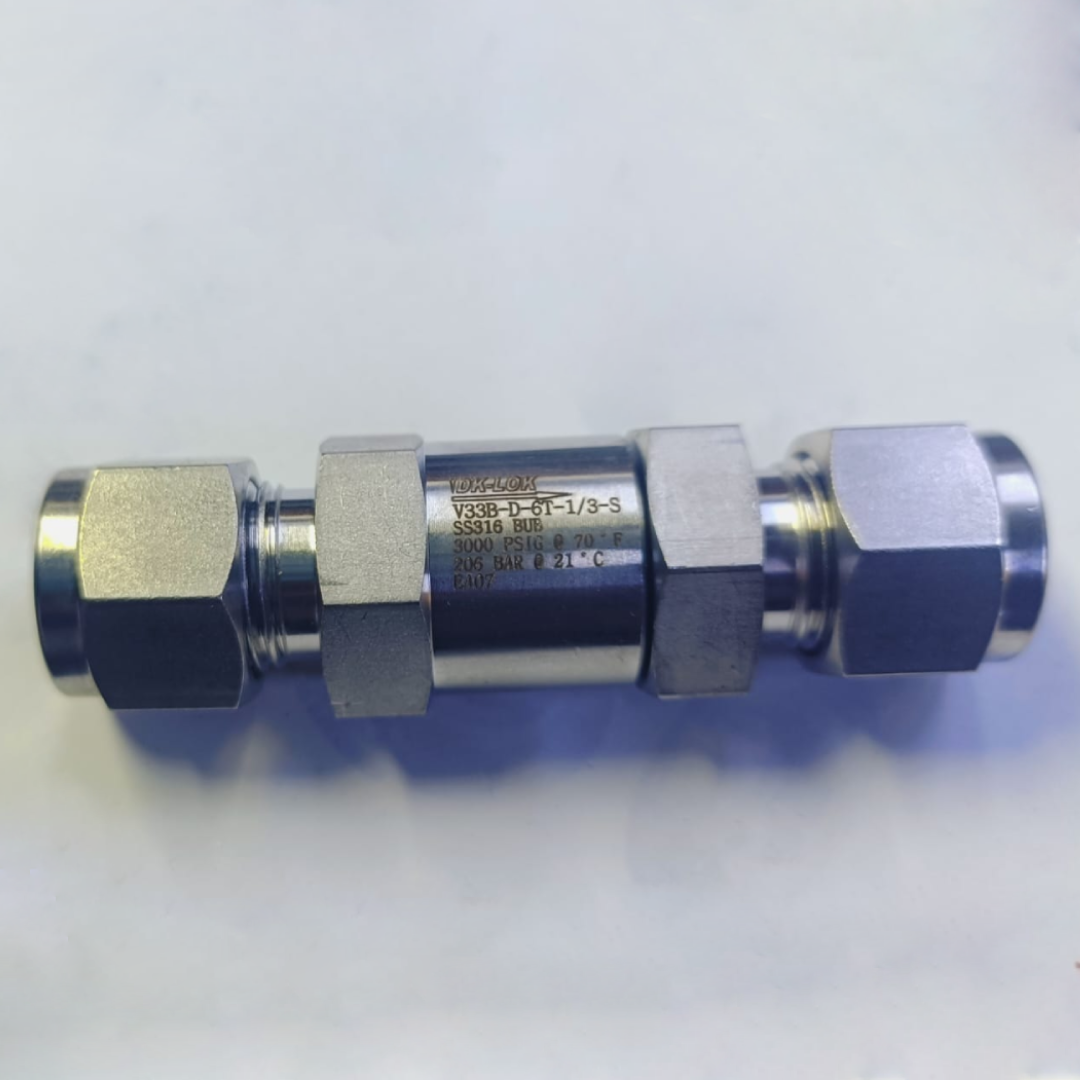

DK-LOK V33B Series Poppet Check Valve, 3000 psi, 3/8" Tube OD Connections, SS316, V33B-D-6T-1/3-S - image 2
DK-LOK V33B Series Poppet Check Valve, 3000 psi, 3/8" Tube OD Connections, SS316, V33B-D-6T-1/3-S video thumbnail
DK-LOK V33B Series Poppet Check Valve, 3000 psi, 3/8" Tube OD Connections, SS316, V33B-D-6T-1/3-S

Mfg. Part No. : V33B-D-6T-1/3-S

SKU : DK-SSCV-3K-06

Brand :
DK-LOK

Stainless steel poppet check valve designed for uni-directional flow control and reliable reverse-flow prevention in tubing systems. Fixed cracking pressure configuration with DK-LOK tube fitting end connections for secure, leak-tight installation.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all
Quantity
In Stock  ·  9 available
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

DK-LOK V33B-D-6T-1/3-S — DK-LOK V33B Series Poppet Check Valve, 3000 psi, 3/8" Tube OD Connections, SS316, V33B-D-6T-1/3-S. Stocked by Indspare for Kuwait and GCC delivery.

The DK-LOK V33B series poppet check valve helps protect instruments and process lines by stopping backflow and maintaining flow direction in high-integrity tubing circuits. This fixed-cracking model uses DK-LOK tube fitting end connections and a spring-loaded poppet with FKM sealing for dependable shutoff performance. A compact SS316 construction suits chemical processing, power generation, and oil and gas service where clean, controlled one-way flow is required.

Key Features

  • Fixed low cracking pressure designator 1/3 psi for sensitive flow start
  • Spring-loaded poppet helps prevent reverse flow and protects downstream equipment
  • DK-LOK tube fitting end connections for secure tubing installation
  • SS316 body for corrosion resistance in industrial fluids
  • Factory tested for cracking and reseal performance

Applications

  • Instrument impulse lines and sampling systems
  • Hydraulic and pneumatic utility circuits
  • Chemical processing and general process tubing
  • Power generation and oil and gas service lines

Downloads

DK-LOK Datsheet V33B-D-6T-13-S.pdf

pdf
Download

DK-LOK Check Valves 3000 PSI Catalog.pdf

pdf
Download

Specifications

Series
V33B
Connection Size
3/8" Tube OD
Nominal Cracking Pressure
1/3 psi
Maximum Pressure
3000 psig
Body Material
316 stainless steel (SS316)
Seal Material
FKM (Viton)
Orifice Size
7.1 mm (0.28 in)
