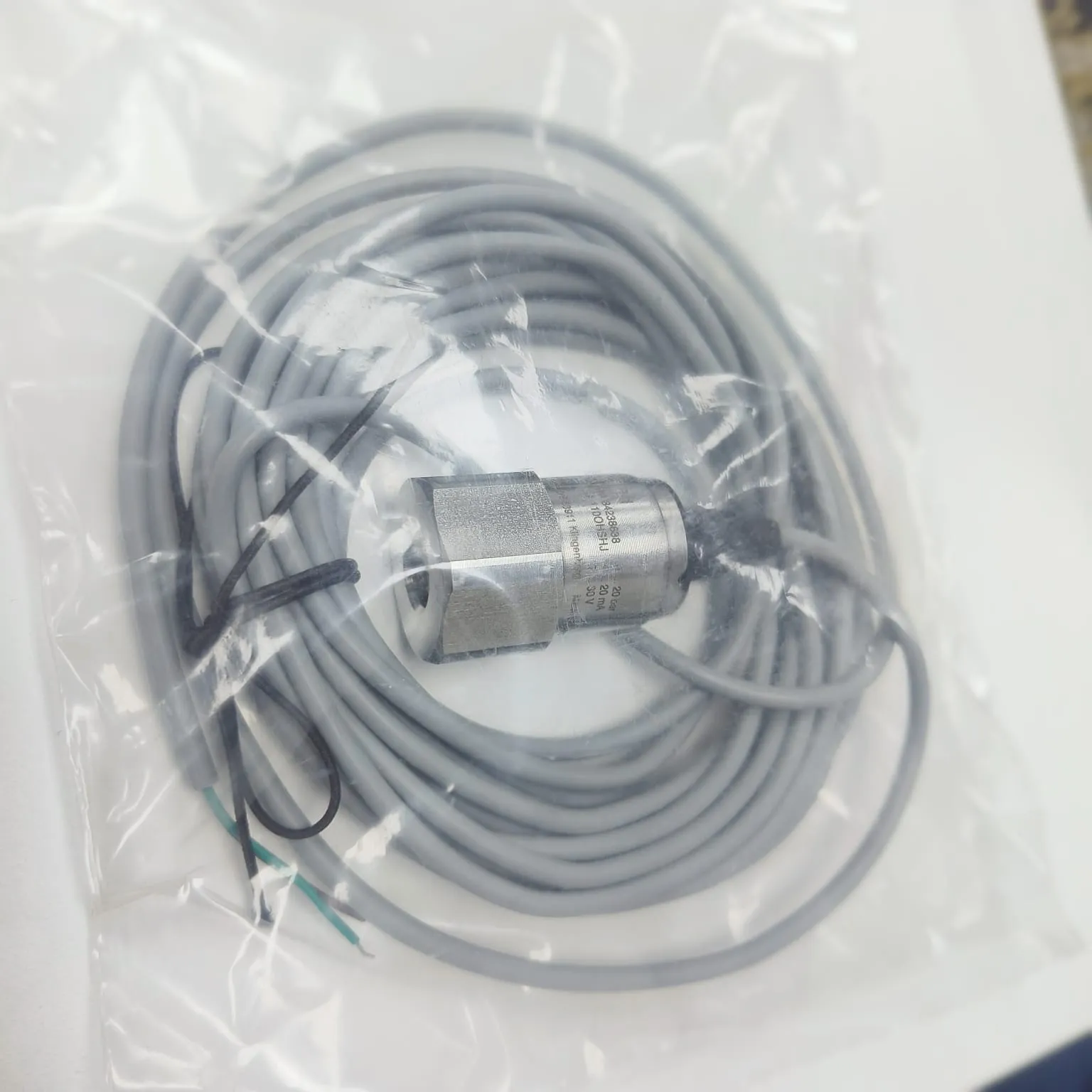

WIKA R-1 Pressure Transmitter, -1...+20 Bar Gauge, 7/16-20UNF-2B Schrader Connection, Flying Lead 5m Cable, 2-wire, 84238688

Part Number : 84238688

Brand :
WIKA

WIKA R-1 is a rugged pressure transmitter designed for heating, refrigeration and air-conditioning duties, built with a monolithic sealed construction without elastomer process seals and a welded thin-film measuring cell for long-term leak tightness. All wetted parts are stainless steel for compatibility with typical refrigerants, and the sensor is proven for stable measurement in variable ambient conditions with high condensation tightness.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all

KWD 90.000

Quantity

Shipping : KWD 15.00

Description
Specifications
Downloads
Related products

Description

The WIKA R-1 pressure transmitter is engineered for demanding HVAC and refrigeration service where leak tightness and durability are critical. Its high-accuracy measuring cell is welded directly to the process connection to eliminate elastomer seals and support dependable operation with common refrigerants, while stainless steel wetted parts provide robust media resistance. The design is maintenance-free and field proven for very high load cycling, and the special case design supports stable performance even in harsh ambient conditions and condensation prone environments. Each item is supplied with a 4 to 20 mA two-wire output and 7 to 30 V DC power supply for easy integration into industrial control systems. This item is configured for -1 ... +20 Bar Gauge measurement, uses 7/16-20UNF-2B Schrader Female Connection, and includes a 5m flying lead cable with IP69K connection and cULus approval.

Key features

  • Monolithic construction without elastomer process seals for long-term leak tightness
  • Welded thin-film measuring cell for reliable pressure measurement in HVAC and refrigeration circuits
  • Stainless steel wetted parts for compatibility with common refrigerants
  • Maintenance-free design proven for very high load cycling
  • Stable measurement in variable ambient conditions with high condensation tightness
  • 4 to 20 mA two-wire output with 7 to 30 V DC supply for PLC and control integration
  • Flying lead electrical connection with IP69K protection as configured
  • cULus approval as per item configuration
  • Made in Poland.

Applications

  • Refrigeration plants and chillers
  • Compressors and condenser monitoring
  • Heat pumps
  • Air-conditioning systems and HVAC skids
  • Industrial refrigeration circuits using common refrigerants

Downloads

Datasheet R1 84238688.pdf

pdf
Download

Wika_R-1_Datasheet.pdf

pdf
Download

Wika_R-1_Operating_Instructions.pdf

pdf
Download

Specifications

Measuring range
-1 ... +20 Bar Gauge
Process Connection
7/16-20UNF-2B Schrader, Female Connection
Output Signal
4 ... 20 mA, 2-wire
Power Supply
7 ... 30 V DC
Electrical connection
flying lead, IP 69K
Cable Length
5 m
Accuracy
2,0 %
Approvals
cULus
Non-linearity (BFSL) per IEC 61298-2
≤ ±0.5 % of span
Long-term drift per IEC 61298-2
≤ ±0.3 % of span
Settling time per IEC 61298-2
≤ 5 ms
Ingress Protection
Plug connection IP67, cable outlet IP69K
Wetted parts & Case
Stainless steel
