WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Lower Mount, 39607178

WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Lower Mount, 39607178
WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Lower Mount, 39607178 - image 2
WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Lower Mount, 39607178 - image 3
WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Lower Mount, 39607178 - image 4
WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Lower Mount, 39607178 - image 5
WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Lower Mount, 39607178 - image 6
WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Lower Mount, 39607178 video thumbnail
WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Lower Mount, 39607178

Mfg. Part No. : 39607178

SKU : PW25-02300

Brand :
WIKA

WIKA 213.53 pressure gauge is a stainless steel bourdon tube gauge with brass connection is designed for reliable pressure indication in demanding industrial service. It is well suited for applications with vibration and dynamic pressure loads, offering durable construction, clear readability, and dependable performance across a wide range of general process duties.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all
Quantity
In Stock  ·  155 available
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

WIKA 39607178 — WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Lower Mount, 39607178. Stocked by Indspare for Kuwait and GCC delivery.

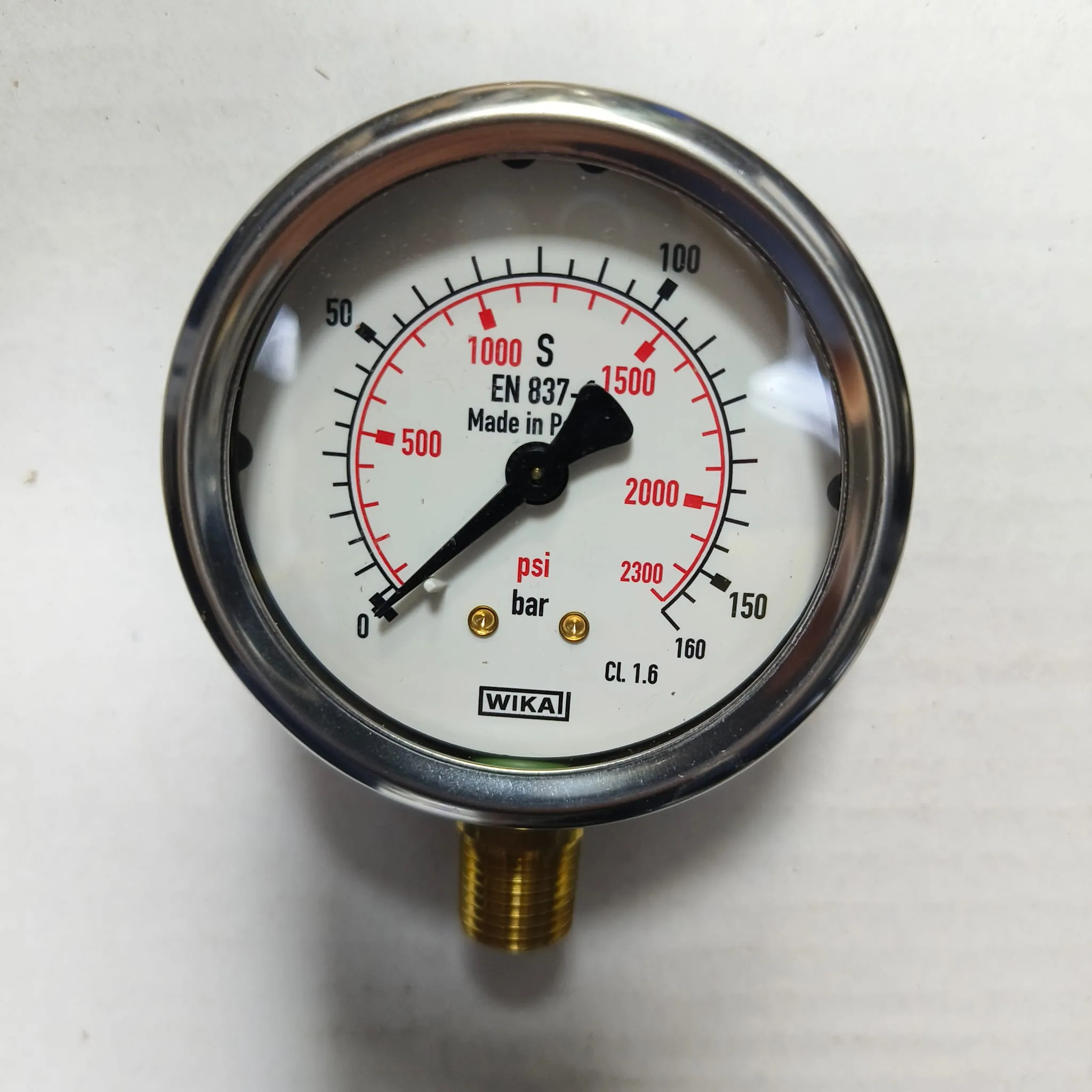

This WIKA 213.53 bourdon tube pressure gauge is designed for accurate pressure monitoring in hydraulic equipment, compressors, pumps and general industrial systems. It has a 2.5" dial with a 1/4" Male NPT brass lower connection and a stainless steel case for dependable everyday service. The gauge is supplied as a dry case and is prepared for liquid filling, which makes it suitable for installations where vibration resistance may be required. It features a 0...160 bar range and a clear white dial that is easy to read. The dial shows a black primary bar scale with a red secondary psi scale for quick cross reference. This model is a practical choice for reliable pressure indication across a wide range of industrial duties.

Key Features

  • Stainless steel case provides strong protection for industrial pressure monitoring.
  • 1/4" Male NPT brass lower connection supports common installation points.
  • Dual scale dial shows bar as the primary scale with a red psi secondary scale.
  • Dry case prepared for liquid filling allows the gauge to be filled when required.
  • Clear plastic window and class 1.6 accuracy support easy everyday reading.
  • Made in Poland

Applications

  • Hydraulic systems
  • Air compressors
  • Pump skids
  • Industrial utilities
  • Vibration service

Downloads

Wika Datasheet 39607178.pdf

pdf
Download

Wika 213.53 Model Pressure Gauge Datasheet.pdf

pdf
Download

Wika Operating Instructions for Pressure Gauges.pdf

pdf
Download

Specifications

Model
213.53.063
Measuring System
Bourdon Tube
Dial Size
63 mm / 2.5"
Measuring Range
0...160 bar
Secondary Scale
2nd scale psi
Process Connection
1/4" Male NPT
Mounting Position
Lower mount
Case Filling
Dry case, prepare for filling
Wetted Parts
Copper alloy
Case Material
Stainless steel 1.4301
Case Design
Crimp ring case (version 53)
Accuracy Class
Class 1.6
Window
Plastic, clear
