WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Back Mount, 84154645

WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Back Mount, 84154645
WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Back Mount, 84154645 - image 2
WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Back Mount, 84154645 - image 3
WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Back Mount, 84154645 - image 4
WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Back Mount, 84154645 - image 5
WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Back Mount, 84154645 video thumbnail
WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Back Mount, 84154645

Mfg. Part No. : 84154645

SKU : PW25-BC-02300

Brand :
WIKA

WIKA 213.53 pressure gauge is a stainless steel bourdon tube gauge designed for reliable pressure indication in demanding industrial service. This back mount version includes a polished stainless steel front flange for panel installation and is well suited for applications with vibration and dynamic pressure loads, offering durable construction, clear readability, and dependable performance across a wide range of general process duties.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all
Quantity
In Stock  ·  46 available
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

WIKA 84154645 — WIKA Pressure Gauge 213.53.063, 0...160 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Back Mount, 84154645. Stocked by Indspare for Kuwait and GCC delivery.

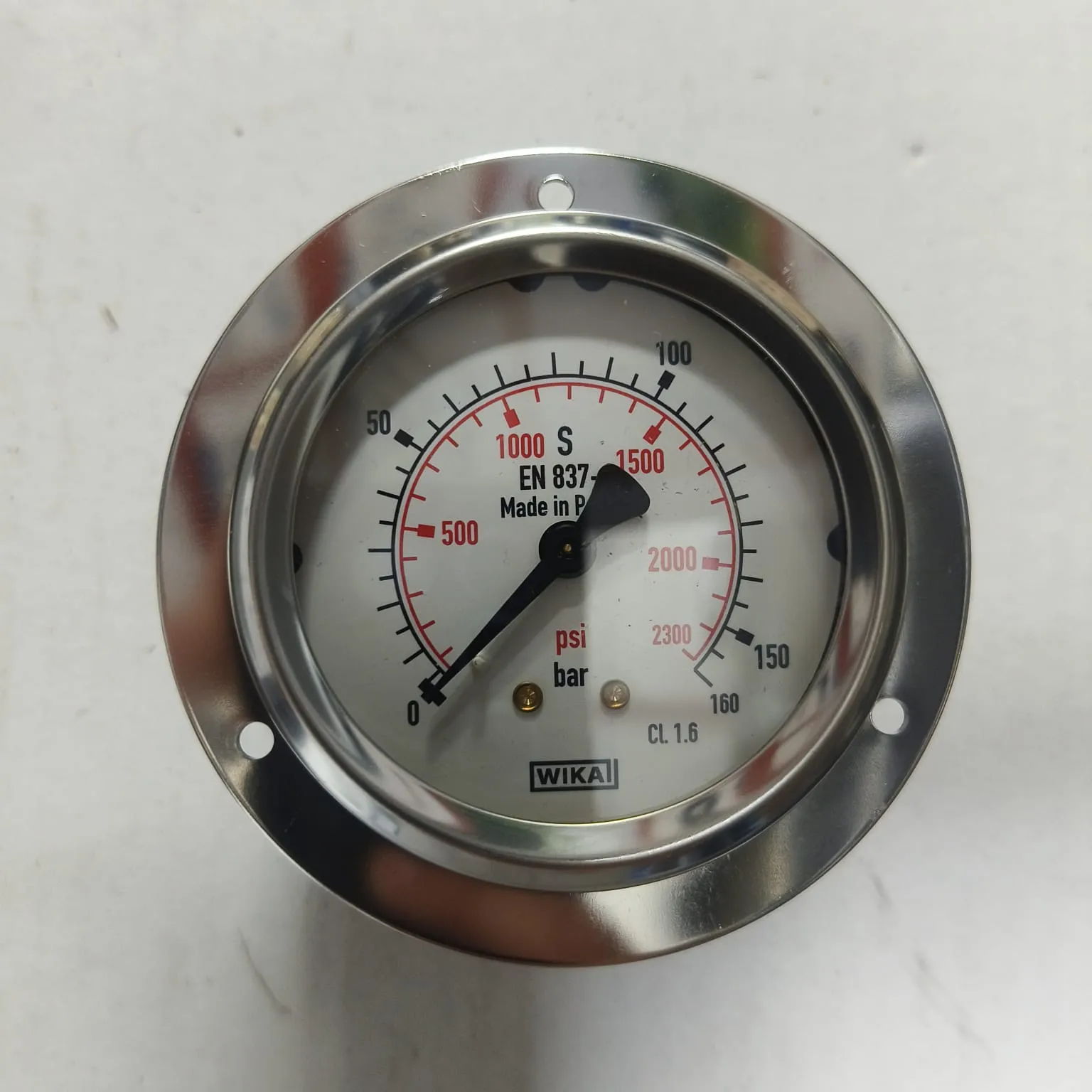

This WIKA 213.53.063 bourdon tube pressure gauge is designed for accurate pressure monitoring in hydraulic equipment, compressors, pumps and general industrial systems. It has a 2.5" dial with a 1/4" Male NPT back mount connection and a stainless steel case with polished SS front flange for dependable panel installation. The gauge is supplied as a dry case and is prepared for liquid filling, which makes it suitable for installations where vibration resistance may be required. It features a 0...160 bar primary range with a red secondary psi scale (0...2300 psi) for quick cross reference. This model is a practical choice for reliable pressure indication across a wide range of industrial duties.

Key Features

  • Back mount 1/4" NPT connection with polished stainless steel front flange supports panel mounting.
  • Stainless steel case provides strong protection for industrial pressure monitoring.
  • Dual scale dial shows bar as the primary scale with a red secondary psi scale (0...2300 psi).
  • Dry case prepared for liquid filling allows the gauge to be filled when required.
  • Clear plastic window and class 1.6 accuracy support easy everyday reading.
  • Made in Poland

Applications

  • Hydraulic systems
  • Air compressors
  • Pump skids
  • Industrial utilities
  • Vibration service

Downloads

Wika Datasheet 84154645.pdf

pdf
Download

Wika 213.53 Model Pressure Gauge Datasheet.pdf

pdf
Download

Wika Operating Instructions for Pressure Gauges.pdf

pdf
Download

Specifications

Model
213.53.063
Measuring System
Bourdon Tube
Dial Size
63 mm / 2.5"
Measuring Range
0...160 bar
Secondary Scale
2nd scale psi
Process Connection
1/4" Male NPT
Mounting Position
Back mount
Mounting Flange
Polished SS front flange
Case Filling
Dry case, prepare for filling
Wetted Parts
Copper alloy
Case Material
Stainless steel 1.4301
Case Design
Crimp ring case (version 53)
Accuracy Class
Class 1.6
Window
Plastic, clear
