WIKA Compound Gauge 213.53.063, -30 inHg...+100 psi, Dual Scale, 2.5" Dial, 1/4" Male NPT Lower Mount, 39939574
Mfg. Part No. : 39939574
SKU : PWC25-100
Brand :
![WIKA]()
WIKA compound gauge is a stainless steel bourdon tube gauge with copper alloy wetted parts, designed for reliable vacuum and positive pressure indication in demanding industrial service. It is well suited for hydraulics, compressors, pumps and other applications where vibration or dynamic pressure loads are present.
Serving Kuwait, Saudi Arabia and entire GCC with express delivery.
View allDescription
Specifications
Downloads
Related
products
Description

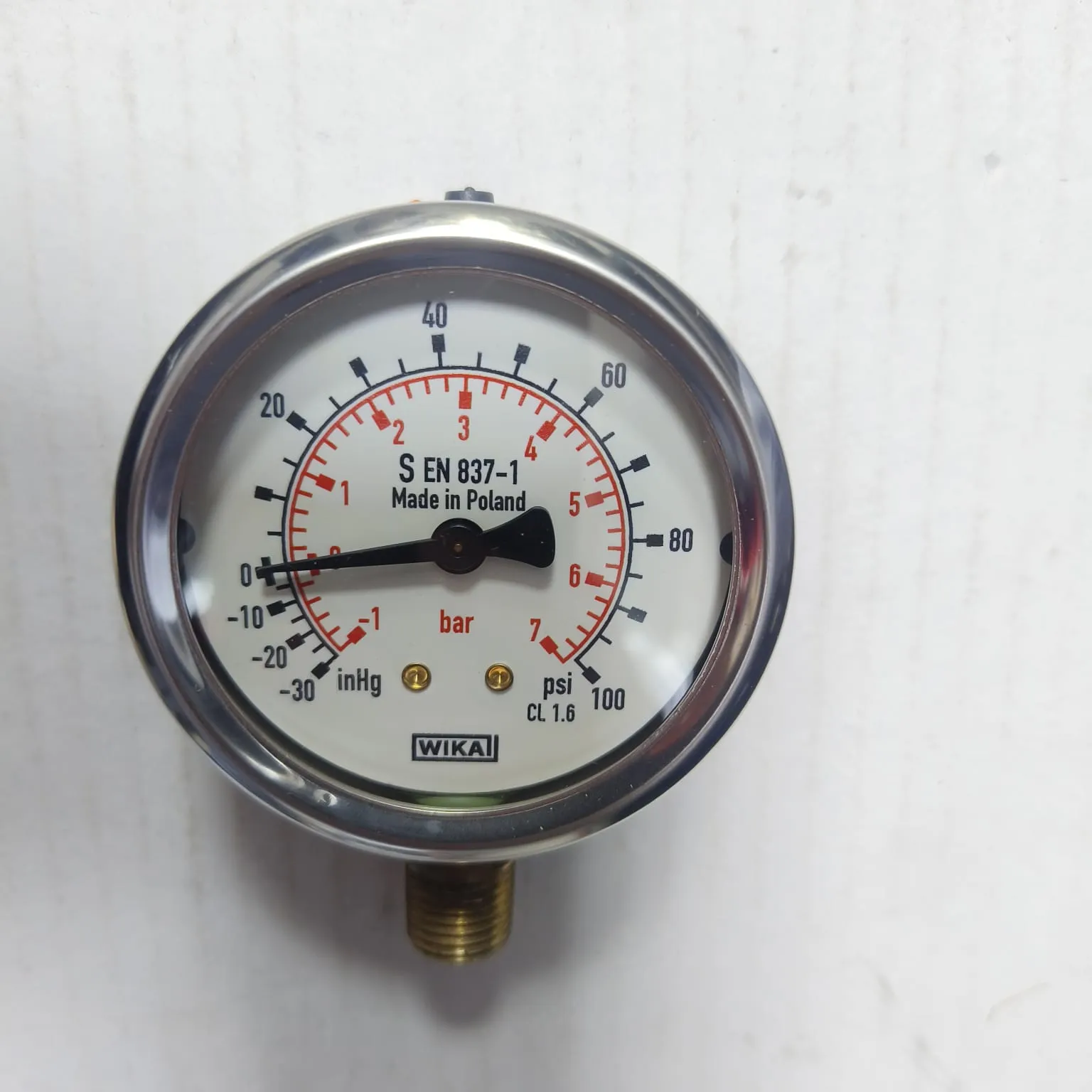

This WIKA 213.53 compound gauge is designed for reliable vacuum and pressure monitoring in compressors, pumps, hydraulic equipment and general industrial systems. It has a 2.5" dial with a 1/4" Male NPT brass lower connection and a stainless steel case for dependable everyday service. The gauge is prepared for liquid filling, which makes it suitable for installations where vibration resistance may be required. It features a -30 inHg...+100 psi measuring range and a clear white dual scale dial with a black primary psi scale and a red secondary bar scale for quick cross reference. This gauge can also marked as WIKA’s current part number84306807 , which corresponds to the exact matching configuration of this product.
Key Features
- Stainless steel case and copper alloy wetted parts support dependable industrial service.
- 1/4" Male NPT lower mount connection suits common installation points.
- Dual scale dial shows psi as the primary scale with a red bar secondary scale.
- Prepared-for-filling construction suits applications with vibration or pulsation.
- 63 mm / 2.5" dial size and Class 1.6 accuracy support clear everyday reading.
- Made in Poland
Applications
- Hydraulic systems
- Air compressors
- Pump skids
- General industrial service
- Vibration service
Specifications
Model
213.53.063
Gauge Type
Compound
Measuring Range
-30 inHg...+100 psi
Dial Size
63 mm / 2.5"
Measuring System
Bourdon Tube
Secondary Scale
2nd scale bar
Process Connection
1/4" Male NPT
Mounting Position
Lower mount
Accuracy Class
Class 1.6
Case Filling
Dry Case, Prepared for filling
Wetted Parts
Copper alloy
Case Material
Stainless steel 1.4301
Case Design
Crimp ring case (version 53)
Window
Plastic, clear
