Wika Capsule Pressure Gauge Model 612.20.100, 0…600 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272195

Part Number : 84272195

Brand :
WIKA

Industrial capsule pressure gauge designed for very low pressure measurement in dry, gaseous, and non-aggressive media. It uses a proven capsule measuring system and is widely suited for vacuum, medical, laboratory, environmental, and filter monitoring applications.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all

KWD 50.000

Quantity
Description
Specifications
Downloads
Related products

Description

The WIKA 612.20.100 capsule pressure gauge extends the industrial low-pressure series to a 0…600 mbar range for higher low-pressure applications. The copper alloy capsule measuring system is designed specifically for low over-pressures of dry, non-aggressive gases and transmits the applied pressure to a precision pointer mechanism. A 100 mm dial with 0…600 mbar primary scale and red mmWC secondary scale provides clear reading of pressure in both units. The gauge features a stainless steel case with cam-ring (bayonet) bezel, flat instrument glass window and 1/2" NPT lower Mount process connection, offering robust mechanical protection and easy installation. In accordance with EN 837-3, the instrument achieves accuracy class 1.6 and typical temperature limits of -20…+60 °C ambient and up to +100 °C medium. These characteristics make it suitable for filter monitoring, low-pressure gas distribution and level indication in process, HVAC and environmental systems.

Key Features

  • Capsule pressure gauge, industrial series model 612.20.100 for ultra-low pressures

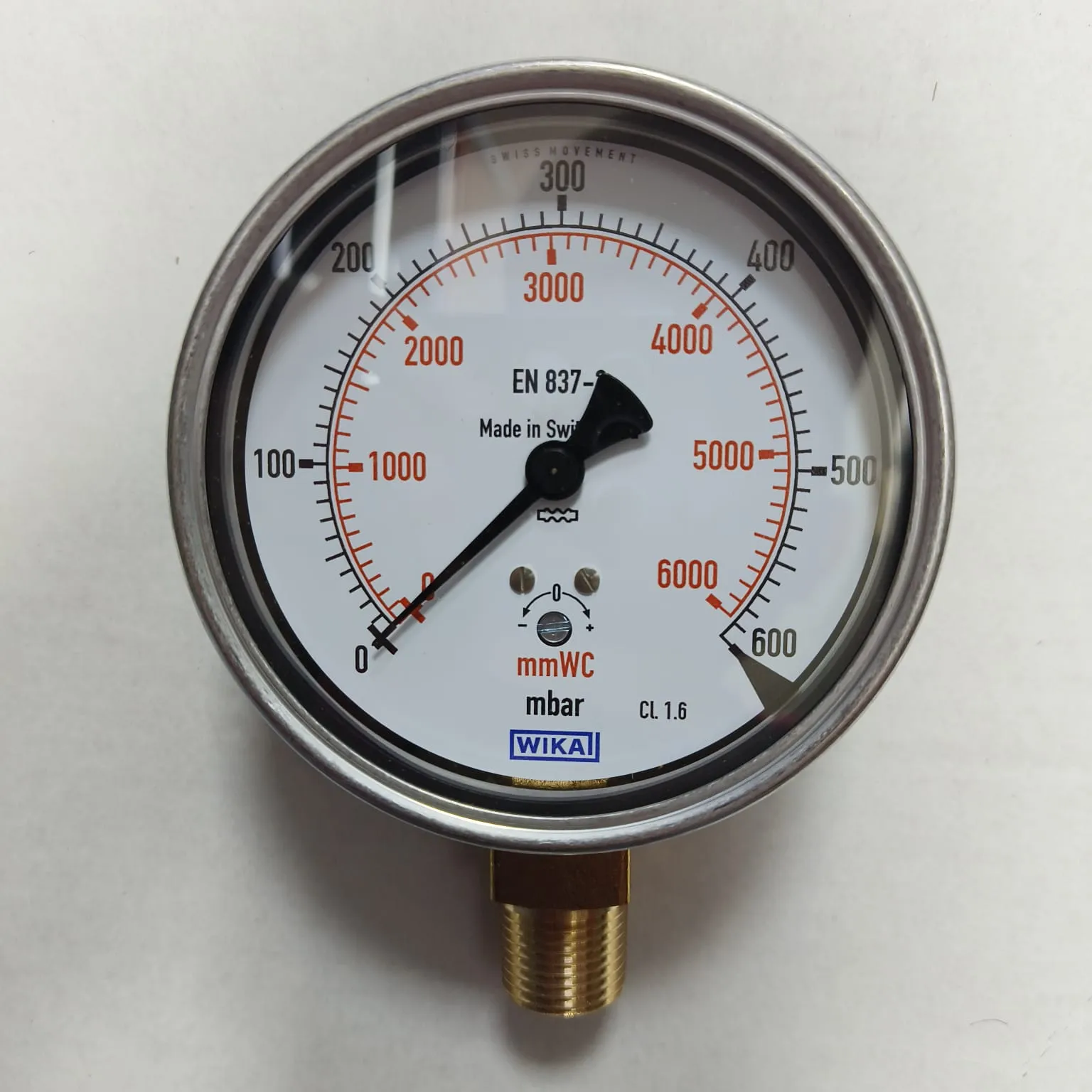

  • Dual scale 0…600 mbar primary & secondary scale mmWC (red).

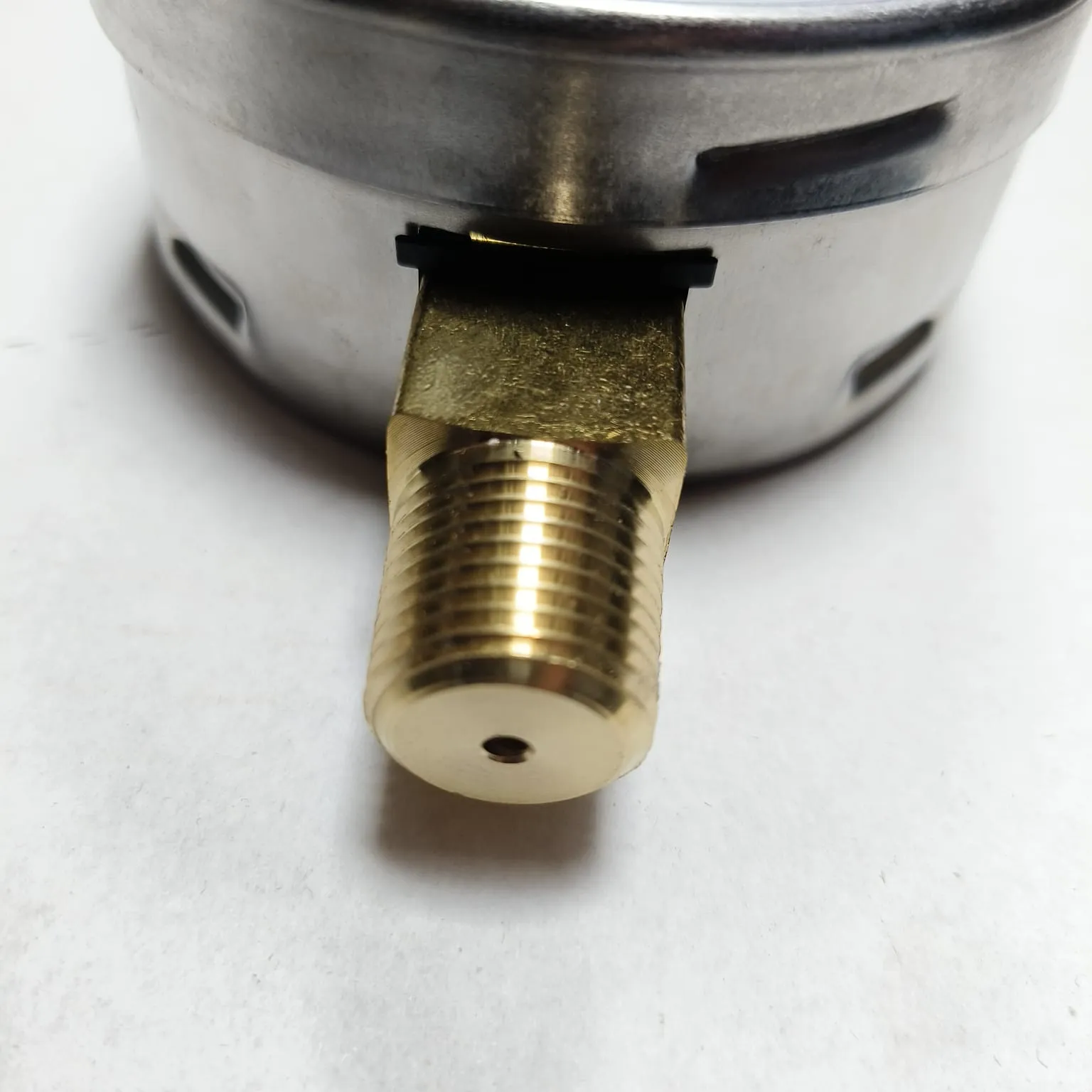

  • 1/2" NPT lower Mount process connection
  • Copper alloy capsule measuring system for dry, non-aggressive gases

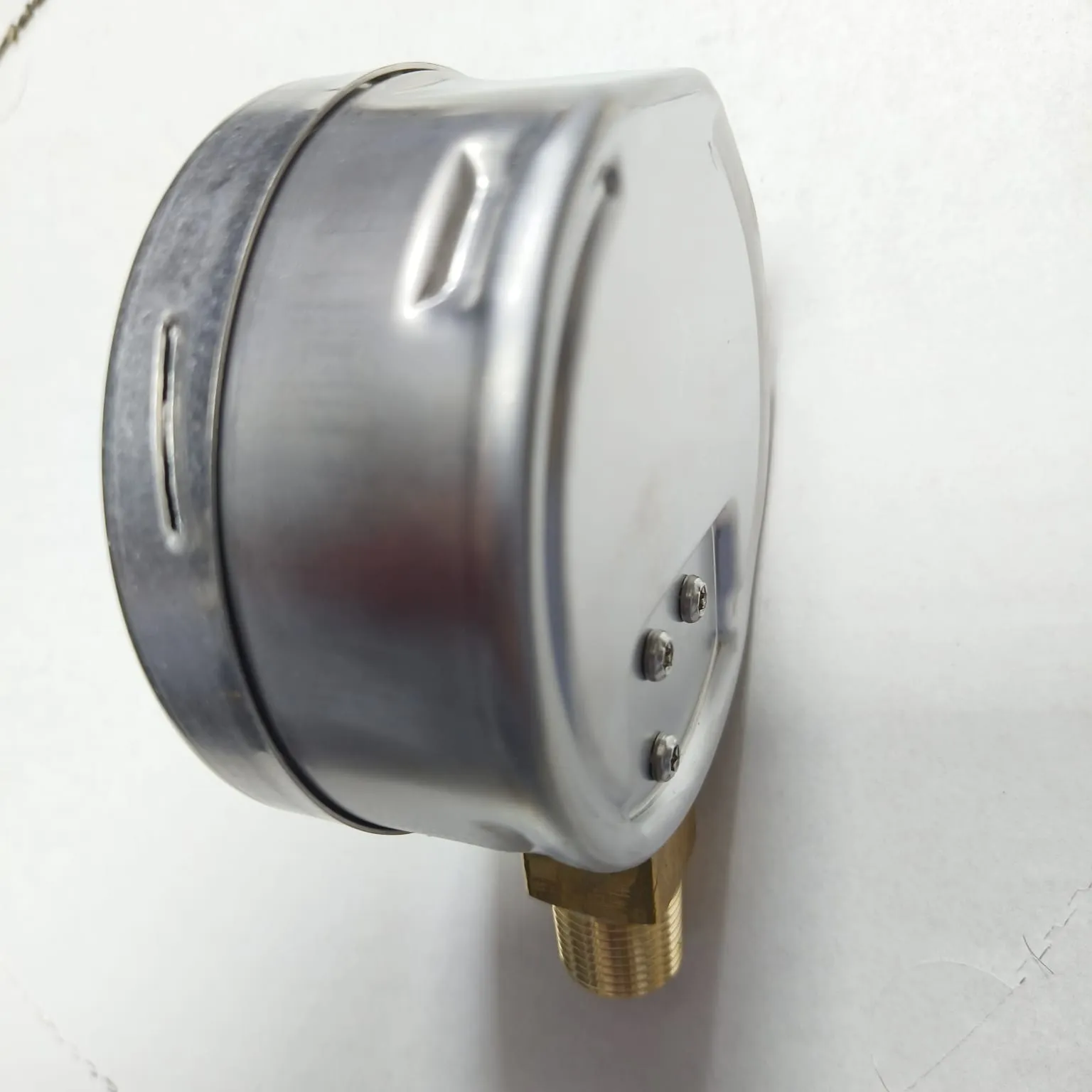

  • Stainless steel case with cam-ring (bayonet) bezel and flat glass window
  • Accuracy class 1.6 to EN 837-3
  • Typical ambient temperature -20…+60 °C, medium temperature up to +100 °C
  • High resolution at low pressures for accurate draft and level indication
  • Made in Switzerland.

Typical Applications

  • Draft and chimney pressure monitoring in boilers, heaters and flues
  • Filter and blower differential pressure indication at very low pressures
  • Sensitive low-pressure pneumatic control and monitoring
  • Level measurement in open tanks using mmWC indication at low ranges
  • Laboratory and environmental monitoring of ultra-low gas pressures

Downloads

Wika Datasheet 84272195.pdf

pdf
Download

Wika 612.20 Model Datasheet.pdf

pdf
Download

Wika 612.20 Model Technical Data.pdf

pdf
Download

Wika Pressure Gauge Operating Instructions.pdf

pdf
Download

Specifications

Model
612.20.100
Pressure Range
0…600 mbar
Dial Size
100 mm (4")
Process Connection
1/2" Male NPT, Lower Mount
Accuracy class
Class 1.6 to EN 837-3
Case Material
Stainless steel case with cam-ring (bayonet) bezel
Wetted parts
Copper alloy capsule element and process connection
Window
Flat instrument glass
Gauge Type
Low-pressure capsule gauge
Ambient temperature
-20…+60 °C
Ingress Protection
IP54
Media Compatibility
Dry, non-aggressive gases that do not corrode copper alloy
2nd Scale or Special Scale
mmWC (red)
