Wika Capsule Pressure Gauge Model 612.20.100, 0…60 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272199

Part Number : 84272199

Brand :
WIKA

Industrial capsule pressure gauge designed for very low pressure measurement in dry, gaseous, and non-aggressive media. It uses a proven capsule measuring system and is widely suited for vacuum, medical, laboratory, environmental, and filter monitoring applications.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all

KWD 50.000

Quantity
Description
Specifications
Downloads
Related products

Description

WIKA 612.20.100 capsule pressure gauge specially for very low-pressure measurement from 0…60 mbar. The copper alloy capsule element is particularly sensitive in this range and is suitable for dry, non-aggressive gases. The 100 mm dial shows a 0…60 mbar primary scale with red mmWC secondary scale, giving excellent resolution for fine draft and low-pressure readings. A stainless steel case with bayonet (cam-ring) bezel and flat instrument glass protects the movement and capsule, while the 1/2" NPT lower Mount process connection enables straightforward installation on manifolds, ducts or impulse lines. In line with EN 837-3, the gauge achieves class 1.6 accuracy and typical ambient and medium temperature ranges of -20…+60 °C and up to +100 °C respectively. This configuration is ideal for sensitive draft measurement, filter and blower supervision and level indication at very low pressures.

Key Features

  • Capsule pressure gauge, industrial series model 612.20.100 for ultra-low pressures
  • Dual scale 0…60 mbar primary & secondary scale mmWC (red).
  • 1/2" NPT lower Mount process connection
  • Copper alloy capsule measuring system for dry, non-aggressive gases

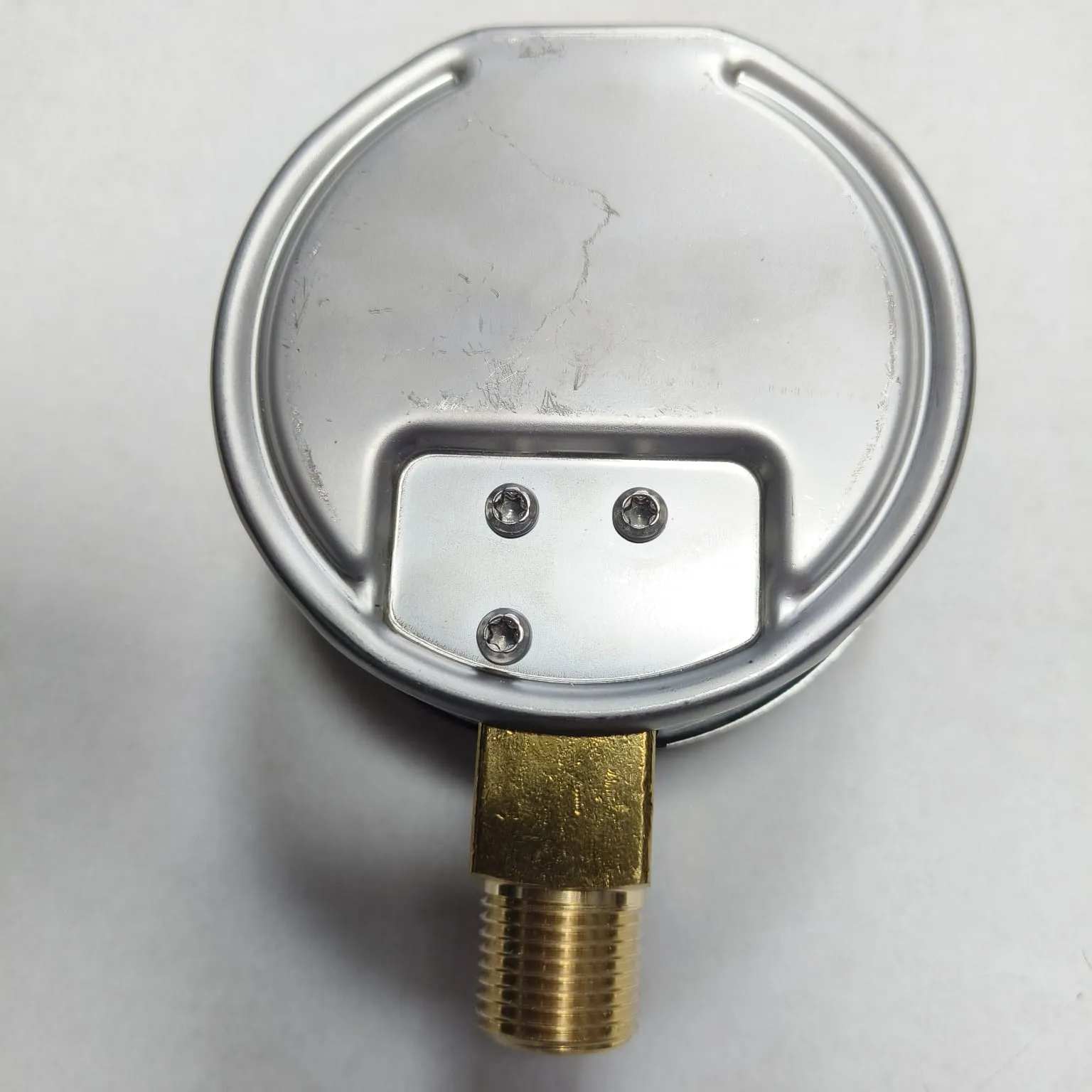

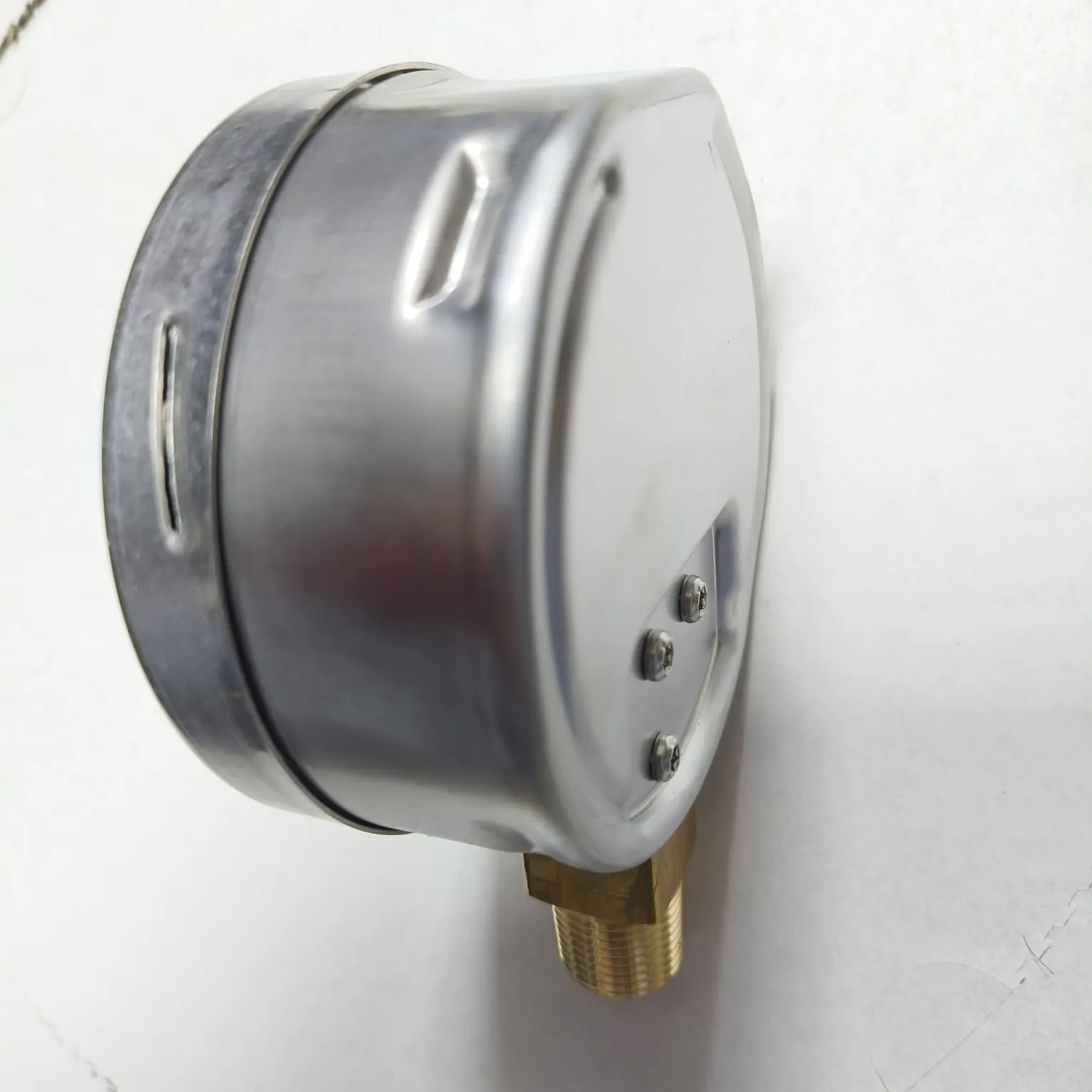

  • Stainless steel case with cam-ring (bayonet) bezel and flat glass window
  • Accuracy class 1.6 to EN 837-3
  • Typical ambient temperature -20…+60 °C, medium temperature up to +100 °C
  • High resolution at low pressures for accurate draft and level indication
  • Made in Switzerland.

Typical Applications

  • Draft and chimney pressure monitoring in boilers, heaters and flues
  • Filter and blower differential pressure indication at very low pressures
  • Sensitive low-pressure pneumatic control and monitoring
  • Level measurement in open tanks using mmWC indication at low ranges
  • Laboratory and environmental monitoring of ultra-low gas pressures

Downloads

Wika Datasheet 84272199.pdf

pdf
Download

Wika 612.20 Model Datasheet.pdf

pdf
Download

Wika 612.20 Model Technical Data.pdf

pdf
Download

Wika Pressure Gauge Operating Instructions.pdf

pdf
Download

Specifications

Model
612.20.100
Pressure Range
0…60 mbar
Dial Size
100 mm (4")
Process Connection
1/2" Male NPT, Lower Mount
Accuracy class
Class 1.6 to EN 837-3
Case Material
Stainless steel case with cam-ring (bayonet) bezel
Wetted parts
Copper alloy capsule element and process connection
Window
Flat instrument glass
Gauge Type
Low-pressure capsule gauge
Ambient temperature
-20…+60 °C
Ingress Protection
IP54
Media Compatibility
Dry, non-aggressive gases that do not corrode copper alloy
2nd Scale or Special Scale
mmWC (red)
