Wika Capsule Pressure Gauge Model 612.20.100, 0…300 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272196

Part Number : 84272196

Brand :
WIKA

Industrial capsule pressure gauge designed for very low pressure measurement in dry, gaseous, and non-aggressive media. It uses a proven capsule measuring system and is widely suited for vacuum, medical, laboratory, environmental, and filter monitoring applications.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all

KWD 50.000

Quantity
Description
Specifications
Downloads
Related products

Description

The WIKA 612.20.100 capsule pressure gauge provides accurate measurement of low pressures from 0…300 mbar using a copper alloy capsule measuring system. A 100 mm dial with 0…300 mbar primary scale and red mmWC secondary scale allows easy reading of pressure in mbar and water column units. The instrument is built with a stainless steel case and cam-ring (bayonet) bezel, flat instrument glass window and 1/2" NPT lower Mount process connection, offering a rugged housing for industrial, HVAC and environmental applications. Design and performance are based on EN 837-3 with class 1.6 accuracy and typical permissible ambient temperatures from -20…+60 °C. This configuration is well suited for low-pressure pneumatic systems, filter monitoring and level indication where medium pressure ranges up to 300 mbar are required.

Key Features

  • Capsule pressure gauge, industrial series model 612.20.100 for ultra-low pressures
  • Dual scale 0…300 mbar primary & secondary scale mmWC (red).

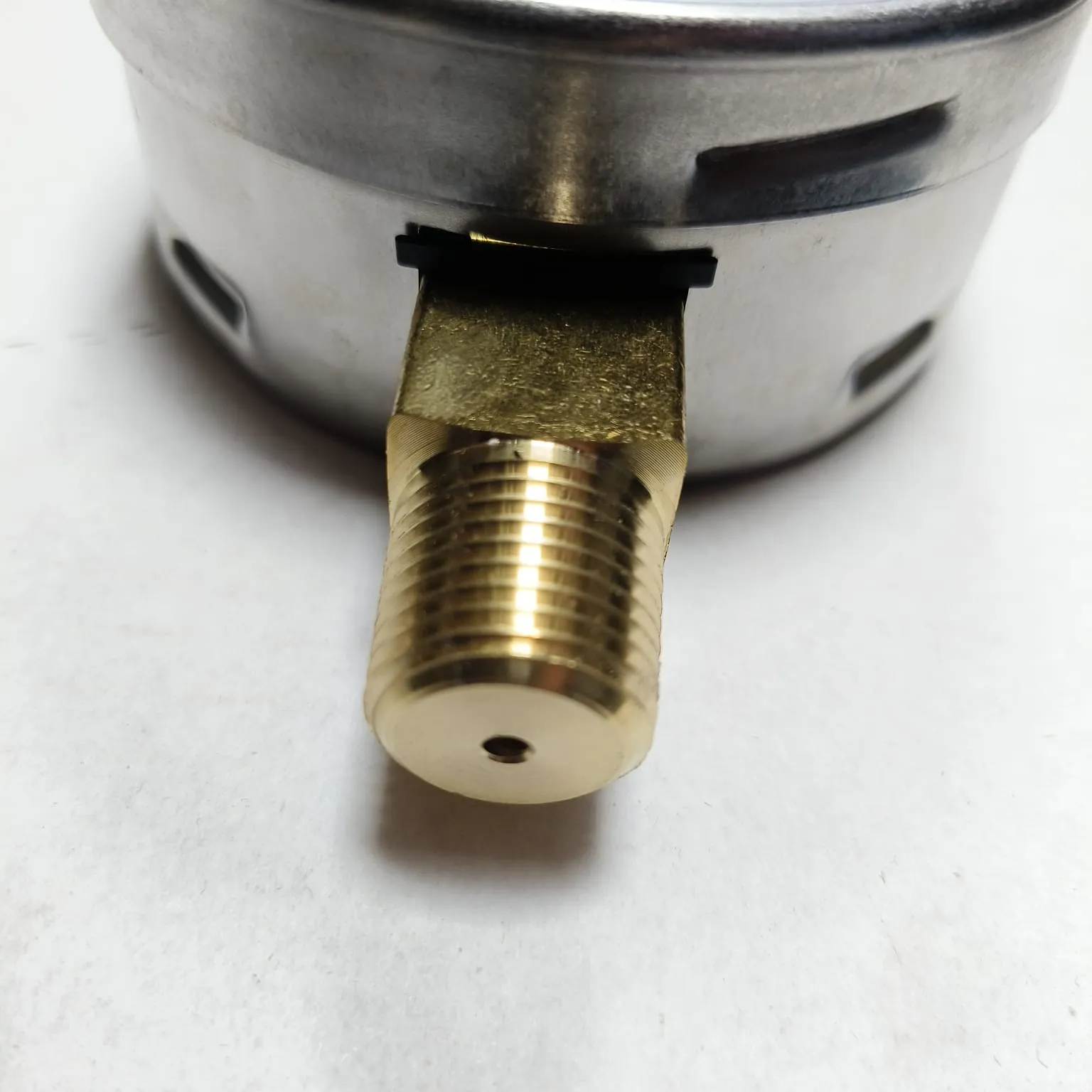

  • 1/2" NPT lower Mount process connection
  • Copper alloy capsule measuring system for dry, non-aggressive gases

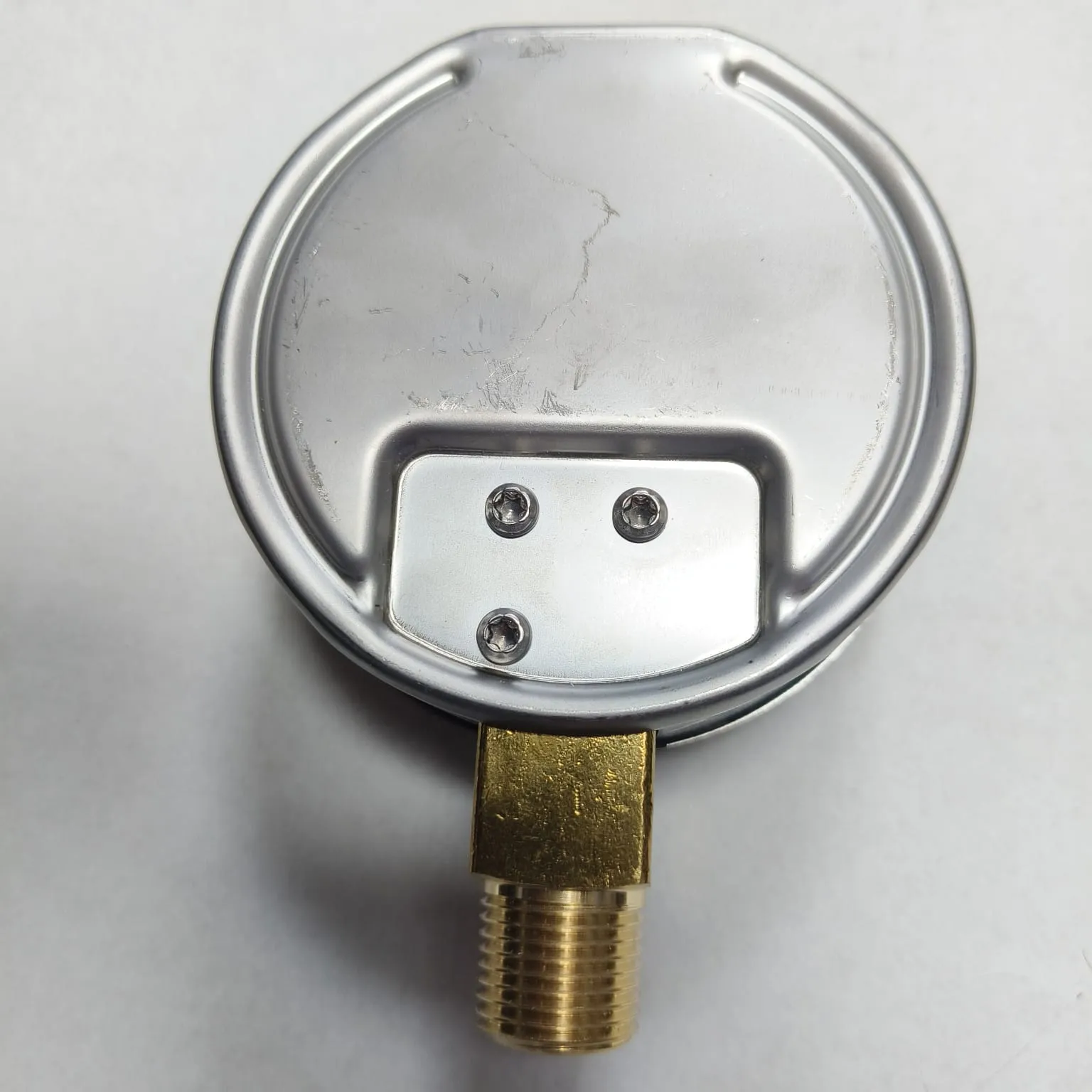

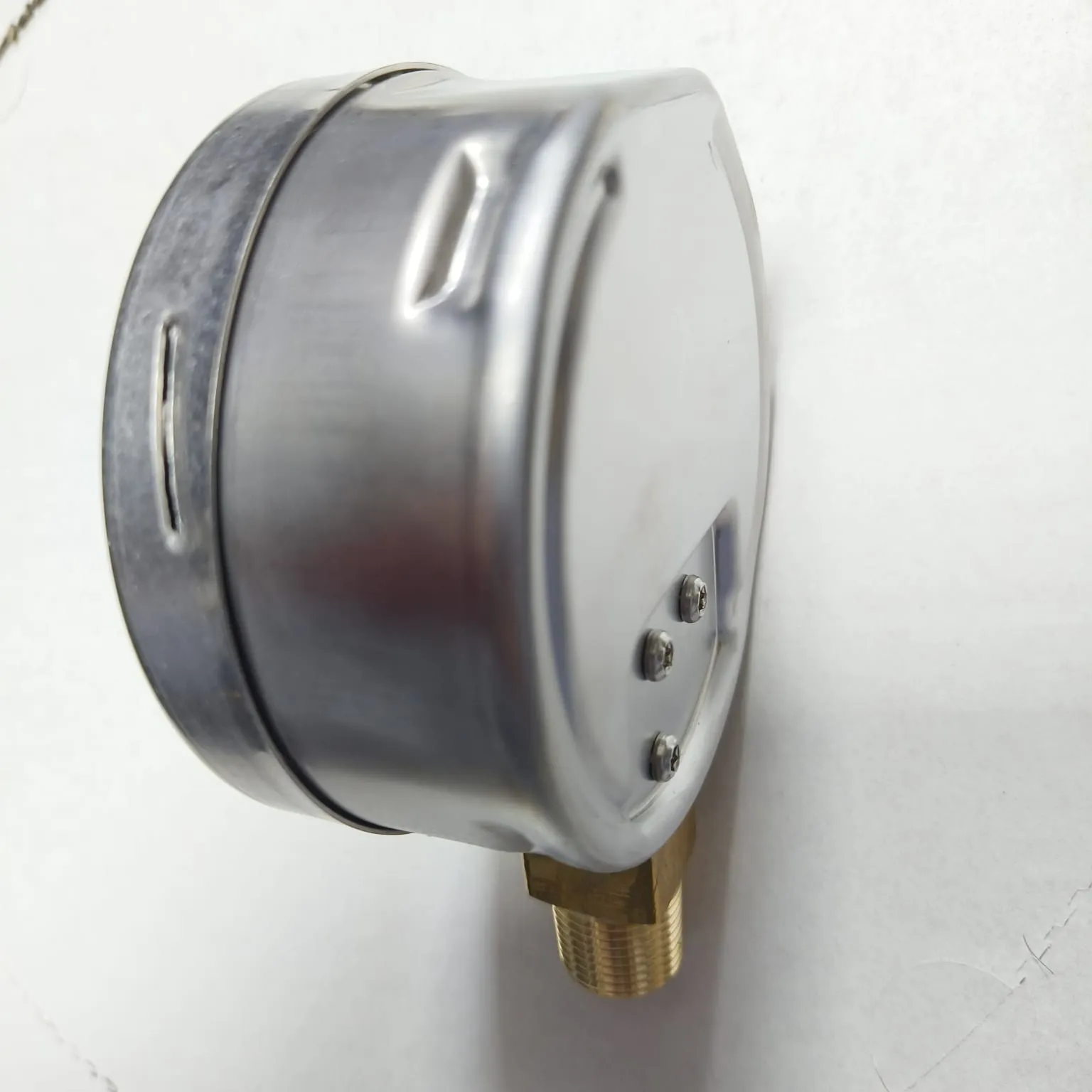

  • Stainless steel case with cam-ring (bayonet) bezel and flat glass window
  • Accuracy class 1.6 to EN 837-3
  • Typical ambient temperature -20…+60 °C, medium temperature up to +100 °C
  • High resolution at low pressures for accurate draft and level indication
  • Made in Switzerland.

Typical Applications

  • Draft and chimney pressure monitoring in boilers, heaters and flues
  • Filter and blower differential pressure indication at very low pressures
  • Sensitive low-pressure pneumatic control and monitoring
  • Level measurement in open tanks using mmWC indication at low ranges
  • Laboratory and environmental monitoring of ultra-low gas pressures

Downloads

Wika Datasheet 84272196.pdf

pdf
Download

Wika 612.20 Model Datasheet.pdf

pdf
Download

Wika 612.20 Model Technical Data.pdf

pdf
Download

Wika Pressure Gauge Operating Instructions.pdf

pdf
Download

Specifications

Model
612.20.100
Pressure Range
0…300 mbar
Dial Size
100 mm (4")
Process Connection
1/2" Male NPT, Lower Mount
Accuracy class
Class 1.6 to EN 837-3
Case Material
Stainless steel case with cam-ring (bayonet) bezel
Wetted parts
Copper alloy capsule element and process connection
Window
Flat instrument glass
Gauge Type
Low-pressure capsule gauge
Ambient temperature
-20…+60 °C
Ingress Protection
IP54
Media Compatibility
Dry, non-aggressive gases that do not corrode copper alloy
2nd Scale or Special Scale
mmWC (red)
