Wika Bourdon Tube Pressure Gauge Model 232.50.160, 0...20,000 PSI, 160 mm (6") Dial, 1/2" NPT Connection, Lower Back Mount, Stainless Steel Body & Wetted Parts, Class 1.0, 84262768

Part Number : 84262768

Brand :
WIKA

Wika Bourdon Tube Pressure Gauge Model 232.50.160, 0...20,000 PSI, 160 mm (6") Dial, 1/2" NPT Connection, Lower Back Mount, Stainless Steel Body & Wetted Parts, Class 1.0

View all

KWD 60.000

Quantity

Shipping will be calculated at checkout after you enter delivery address.

In stock.

Description
Specifications
Downloads
Related products

Description

Wika Model 232.50.160 Bourdon tube pressure gauge with 0...20,000 PSI measuring range, designed for industrial and process applications that require a robust stainless steel construction and dual psi/bar scale. The 160 mm (6") dial offers excellent readability, while the 1/2" NPT lower back mount process connection simplifies installation on panels, manifolds and skids. The gauge features a full stainless steel case and 316L wetted parts, laminated safety glass window, IP65 ingress protection and accuracy class 1.0 to EN 837-1 / ASME B40.100. Suitable for ambient temperatures from -40…+60 °C and media temperatures up to +200 °C.

Features

    • Full stainless steel case and wetted parts for aggressive media
    • 160 mm (6") dial with dual psi bar scale (red inner scale)
    • Measuring range 0 to 20,000 PSI for process and utility lines

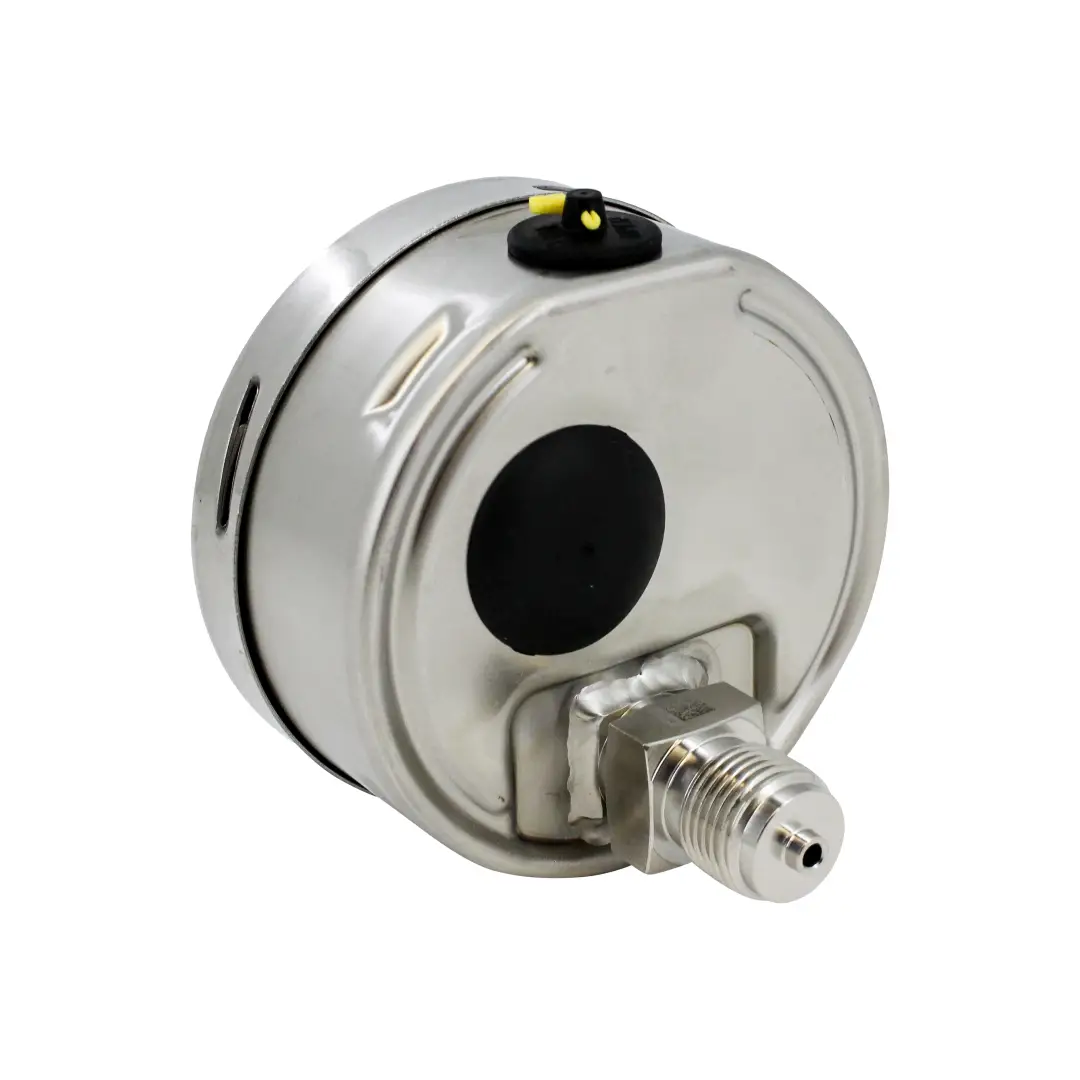

    • 1/2" NPT lower back mount process connection
    • Accuracy class 1.0 (EN 837-1 / ASME B40.100)
    • Laminated safety glass window with high impact resistance
    • IP65 ingress protection
    • Ambient temperature range -40 to +60 °C and medium temperature up to +200 °C

    Applications

      • Chemical and petrochemical process lines
      • Oil and gas skids and utility stations
      • Water and wastewater treatment plants
      • Power generation and boiler auxiliaries
      • General industrial machinery and OEM equipment
      • Compressed air, gas and hydraulic circuits

      Benefits

        • Long service life in corrosive and harsh environments
        • Reliable measurement thanks to robust Bourdon tube system
        • Extra large 160 mm (6") dial improves readability from a distance
        • Standardised 1/2" NPT lower back mount simplifies replacement and stocking
        • Clear dual scale reduces operator error

        Downloads

        Wika Datasheet 84262768.pdf

        pdf
        Download

        Wika Pressure Gauge Model 232.50 Datasheet.pdf

        pdf
        Download

        Specifications

        Model
        232.50.160
        Measuring range
        0...20,000 PSI (primary scale in psi, secondary bar scale in red)
        Pressure Type
        Gauge pressure
        Nominal Dial Size
        160 mm (6")
        Process Connection
        1/2" NPT lower back mount
        Case Material
        Stainless steel
        Wetted parts
        Stainless steel 316L measuring system
        Accuracy class
        Class 1.0, NS 160
        Window
        Laminated safety glass
        Ingress Protection
        IP65
        Ambient temperature
        -40…+60 °C
        Permissible medium temperature
        Up to +200 °C
