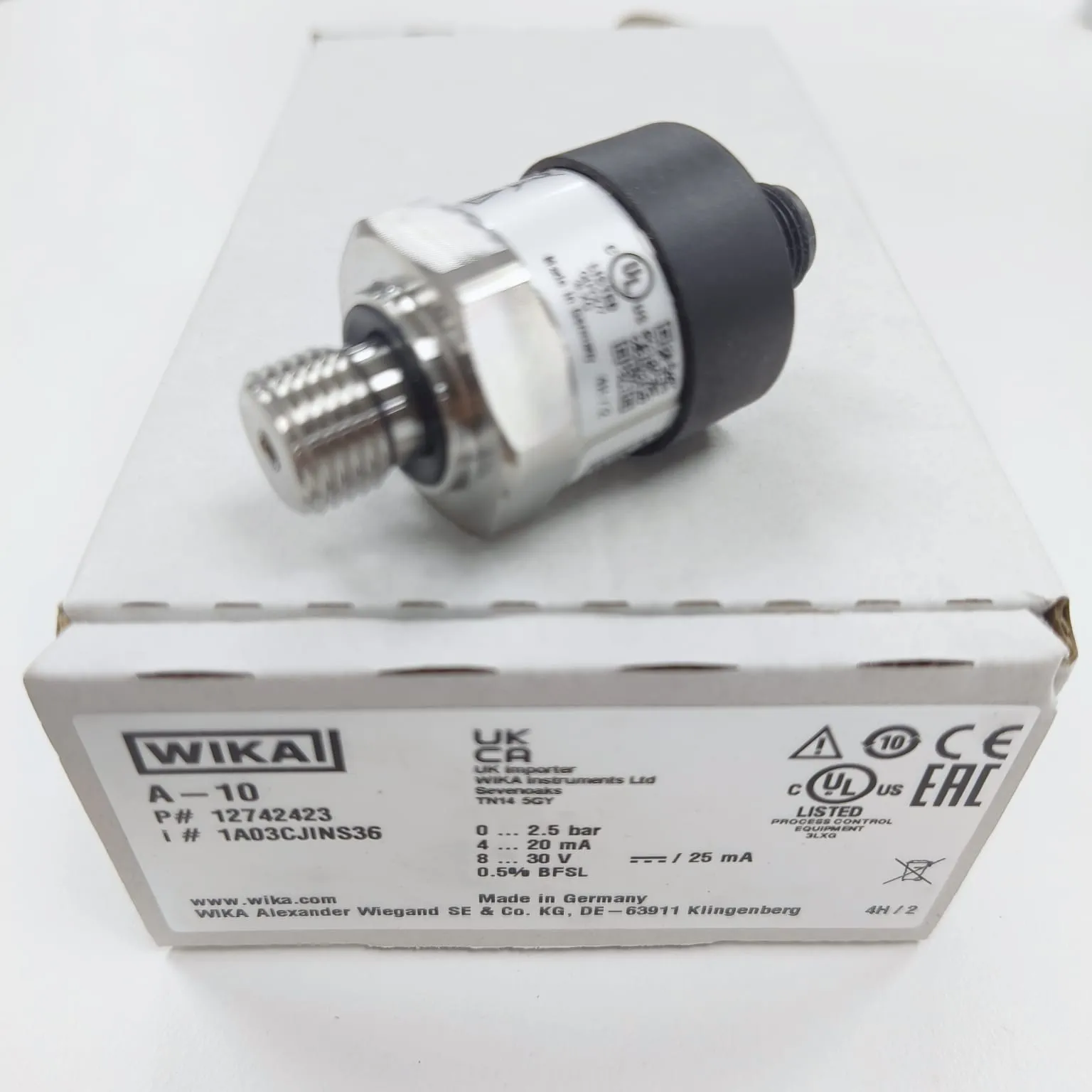

WIKA A-10 Pressure Transmitter, 0...2.5 Bar Gauge, G 1/4 A DIN EN ISO 1179-2 Connection, Circular Connector M12x1, 4-pin, 12742423
Part Number : 12742423
Brand :
![WIKA]()
The WIKA A-10 pressure transmitter is a field-proven all-rounder for reliable pressure measurement in general industrial environments. It converts the measured pressure into a standard electrical output for PLCs, controllers and monitoring systems, enabling stable, repeatable process control and machine protection. With compact, rugged construction and wide configuration possibilities, it integrates easily into OEM equipment and plant engineering wherever dependable pressure feedback is required.
Serving Kuwait, Saudi Arabia and entire GCC with express delivery.
View allKWD 60.000
Shipping : KWD 10.00
Description
WIKA A-10 Pressure Transmitter measuring 0...2.5 bar gauge with G 1/4 A DIN EN ISO 1179-2 Male Connection and Circular Connector M12x1, 4-pin and converts pressure into a stable 4...20 mA, 2-wire signal for PLC/SCADA and industrial control loops. Designed as a field-proven all-rounder for general industrial applications, the A-10 is offered across many measuring ranges and configurable variants for straightforward integration into different machine and plant designs. Per WIKA data sheet PE 81.60, it uses robust stainless-steel wetted parts (316L), supports auxiliary power 8...30 V DC (option up to 8…35 V DC on request) for 4...20 mA versions, and with an M12 x 1 circular connector provides up to IP67 ingress protection when mated appropriately. Depending on the measuring range, service life is specified up to 100 million load cycles, and non-linearity is specified to ≤ ±0.5 % of span (with optional improved non-linearity), making it well-suited for machine building, measurement and control technology, hydraulics and pneumatics, pumps and compressors, and shipbuilding.
Key Features
- Excellent quality and proven technology
- Exceptionally large variety covers almost all applications
- Other measuring ranges on request, including inWC, mbar, kg/cm², MPa and kPa.
- Made in Germany
Applications
- Machine building
- Measurement and control technology
- Hydraulics and pneumatics
- Pumps and compressors
- Ship building
Specifications
