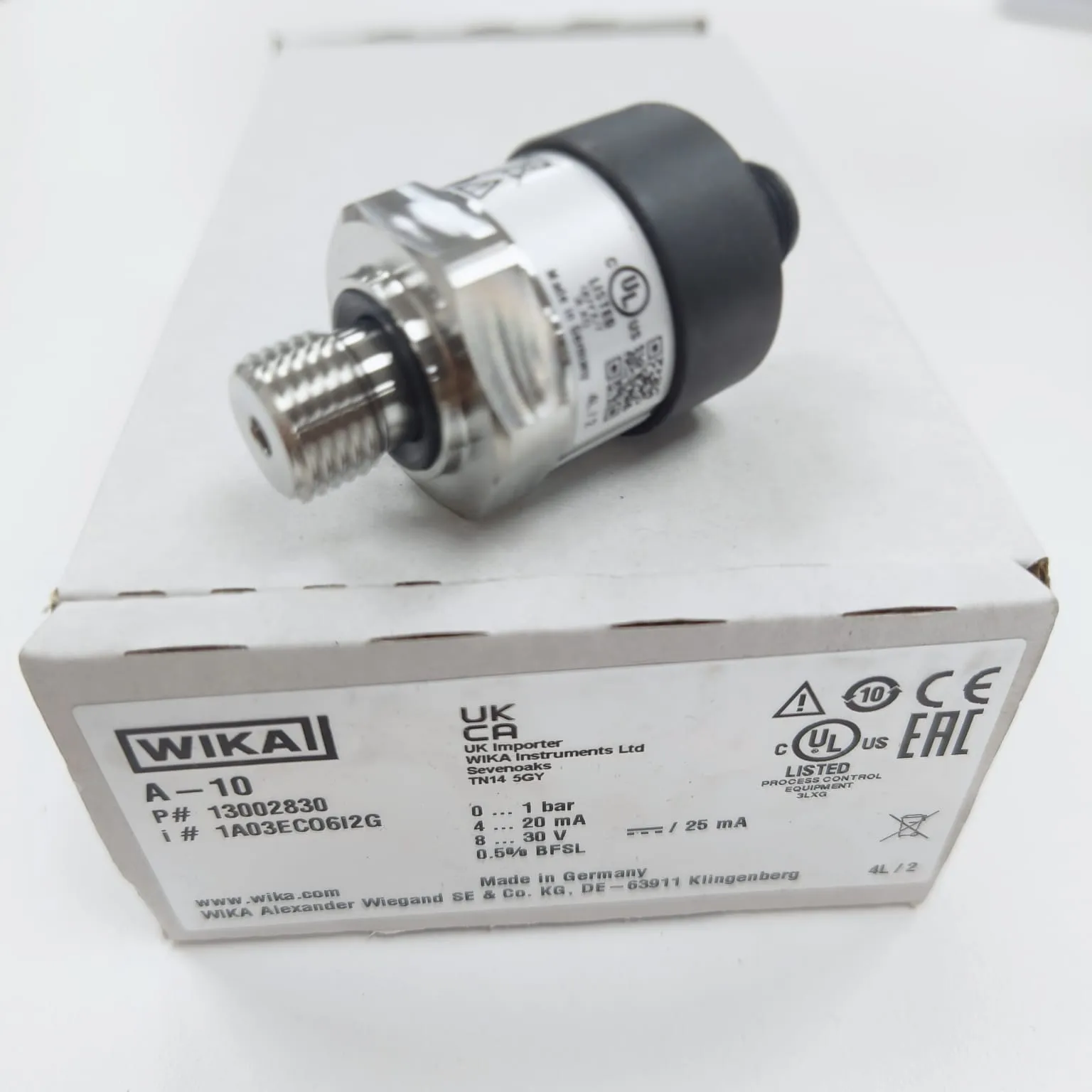

WIKA A-10 Pressure Transmitter, 0...1 Bar Gauge, G 1/4 A DIN EN ISO 1179-2 Connection, Circular Connector M12x1, 4-pin, 13002830

Part Number : 13002830

Brand :
WIKA

The WIKA A-10 pressure transmitter is a field-proven all-rounder for reliable pressure measurement in general industrial environments. It converts the measured pressure into a standard electrical output for PLCs, controllers and monitoring systems, enabling stable, repeatable process control and machine protection. With compact, rugged construction and wide configuration possibilities, it integrates easily into OEM equipment and plant engineering wherever dependable pressure feedback is required.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all

KWD 60.000

Quantity

Shipping : KWD 10.00

Description
Specifications
Downloads
Related products

Description

WIKA A-10 Pressure Transmitter measuring 0...1 bar gauge with G 1/4 A DIN EN ISO 1179-2 Male Connection and Circular Connector M12x1, 4-pin and converts pressure into a stable 4...20 mA, 2-wire signal for PLC/SCADA and industrial control loops. Designed as a field-proven all-rounder for general industrial applications, the A-10 is offered across many measuring ranges and configurable variants for straightforward integration into different machine and plant designs. Per WIKA data sheet PE 81.60, it uses robust stainless-steel wetted parts (316L), supports auxiliary power 8...30 V DC (option up to 8…35 V DC on request) for 4...20 mA versions, and with an M12 x 1 circular connector provides up to IP67 ingress protection when mated appropriately. Depending on the measuring range, service life is specified up to 100 million load cycles, and non-linearity is specified to ≤ ±0.5 % of span (with optional improved non-linearity), making it well-suited for machine building, measurement and control technology, hydraulics and pneumatics, pumps and compressors, and shipbuilding.

Key Features

  • Excellent quality and proven technology
  • Exceptionally large variety covers almost all applications
  • Other measuring ranges on request, including inWC, mbar, kg/cm², MPa and kPa.
  • Made in Germany

Applications

  • Machine building
  • Measurement and control technology
  • Hydraulics and pneumatics
  • Pumps and compressors
  • Ship building

Downloads

Datasheet A10 13002830.pdf

pdf
Download

Wika A-10 Model Datasheet.pdf

pdf
Download

Wika A-10 Operating Instructions.pdf

pdf
Download

Specifications

Measuring range
0...1 Bar Gauge
Output Signal
4 ... 20 mA, 2-wire
Power Supply
8...30 V DC
Wetted parts
Stainless Steel 316 L
Process Connection
G 1/4 A DIN EN ISO 1179-2 Male Connection
Sealing material
NBR
Electrical connection
Circular Connector M12x1, 4-pin
Pin assignment
U+=1, U-=3
Permissible medium temperature
0...+80 °C
Approvals
cULus
Non-linearity
0.5% BFSL
Accuracy at room temperature
≤ ±1.2 % of span
