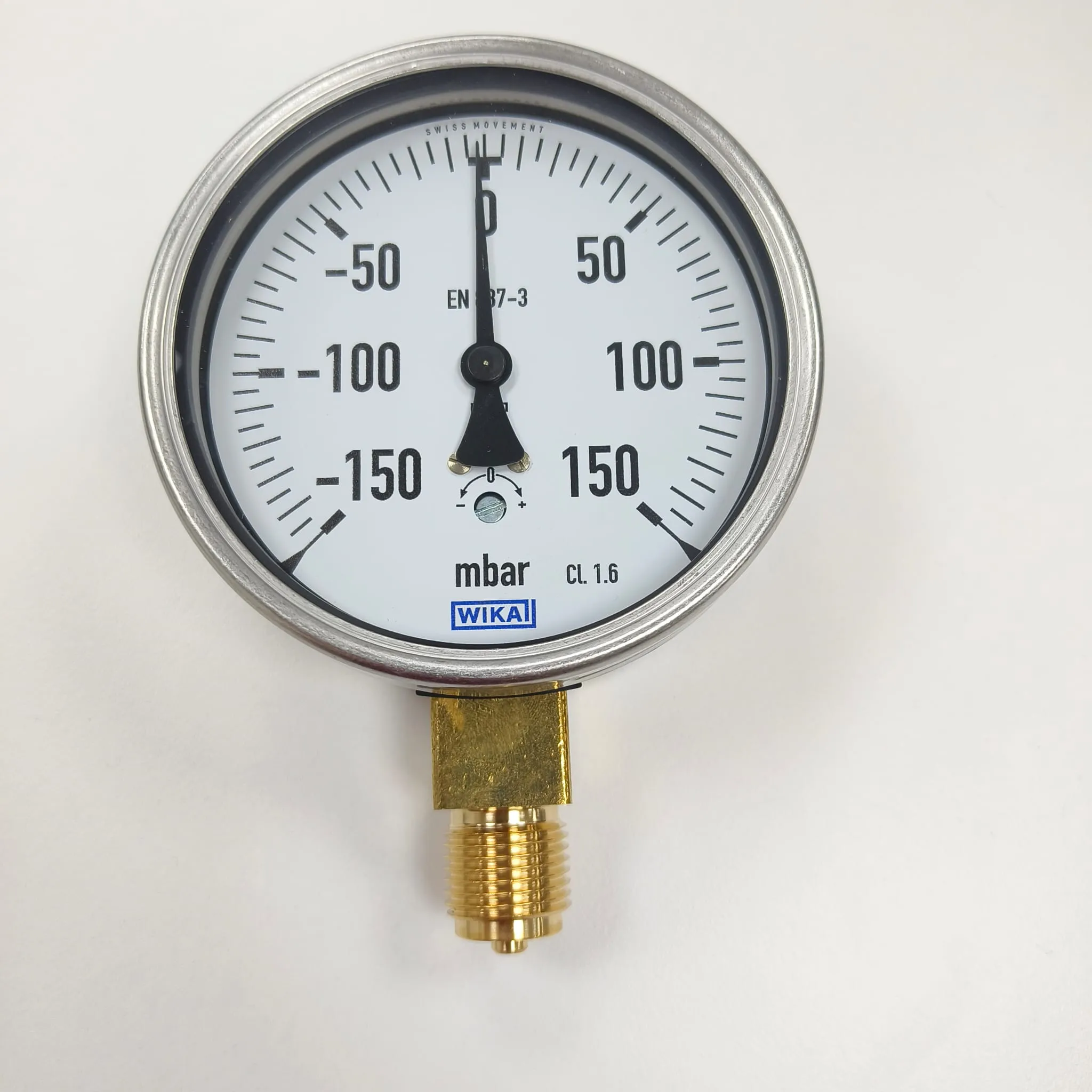

WIKA 612.20.100 Capsule Pressure Gauge, -150 to 150 mbar, 4" Dial, G 1/2" BSP Connection, Bottom Mount, 40014398
Part Number : 40014398
Brand :
![WIKA]()
Industrial capsule pressure gauge for very low pressure and vacuum measurement in gaseous, dry and non aggressive media, featuring stainless steel case and bayonet bezel with IP54 protection and front zero point correction for easy setting during installation
- Range: -150 to 150 mbar

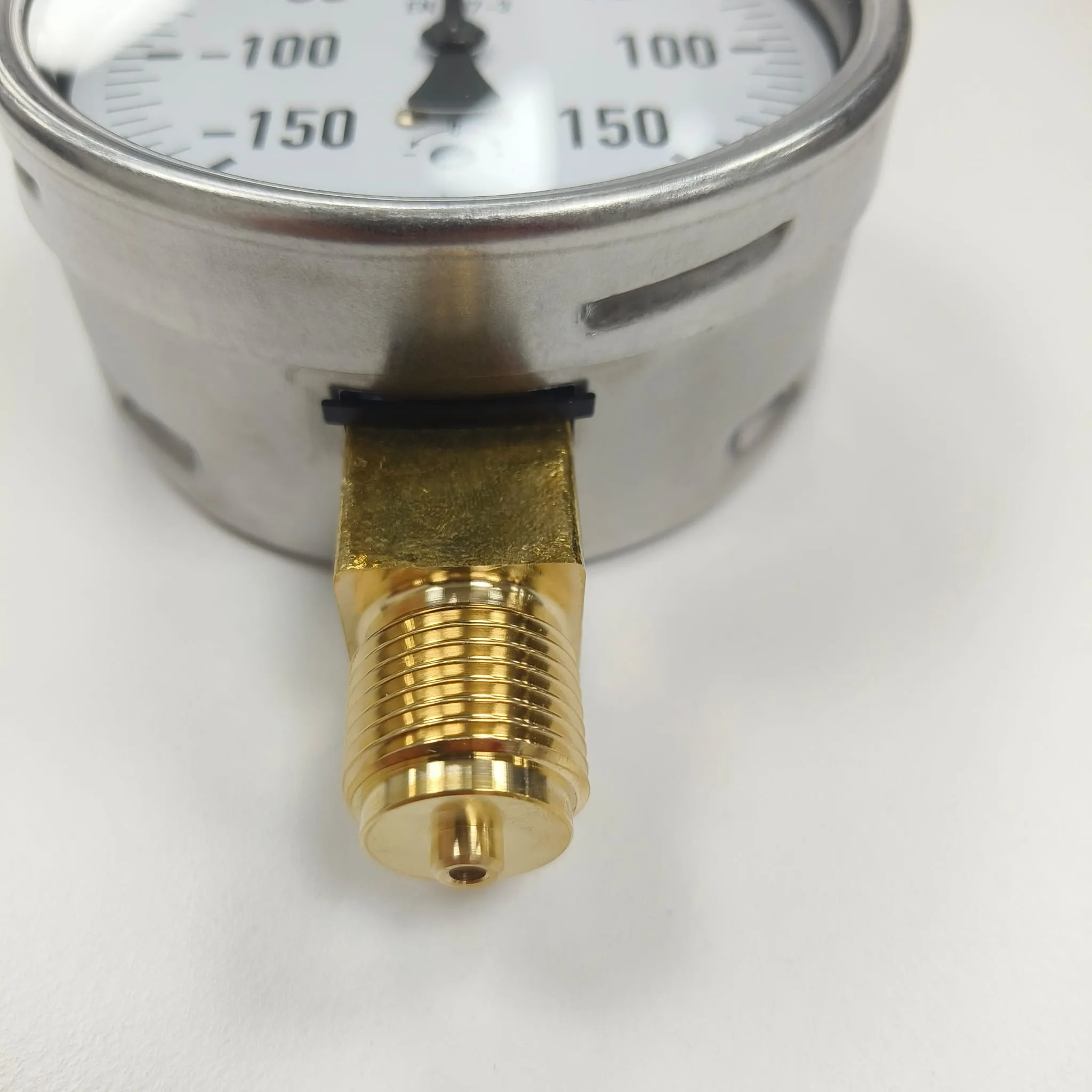

- Connection: G 1/2 B bottom connection
- Accuracy: Class 1.6 to EN 837-3
Serving Kuwait, Saudi Arabia and entire GCC with express delivery.
View allKWD 68.000
Description
WIKA capsule pressure gauge model 612.20.100 is designed for stable indication of very low pressures and vacuum using a proven capsule measuring system where capsule expansion is transmitted to the movement and displayed on the dial. It is intended for gaseous, dry and non aggressive media and is commonly used in medical, vacuum, environmental and laboratory duties as well as contents measurement and filter monitoring. The instrument is built with a stainless steel case and bayonet bezel for durable everyday service, while the process connection is made from copper alloy and supplied as a G 1/2 B bottom mount for standard installation. This configuration provides a clear NS 100 dial with a -150 to 150 mbar vacuum and pressure scale, front zero point correction for quick setting during commissioning, IP54 ingress protection, EN 837-3 design marking and accuracy class 1.6 for dependable local indication.
Key Features
- Zero point correction in front
- Case from stainless steel
- Robust design and ingress protection IP54
- Low scale ranges from 0 ... 6 mbar to 0 ... 600 mbar or 0 ... 2.4 inH2O to 0 ... 240 inH2O
Applications
- For gaseous, dry and non aggressive media in very low pressure and vacuum measurement
- Medical, vacuum, environmental and laboratory technology measurement points
- Contents measurement and filter monitoring where small pressure changes indicate blockage
- General low pressure monitoring in OEM equipment and plant utilities
Specifications
