Test Product (WIKA XSEL Bourdon Tube Gauge 232.34, 0-160 psi, Dual Scale psi/bar, 4.5 in Dial, 1/2 in NPT Bottom, 50403460)

Part Number : 50403460

Brand :
WIKA

Heavy duty Bourdon tube process pressure gauge engineered for chemical, petrochemical and general plant service, with 316L stainless steel wetted parts and a robust fiberglass reinforced thermoplastic case for excellent shock and vibration resistance, featuring a laminated safety glass window, adjustable pointer, IP65 ingress protection and factory prepared for liquid filling, built to meet ASME B40.100 Grade 2A accuracy requirements for reliable on site indication

  • Range: 0 to 160 psi with dual scale psi and bar

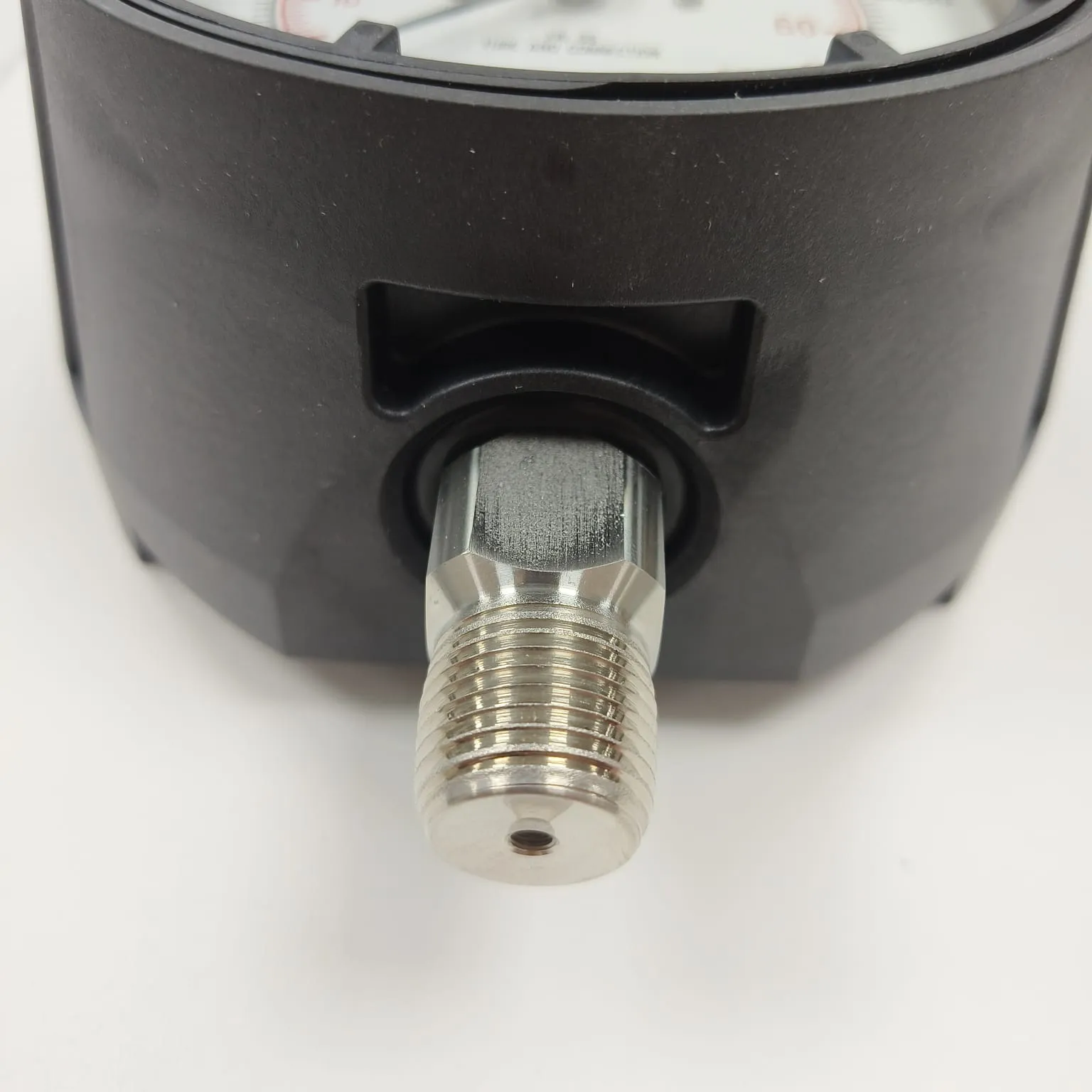

  • Connection: 1/2" NPT bottom connection

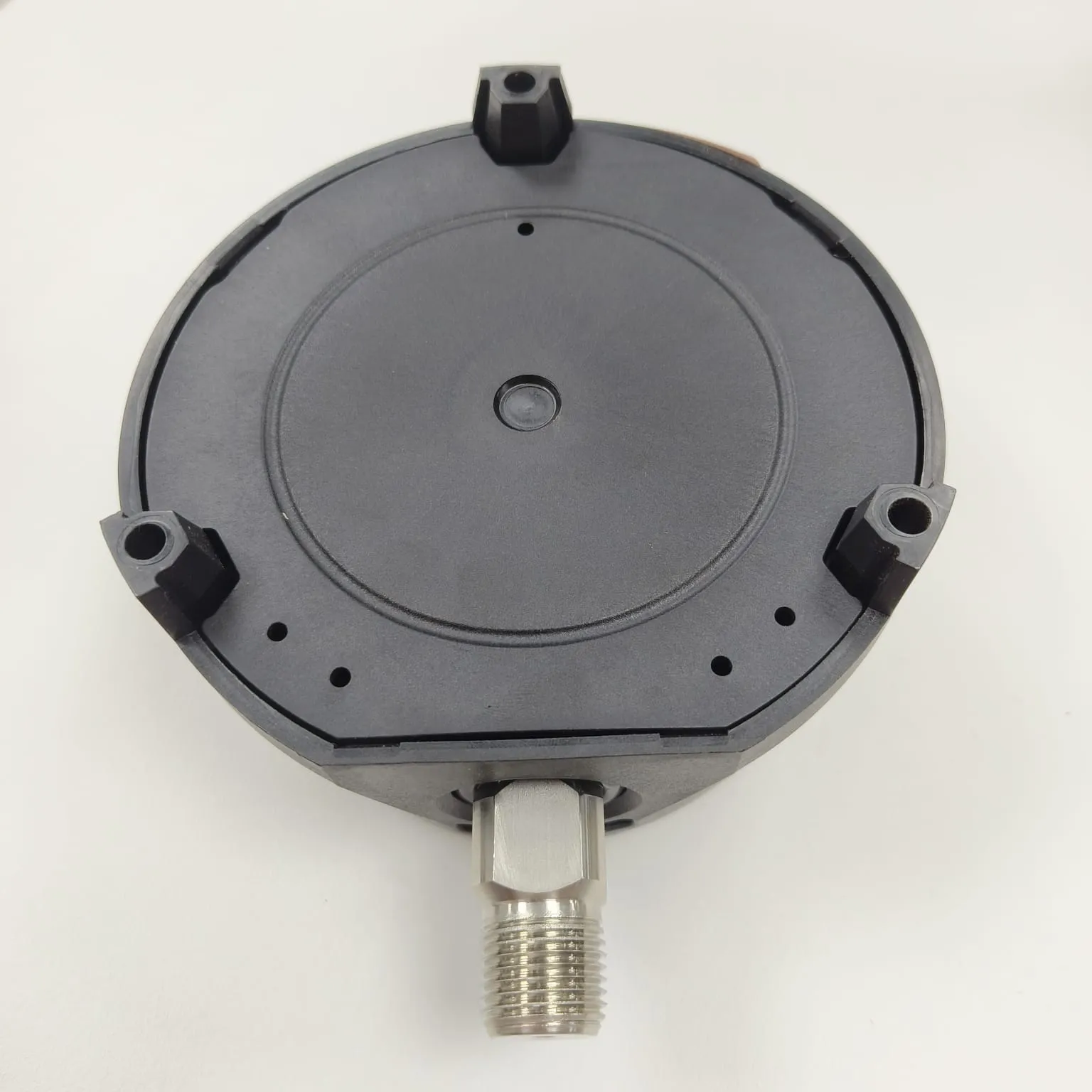

  • Build: XSEL safety pattern with blow-out back

View all

KWD 55.000

Quantity

Shipping : KWD 32.00

Description
Specifications
Related products

Description

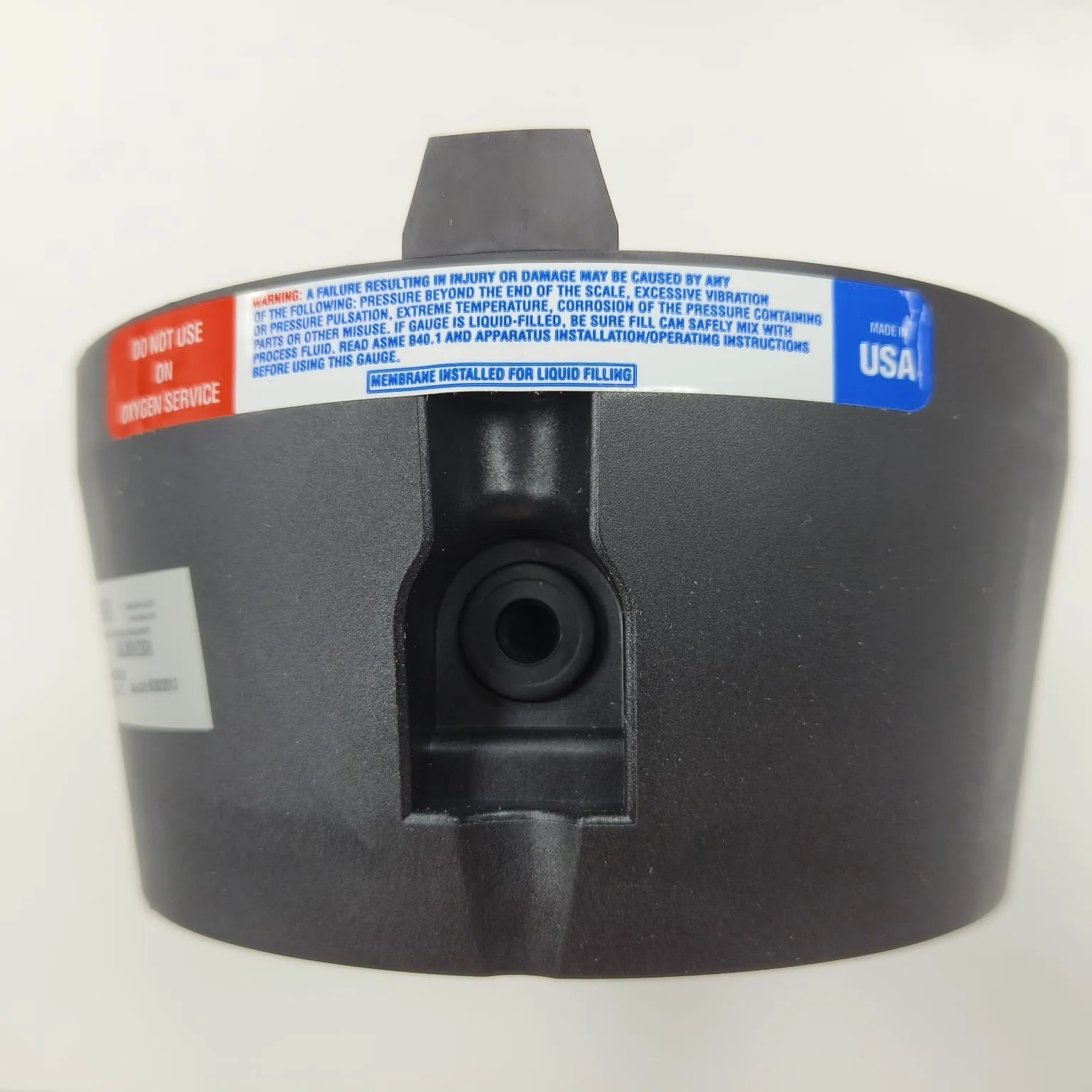

This WIKA XSEL Bourdon tube process pressure gauge model 232.34 4.5 is a safety pattern gauge built for demanding process service where operator protection and long term reliability matter. It provides a 0 to 160 psi measurement range with Dual scale in psi and bar, using a 4.5" dial and a 1/2 NPT Bottom connection. The design follows the XSEL safety concept with a solid front and blow out back, and the laminated safety glass window helps protect the dial in harsh environments. The case is Black Fiberglass Reinforced Thermoplastic (Pocan B4225) with a Threaded, Black Fiberglass Reinforced Thermoplastic (Pocan B4225) bezel, while the measuring system is stainless steel with Measuring System 316L wetted parts for corrosion resistance. Performance features include +/- 0.5% ASME B40.100 Grade 2A accuracy, IP 65 ingress protection, an adjustable pointer, and a stainless steel, D 0.6 restrictor for pressure damping. The gauge is supplied without and prepared for filling for liquid filling when required, and it is supplied in US-Standard execution.

Key Features

  • Stainless steel 316L measuring system with stainless tube and connection for corrosive service
  • Solidfront safety case with blowout back, designed to ASME B40.100 requirements

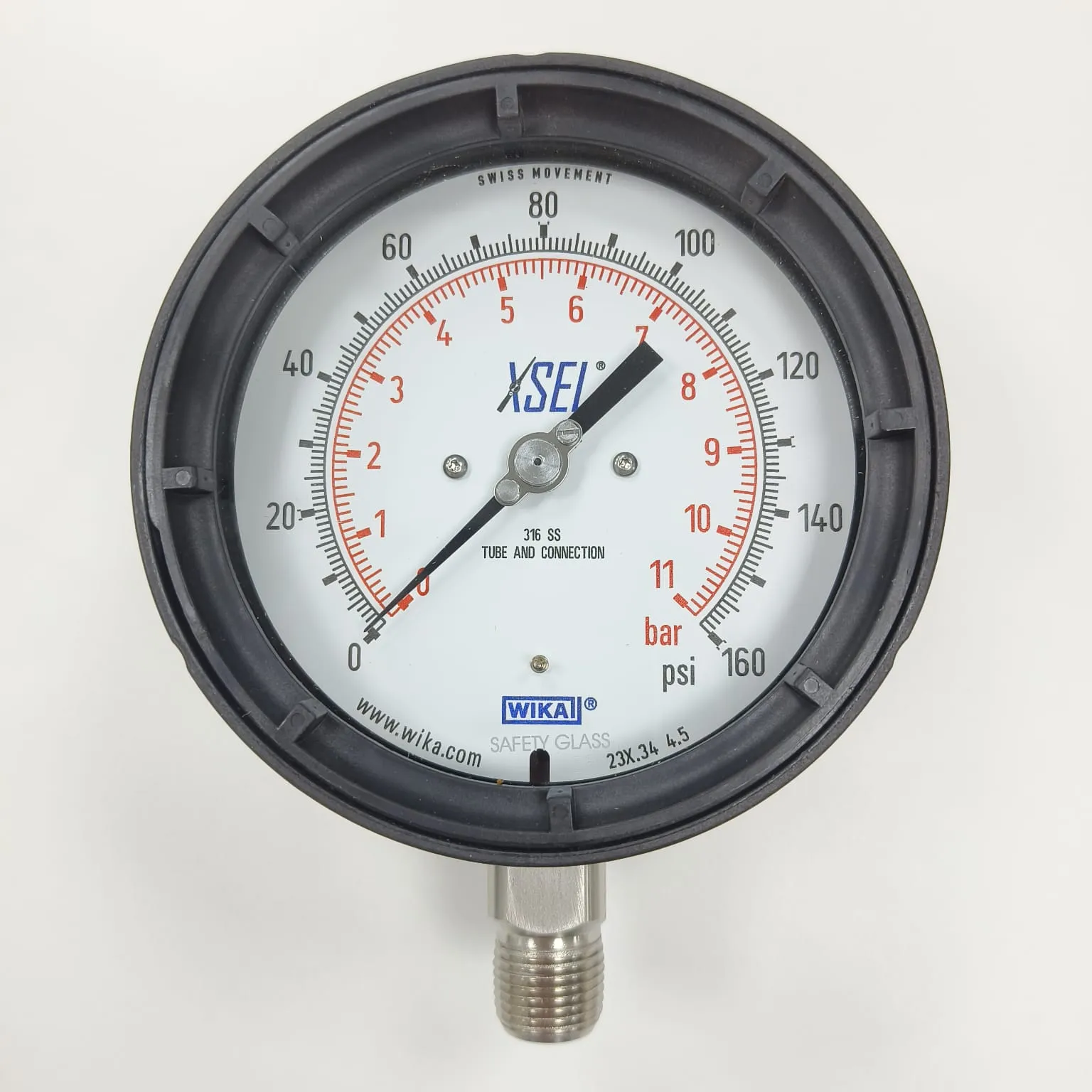

  • 4.5 in nominal size dial with 0 to 160 psi measuring range and dual scale psi and bar
  • Laminated safety glass window with adjustable pointer and stop pin at 6 o'clock
  • IP65 ingress protection for outdoor and washdown environments
  • Stainless steel restrictor with 0.6 mm orifice to help damp pressure spikes
  • Dial QR code for easy access to instrument specific information and documents
  • Made in USA

Applications

  • Highly dynamic pressure loads, pulsation and vibration
  • Chemical and petrochemical processing plants
  • Power plants and utilities, mining and heavy industry
  • Onshore and offshore skid packages and general plant construction
  • Aggressive gaseous or liquid media that are not highly viscous or crystallising

Specifications

Output signal ranges
sdfsdf
