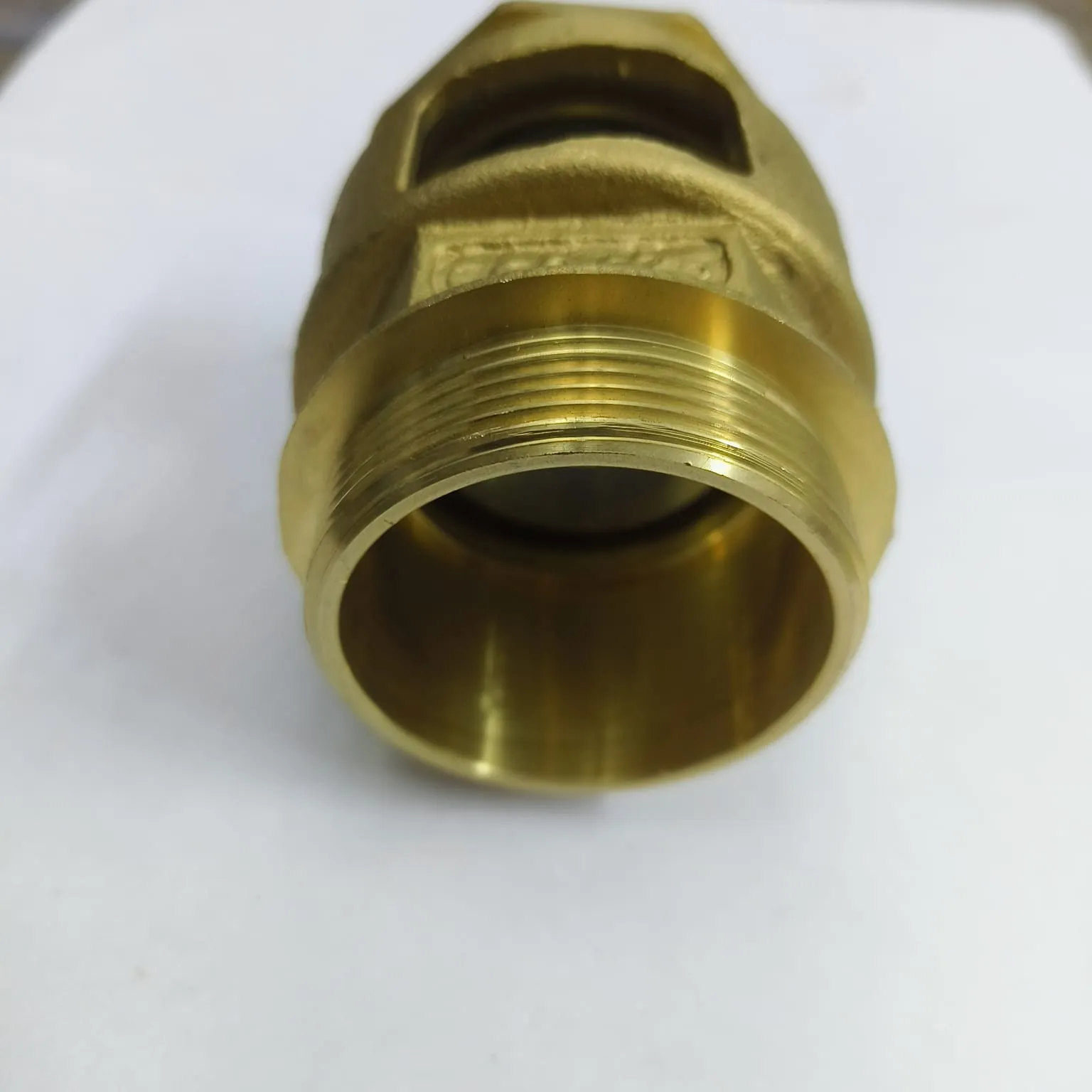

RIV 230 Opale Series Pressure Relief Valve with Free Discharge, 2" BSPP Inlet, 0.5–1.5 Bar, 050230000011

Part Number : 050230000011

Brand :
RIV

RIV 230 Opale is a spring operated pressure relief valve with free discharge, adjustable 0.5–1.5 bar, designed for low-pressure slurry tanker protection.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all

KWD 18.900

Quantity
Description
Specifications
Downloads
Related products

Description

RIV 230 Opale is a spring operated pressure relief valve with free discharge designed for low-pressure protection. It has a 2" ISO 228/1 (BSPP) threaded inlet and releases pressure through free discharge when the set point is reached. The adjustable relief pressure range is 0.5 to 1.5 bar (7–21 psi), and the maximum working pressure rating is 1.5 bar (21 psi) at room temperature. This valve is intended for gaseous discharge and is not suitable for the passage of liquids, especially with solids in suspension.

Key Features

  • Spring operated relief design supports low-pressure overpressure protection.
  • Adjustable set pressure range is 0.5–1.5 bar (7–21 psi) for on-site setting.
  • Maximum working pressure rating is 1.5 bar (21 psi) at room temperature.
  • Uses a 2" ISO 228/1 (BSPP) threaded inlet for standard installation.
  • Free discharge outlet provides direct venting when the set pressure is reached.
  • Setting can be sealed tamper-proof through the drilled tongues method.
  • Certified in accordance with PED 2014/68/EU.
  • Made in Italy.

Downloads

Datasheet Opale - RIV 230.pdf

pdf
Download

Riv_230_250_Setting_Instruction_UK.pdf

pdf
Download

Specifications

Series
RIV Opale 230
Valve Type
Spring operated, free discharge
Inlet port
2" ISO 228/1 (BSPP)
Body Material
Brass CB754S
Adjustable Pressure Range
0.5-1.5 bar (7-21 psi)
Max Working Pressure
1.5 bar (21 psi)
Temperature Range
0 to 180°C (without liquid)
Seal material
FKM
Compliance Standards
PED 2014/68/EU
Application size
Slurry tanker protection
