Mfg. Part No. : BSPG-V-150-S4S-S6S-S6S-S4S-T15NTM-(0-60)-PSI/BAR-DUS

SKU : PS600-00060-GG

Brand :
General Instruments

General Instruments Model BSPG-V pressure gauge is a stainless steel made Bourdon tube gauge designed for reliable local pressure indication in demanding industrial service. It is suitable for pump lines, compressor systems, hydraulic and pneumatic equipment and general process duties, offering clear readability and a dry case prepared for filling where vibration or dynamic pressure loads are present.

General Instruments (General Gauges) India - KOC, KNPC, Saudi Aramco, QatarEnergy, SABIC approved pressure gauges, thermometers & process instruments since 1966.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all
Quantity
In Stock  ·  20 available
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

General Instruments BSPG-V-150-S4S-S6S-S6S-S4S-T15NTM-(0-60)-PSI/BAR-DUS — General Instruments Pressure Gauge BSPG-V, 0...60 psi, 2nd Scale bar, 6" Dial, 1/2" Male NPT Lower Mount, SS Body & Parts, BSPG-V-150-S4S-S6S-S6S-S4S-T15NTM-(0-60)-PSI/BAR-DUS. Stocked by Indspare for Kuwait and GCC delivery.

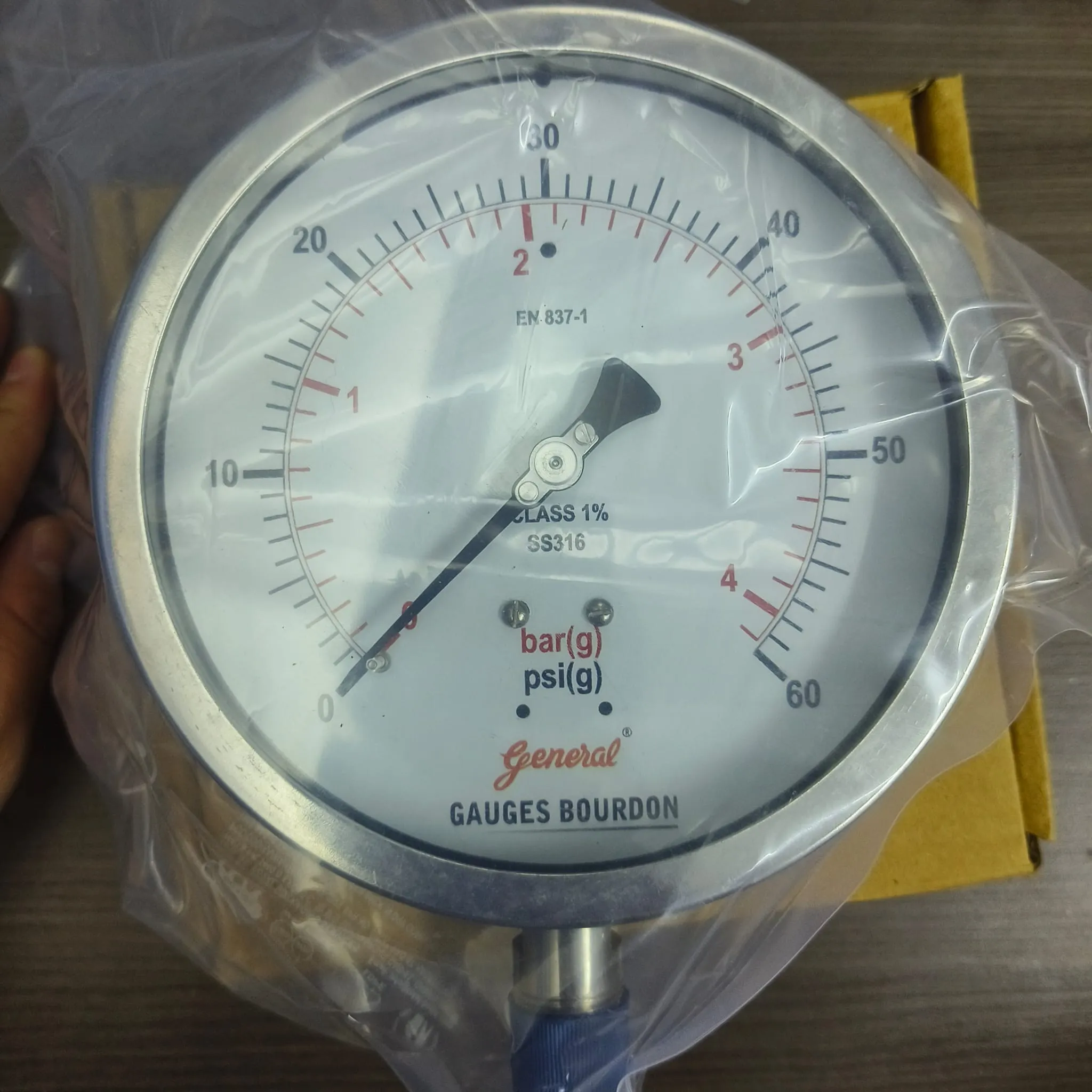

General Instruments pressure gauge Model BSPG-V is designed for reliable local pressure indication in demanding industrial service. The gauge uses a 6" / 150 mm dial with a 1/2" Male NPT lower connection for direct process installation. Stainless Steel Made, with shatterproof glass window, SS316 wetted parts and a dry case prepared for filling where vibration or dynamic pressure conditions require liquid filling. Measuring range is 0...60 psi with 2nd scale bar, accuracy class is Class 1.0, and the process gauge design is suitable for hydraulic lines, pneumatic systems, pump skids, compressor systems and general process duties.

Key Features

  • 6" / 150 mm dial for clear process pressure indication.
  • Primary psi scale with 2nd scale bar reference.
  • 1/2" Male NPT process connection for industrial installation.
  • SS Body & Parts with SS304 case and SS316 wetted parts.
  • Dry case, prepared for filling where vibration damping is required.
  • Class 1.0 accuracy with EN 837-1 pressure gauge standard.
  • Made in India.

Applications

  • Hydraulic and pneumatic pressure monitoring.
  • Pump, compressor and utility line pressure indication.
  • Industrial process skids and equipment panels.
  • General plant maintenance and replacement gauge requirements.

Downloads

General Pressure Gauges BSPG-100_150 mm Dial Datasheet.pdf

pdf
Download

Specifications

Model
BSPG-V
Measuring System
Bourdon Tube
Dial Size
150 mm / 6"
Measuring Range
0...60 psi
Secondary Scale
2nd scale bar
Process Connection
1/2" Male NPT
Mounting Position
Lower mount
Case Filling
Dry case, prepared for filling
Wetted Parts
SS316
Case Material
SS304
Accuracy Class
Class 1.0
Window
Shatterproof glass
Over Range
130% FSD
Pressure Gauge Standard
EN 837-1
Ambient Temperature Range
-20...+60°C
Blow Out Disc
Provided on top of case (Neoprene)
