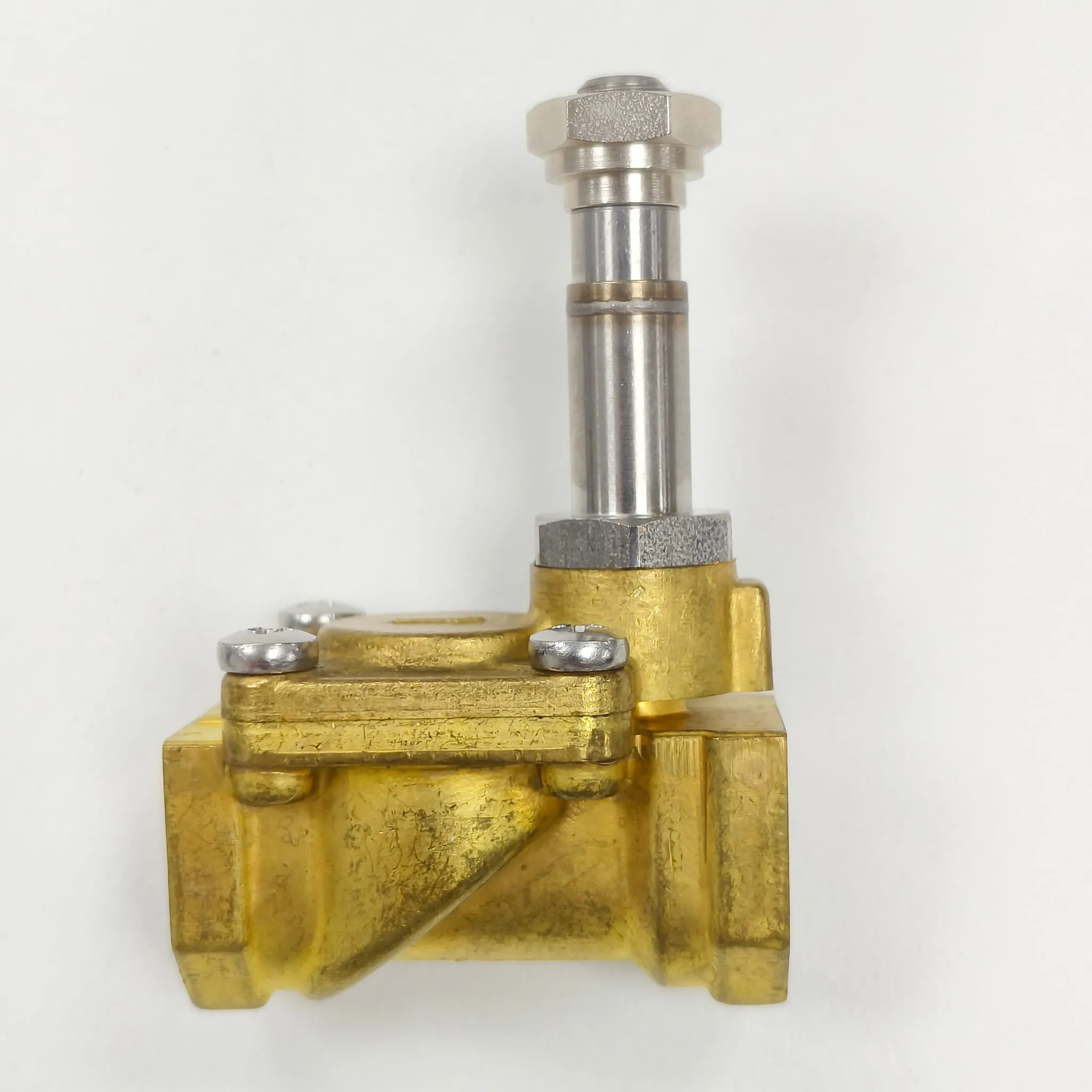

ACL 107 Series Brass Solenoid Valve, Servo-Assisted Diaphragm, 2-Way Normally Closed, FPM (Viton) Seal, G 3/8" Female BSPP Connection, E107CV10///

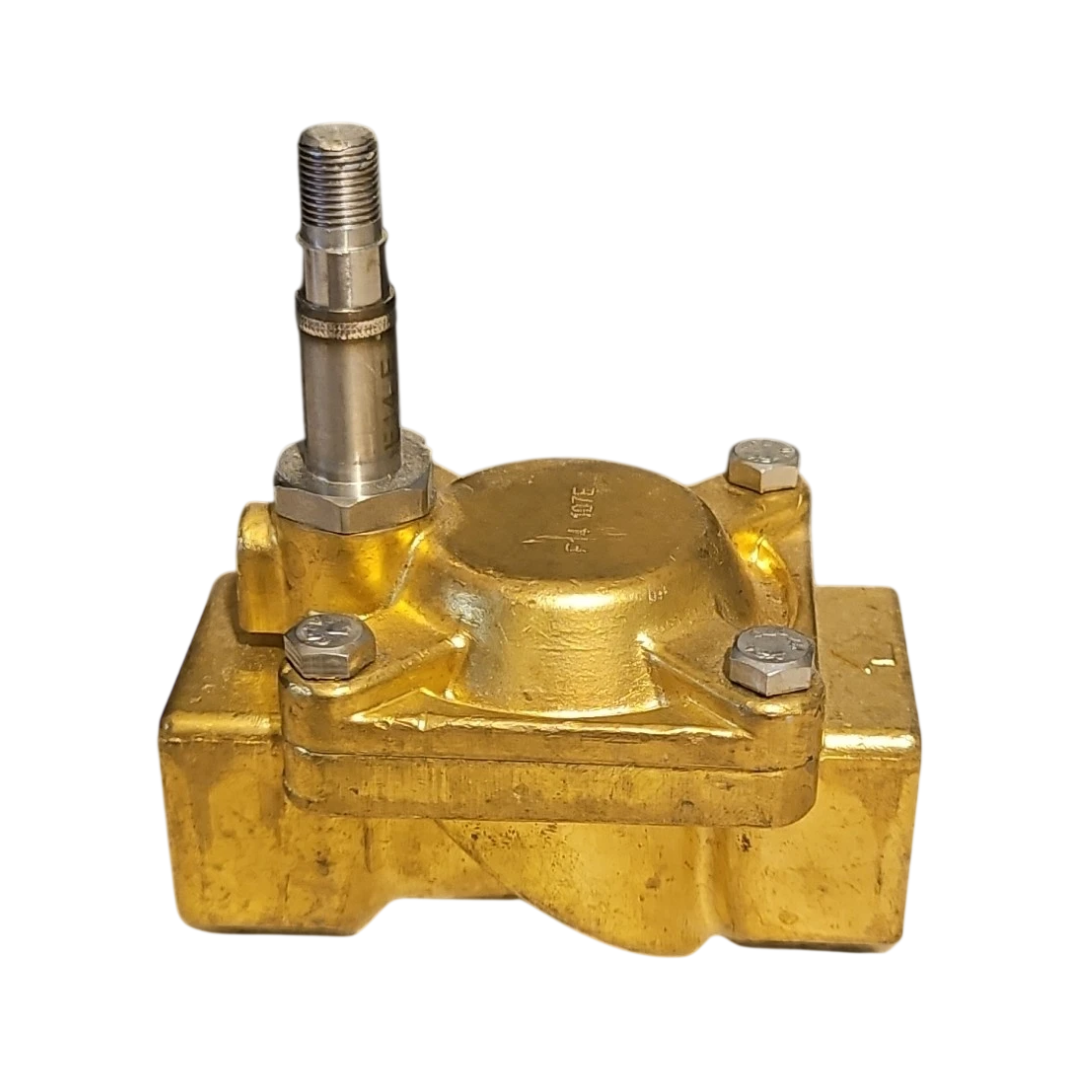

ACL 107 Series Brass Solenoid Valve, Servo-Assisted Diaphragm, 2-Way Normally Closed, FPM (Viton) Seal, G 3/8" Female BSPP Connection, E107CV10/// - image 2

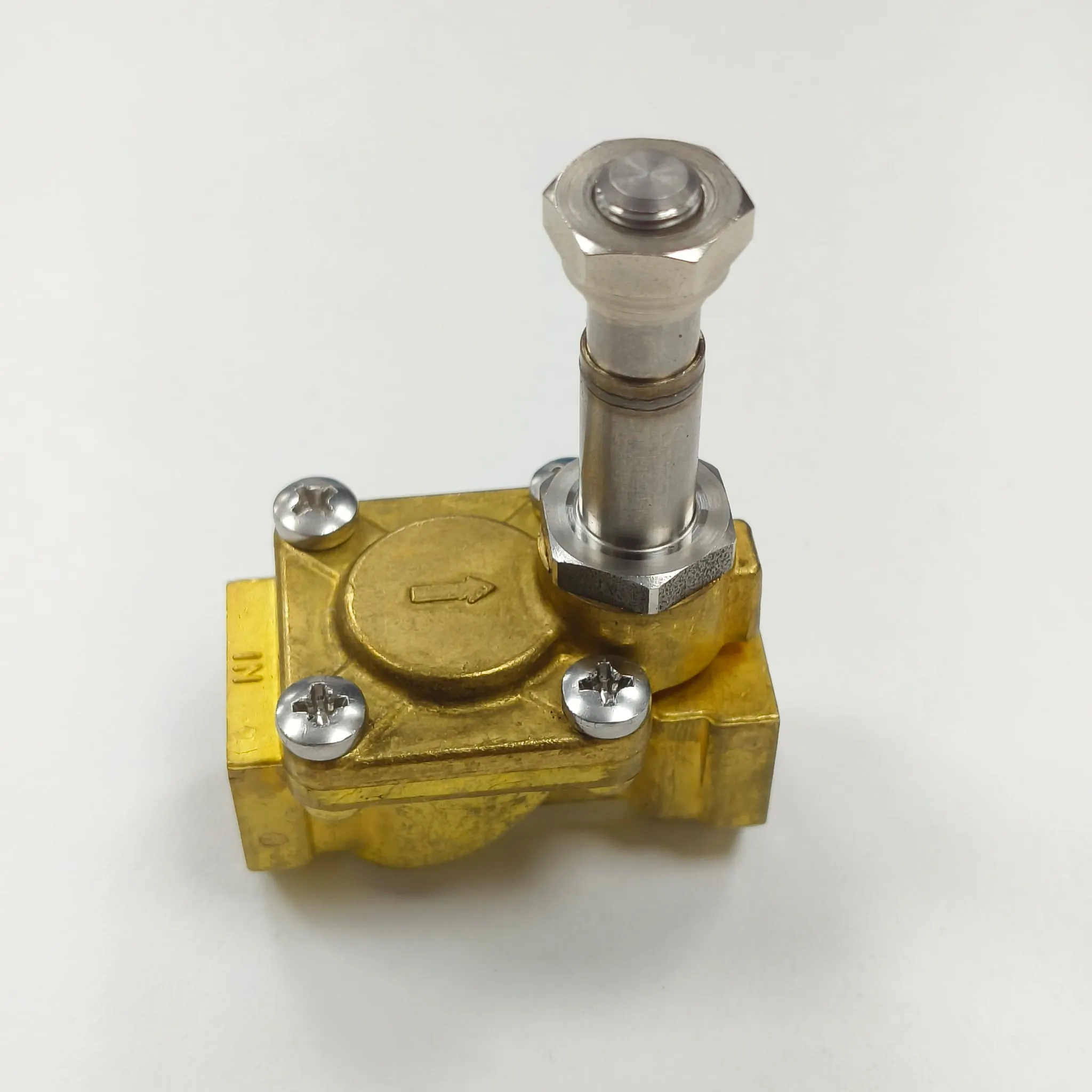

ACL 107 Series Brass Solenoid Valve, Servo-Assisted Diaphragm, 2-Way Normally Closed, FPM (Viton) Seal, G 3/8" Female BSPP Connection, E107CV10/// - image 3

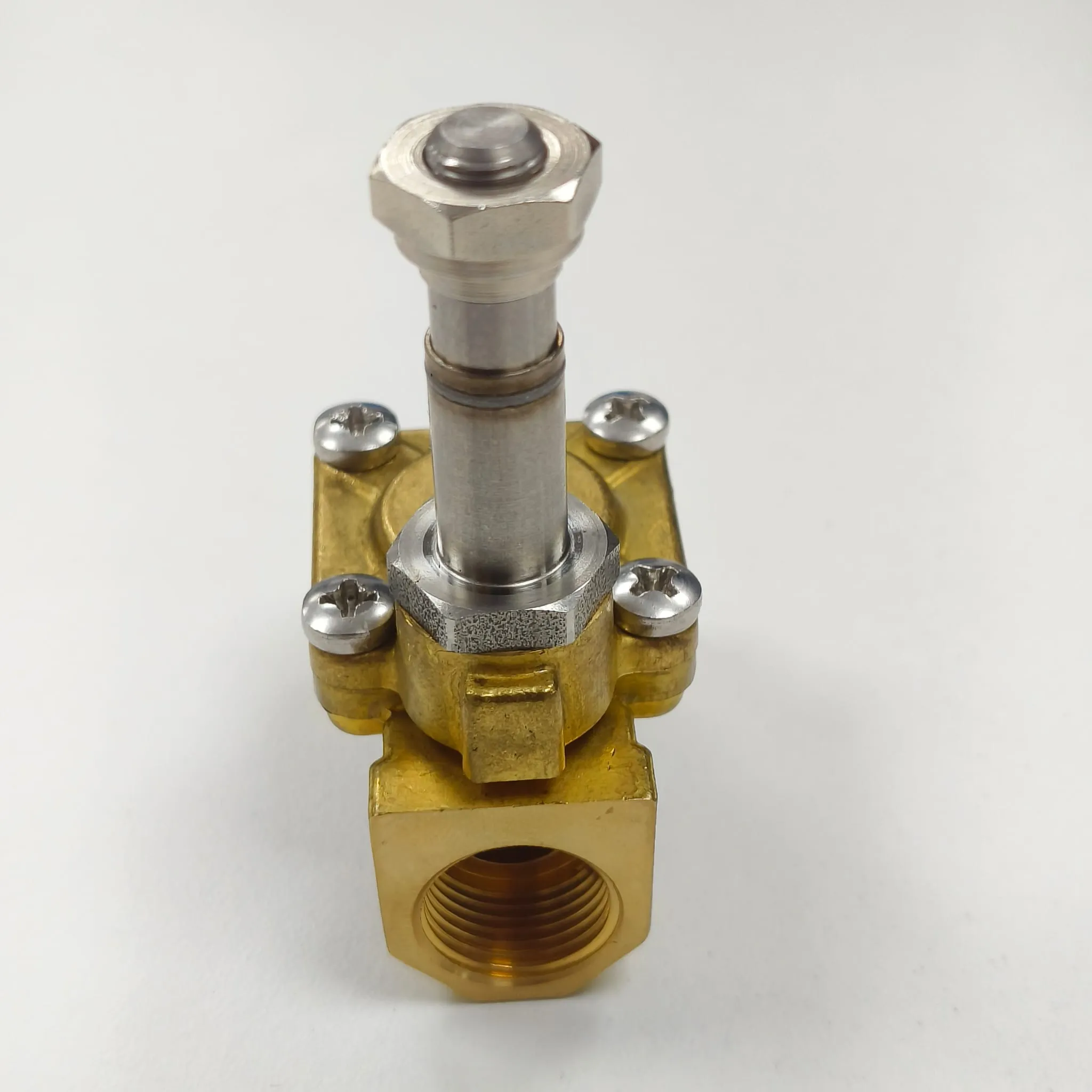

ACL 107 Series Brass Solenoid Valve, Servo-Assisted Diaphragm, 2-Way Normally Closed, FPM (Viton) Seal, G 3/8" Female BSPP Connection, E107CV10/// - image 4
ACL 107 Series Brass Solenoid Valve, Servo-Assisted Diaphragm, 2-Way Normally Closed, FPM (Viton) Seal, G 3/8" Female BSPP Connection, E107CV10///

Mfg. Part No. : E107CV12///

SKU : SOL-W-107V-06-15B-EU

Brand :
ACL

ACL 107 Series brass solenoid valves are servo-assisted diaphragm 2-way normally closed valves for automatic shut-off and flow control of air, water, light oil, gas, and other compatible media in machinery, utility lines, and industrial process systems.

This valve is supplied without a coil, and compatible coils are sold separately. Please use the link in the description below to select a suitable coil for your application.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all
Quantity
In Stock  ·  39 available
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

ACL E107CV12 — ACL 107 Series Brass Solenoid Valve, Servo-Assisted Diaphragm, 2-Way Normally Closed, FPM (Viton) Seal, G 3/8" Female BSPP Connection, E107CV10///. Stocked by Indspare for Kuwait and GCC delivery.

ACL 107 Series is a brass servo-assisted diaphragm solenoid valve with normally closed operation for automatic control of compatible fluids. This valve uses a G 3/8" female BSPP threaded connection and a Viton (FPM) seal for suitable industrial service. It is intended for machinery, utility systems, water lines, air lines, and process applications where dependable on-off flow control is required. The servo-assisted diaphragm design provides the operating style used for this valve series and helps define its performance in the intended service conditions.

Select a Suitable Coil

This valve is supplied without a coil. Compatible coils are sold separately, allowing the correct voltage and frequency to be selected for the intended application. To add a suitable coil, please view available coil options.

Key Features

  • Servo-Assisted Diaphragm construction
  • 2-way normally closed operation
  • Brass valve body
  • Viton (FPM) seal material
  • G 3/8" female BSPP connection
  • Included: Operating & Installation Instructions paperwork inside the box.
  • Made in Italy.

Applications

  • Industrial machinery
  • Water and air service
  • Utility and process lines
  • General fluid control systems

Downloads

ACL 107 Series Valves Datasheet.pdf

pdf
Download

Specifications

Connection Size
G 3/8" ISO 228 (BSPP)
Valve Function
2-Way Normally Closed
Body Material
Brass
Seal Material
Viton (FPM)
Media Compatibility
Air, Water, Gas
Minimum Differential Pressure
0.15 bar
Maximum Pressure
15 bar
KV Value
1.7 m³/h
Ambient Temperature Range
-10°C to +140°C
Valve Type
Servo-Assisted Diaphragm
Orifice Size
10 mm
Armature And Spring
AISI 303 / AISI 302
Plunger And Core
AISI 430FR
Compatible Coil Series
Series 3
Series
107 Series
