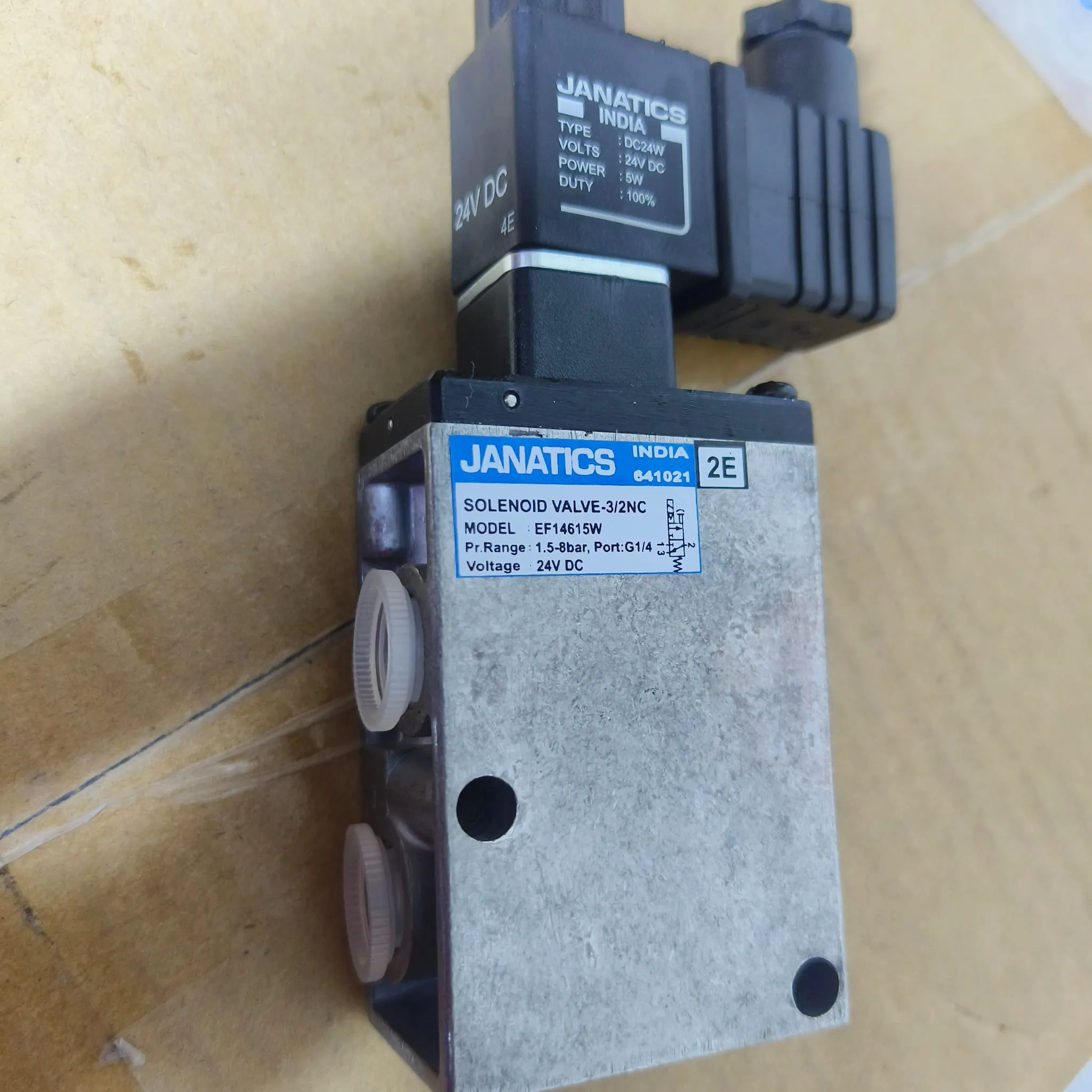

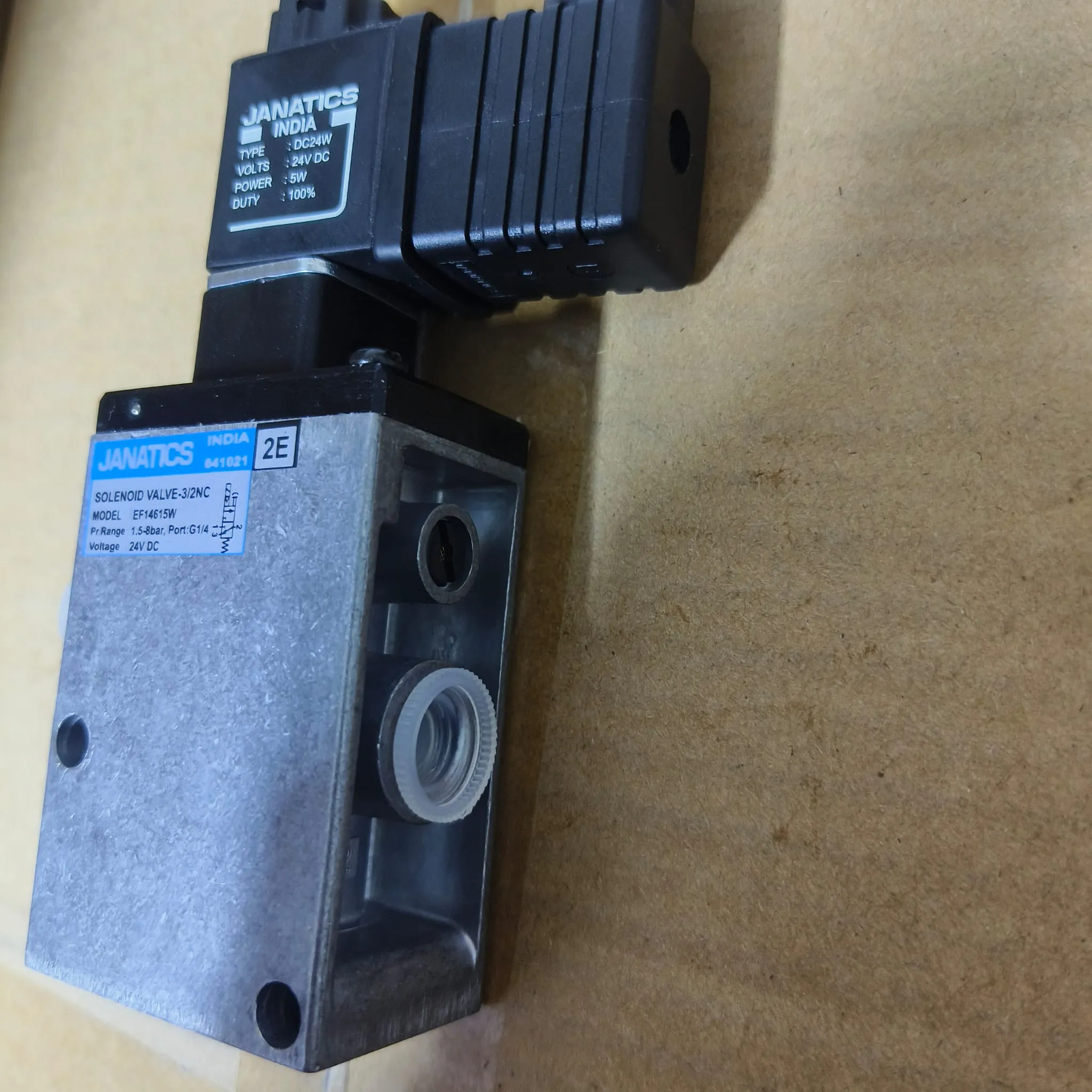

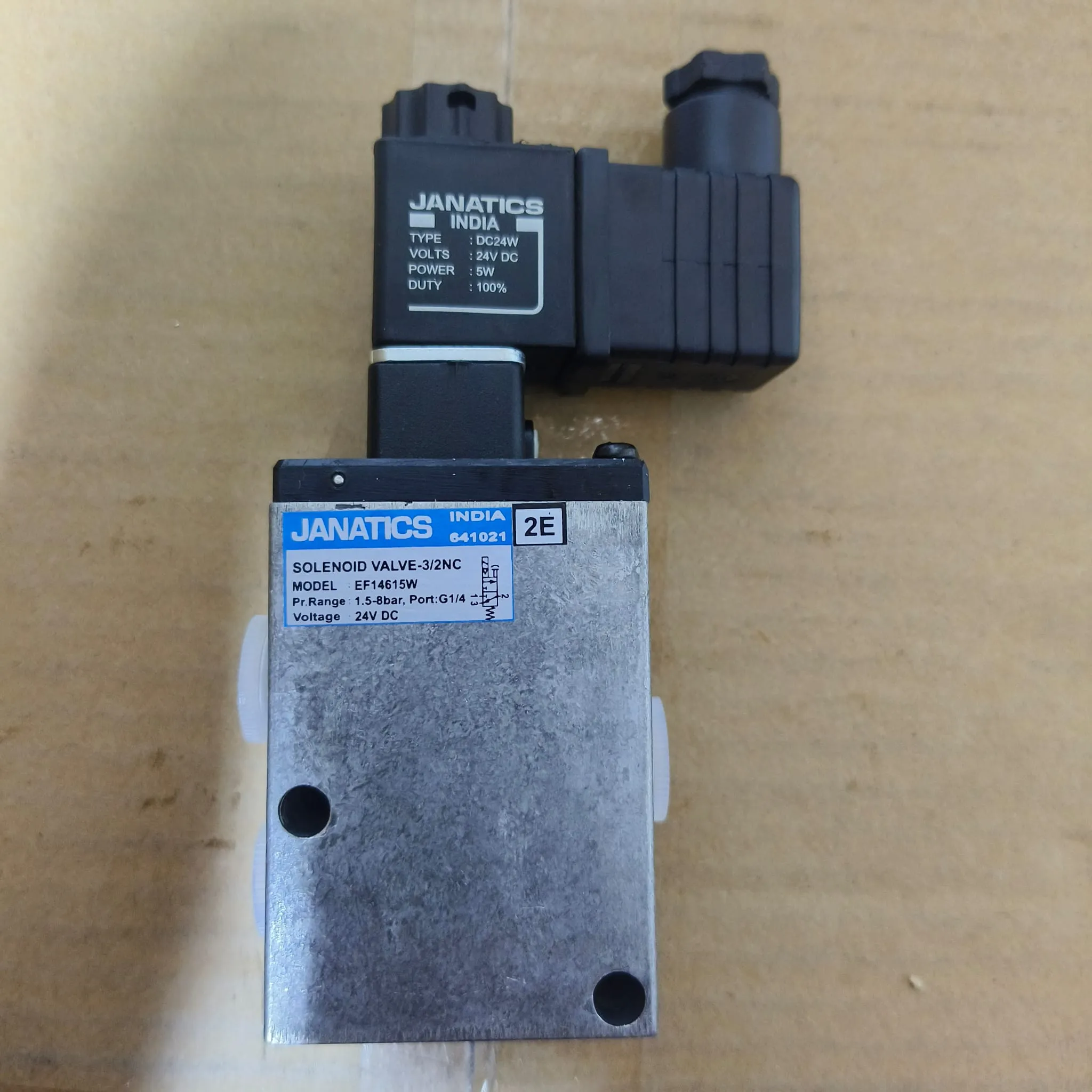

Janatics EF Series Poppet Type Pneumatic Solenoid Valve, 3/2 Way Normally Closed, G 1/4" Port, 24V DC Coil with Connector, EF14615W

The Janatics EF Series uses a compact, fast-acting poppet design for switching compressed air in industrial pneumatic circuits. This 3/2-way normally closed valve combines a pilot-operated poppet with a single 24 V DC solenoid rated at 5 W and spring return. The valve has G 1/4" connections, 1000 L/min nominal inlet-to-outlet flow and a 1.5 to 10 bar working pressure range, with a 6 mm valve orifice. The 24 V DC solenoid coil is supplied with a PG9 connector for wiring and installation. A push-and-turn locking manual override and IP65 coil protection help with commissioning, and the valve can be mounted individually or on a manifold. It is intended for dry, filtered compressed air in packaging, assembly, material-handling and general actuator-control systems.
