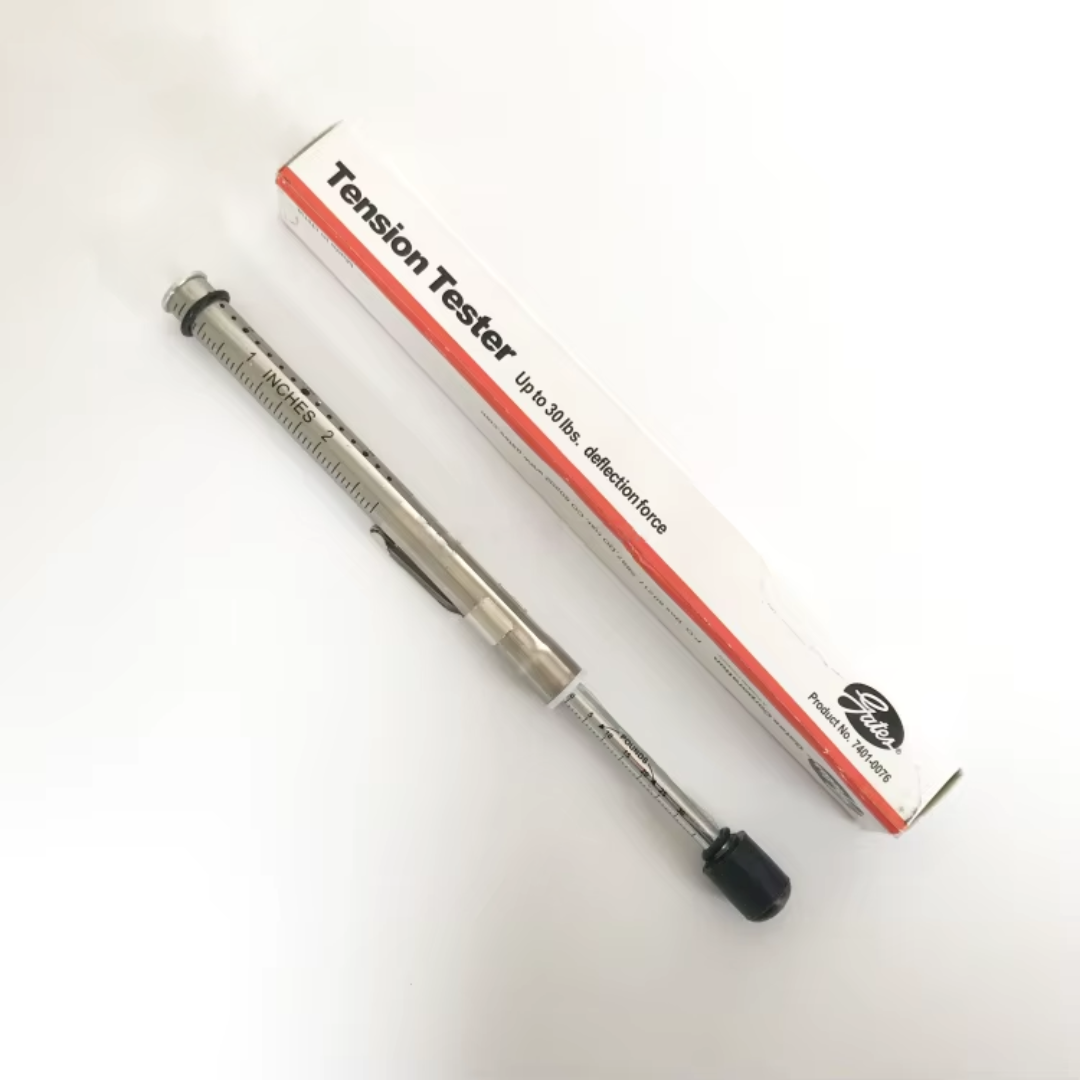

Gates Pencil Type Belt Tension Tester, 30 lb Maximum Deflection Force, 74010076
KWD 20.000
Lead time: 15 Days
Technical overview
Gates 7401-0076 is a single barrel pencil type force-deflection tension tester for checking small V-belts and synchronous belt drives during installation and maintenance. The manual gauge measures deflection force up to 30 lb, approximately 15 kg or 120 N. A sliding rubber O-ring moves along the force scale during belt deflection and remains in position so the measured force can be read clearly. Its compact single barrel construction is practical for smaller drive systems and routine preventive maintenance. Correct belt tension helps limit slippage, tooth jumping, premature wear and excessive load on drive components.
Key Features
- Measures belt deflection force up to 30 lb, approximately 15 kg or 120 N
- Single barrel pencil type construction suits compact belt drives
- Sliding rubber O-ring retains the force reading for clear inspection
- Manual operation requires no battery or external power
Applications
- Tension checking of small V-belt drives
- Inspection of synchronous belt systems
- Belt installation, commissioning and preventive maintenance
- Workshop and field servicing of compact power transmission drives
Specifications
Product TypeBelt Tension Tester
Maximum Deflection Force30 lb / 15 kg
ApplicationSmall V and Synchronous
Measurement MethodForce Deflection
