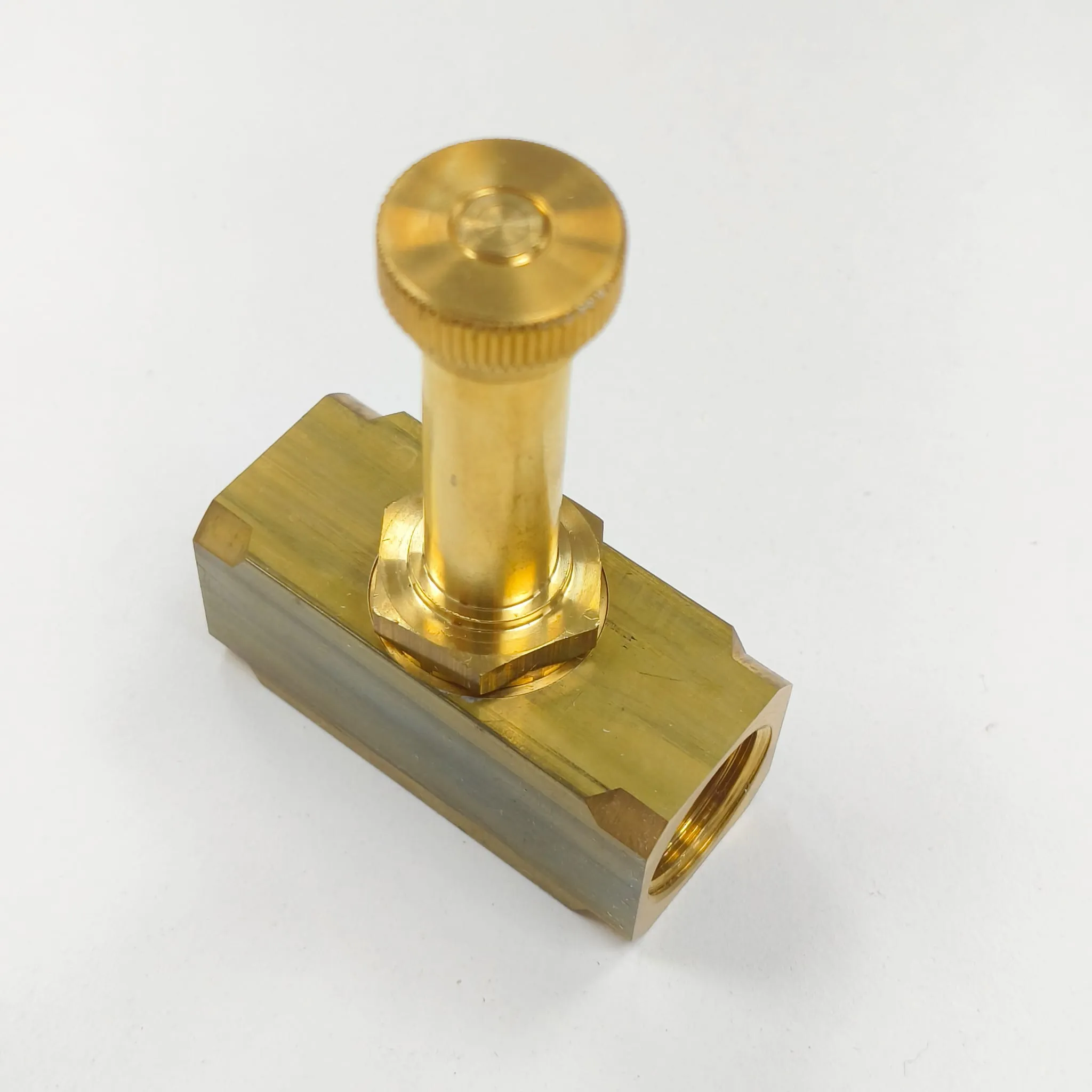

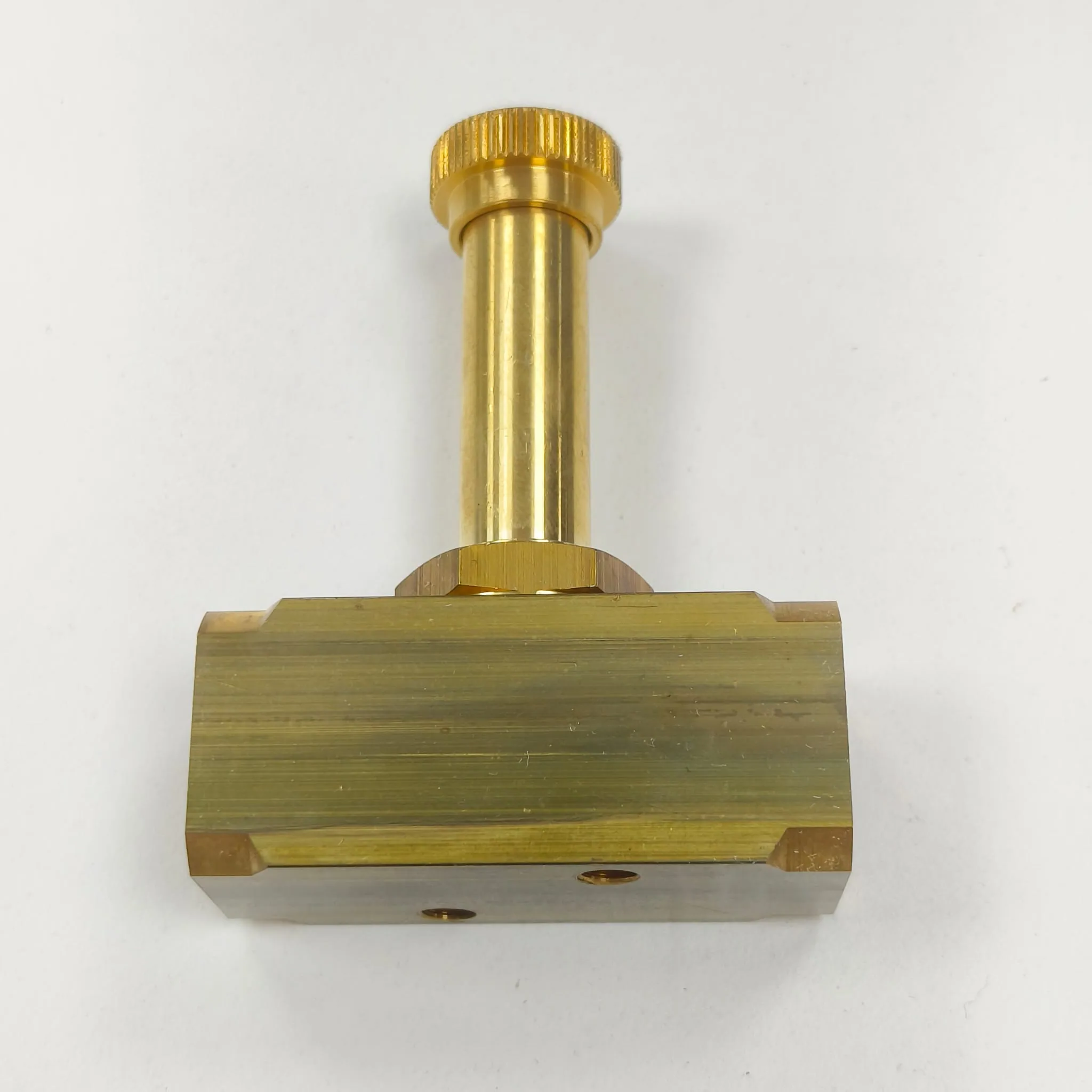

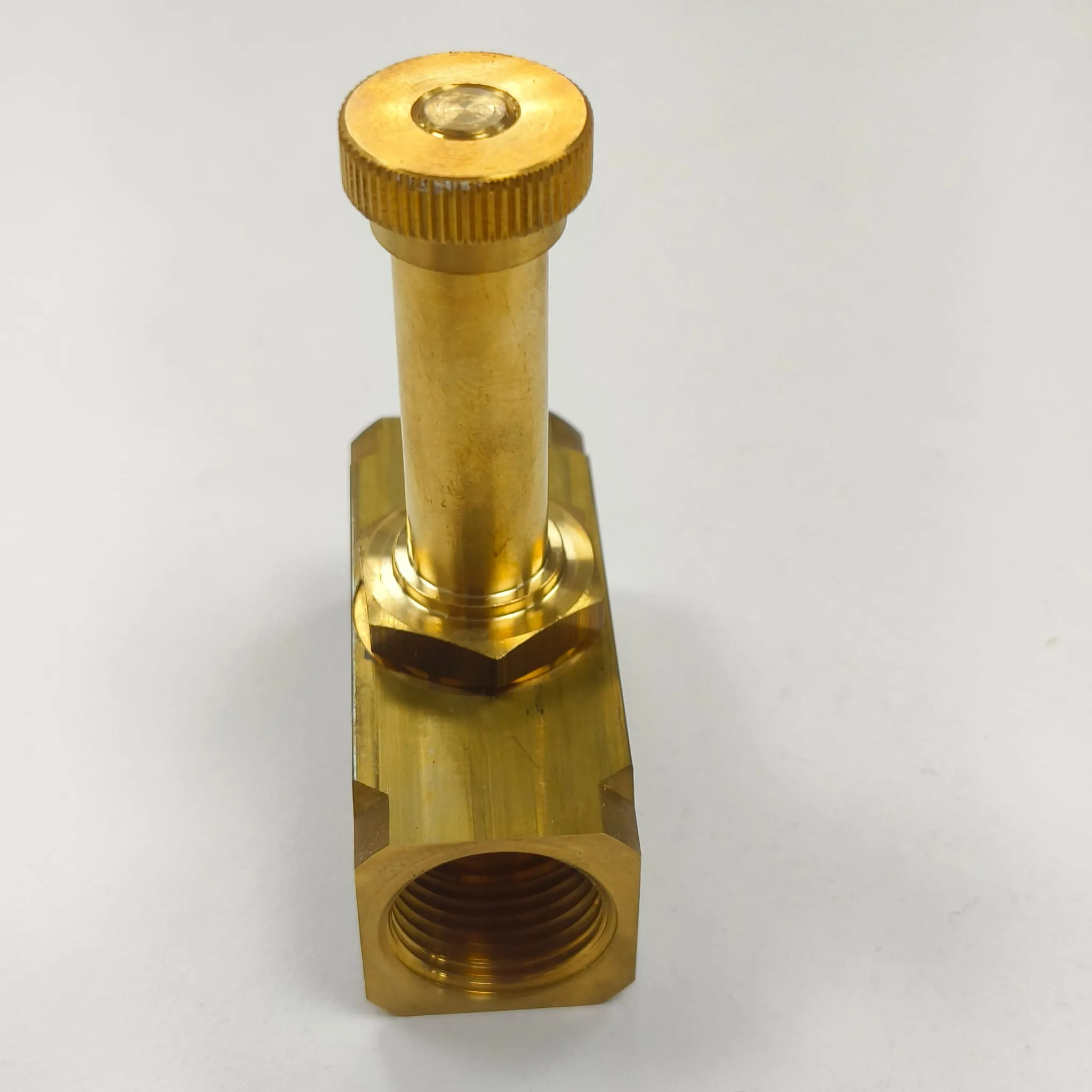

ACL 206 Series Brass Solenoid Valve, Direct Acting Poppet Type, 2-Way Normally Open, FPM (Viton) Seal, G 1/2" Female BSPP Connection, E206DV40
Technical overview
ACL 206 Series is a brass direct acting poppet type solenoid valve with normally open operation for automatic control of compatible fluids. This valve uses a G 2" female BSPP threaded connection and a Viton (FPM) seal for suitable industrial service. It is intended for machinery, utility systems, water lines, air lines, and process applications where dependable on-off flow control is required. The direct acting poppet type design provides the operating style used for this valve series and helps define its performance in the intended service Conditions.
Select a Suitable Coil
This valve is supplied without a coil. Compatible coils are sold separately, allowing the correct voltage and frequency to be selected for the intended application. To add a suitable coil, please view available coil options.
Key Features
- Direct Acting Poppet Type construction
- 2-way normally open operation
- Brass valve body
- Viton (FPM) seal material
- G 2" female BSPP connection
- Included: Operating & Installation Instructions paperwork inside the box.
- Made in Italy.
Applications
- Industrial machinery
- Water and air service
- Utility and process lines
- General fluid control systems
